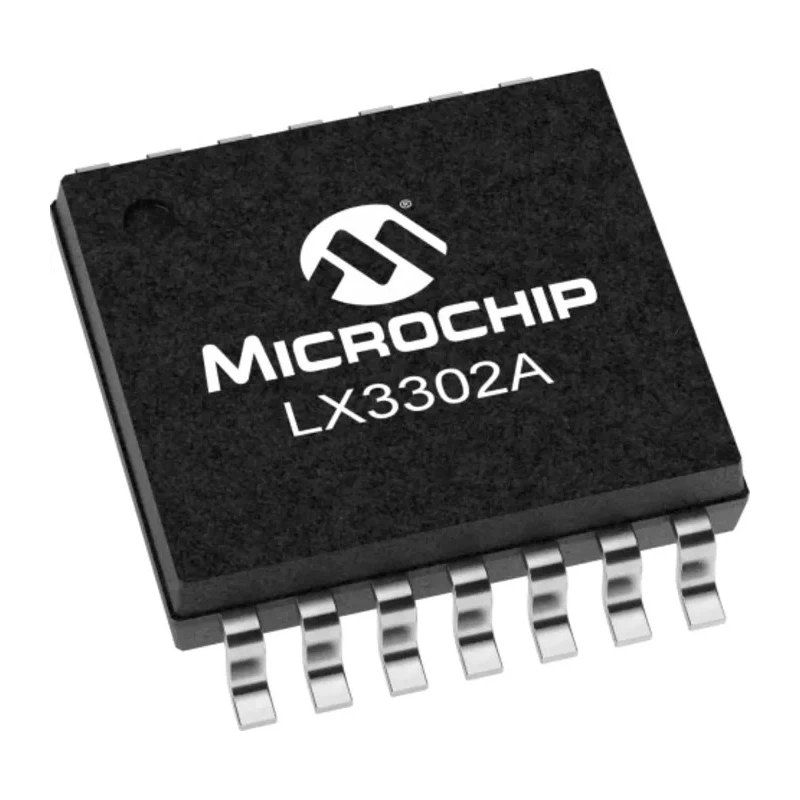

Microchip Proximity Sensor IC 4.5 V to 5.6 V Maximum 8mA Output Current 14 Pin TSSOP LX3302
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | LX3302 |
| Mount Type | Surface |
| Series | LX3302 |
| Maximum Operating Temperature | 150°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Maximum Output Current | 8mA |
| Maximum Output Voltage | 0.3V |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.6V |
| Minimum Supply Voltage | 4.5V |
Key Features
- Operates over a supply voltage range of 4.5 V to 5.6 V.
- Maximum output current rated at 8 mA.
- Low maximum output voltage of 0.3 V enables efficient interfacing.
- Surface mount device with 14 pins for compact design integration.
- Certified to AEC-Q100 automotive standard for reliability.
- Operating temperature range spans from -40°C up to 150°C.
- Includes SENT and PSI5 output interfaces for advanced communication.
- Programmable data conversion capability for accurate inductive sensing.
Product Description
Microchip LX3302 Proximity Sensor IC LX3302 is a highly integrated semiconductor designed for accurate inductive position sensing applications. This device operates reliably within a supply voltage range from 4.5 V to 5.6 V, providing an effective maximum output current of 8 mA and a low maximum output voltage of 0.3 V. It comes in a 14-pin TSSOP surface mount package that facilitates compact PCB assembly.
This Proximity Sensor IC performs advanced data conversion and is programmable to interface with inductive sensors that utilize PCB traces for highly accurate metal target detection. The design eliminates interference from stray magnetic fields and removes the need for external magnets common in other magnetic field sensor types.
Qualifying for the rigorous AEC-Q100 automotive standard and ISO26262 ASIL B support, the LX3302 device is suitable for automotive and industrial applications requiring robust and fail-safe sensor operation. Its wide operating temperature range from -40°C to 150°C ensures suitability under extreme environmental conditions.
The LX3302 also offers SENT and PSI5 output interfaces for streamlined integration into modern automotive sensor systems. Its sophisticated capabilities enable precise position sensing in manufacturing, automotive, and industrial automation sectors.
Operates between 4.5 V and 5.6 V supply voltage. Maximum output current of 8 mA with output voltage up to 0.3 V. 14-pin TSSOP surface mount package for space-saving circuit design. Meets automotive AEC-Q100 Grade 0 certification for quality and reliability.
Wide operating temperature range of -40°C to 150°C for harsh environments. Programmable and highly integrated for inductive position sensing use cases. Includes SENT and PSI5 output signal protocols ensuring compatibility.
Designed to detect metal targets with immunity to magnetic interference. Supports ISO26262 ASIL B functional safety requirements for automotive applications. Ideal for electronic components manufacturing, automotive sensor arrays, and industrial controls.
Explore more advanced semiconductor sensor ICs and proximity solutions on EnvMart to support your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LX3302 operates over a supply voltage range of 4.5 V to 5.6 V.
It has a maximum output current rated at 8 mA.
The maximum output voltage is 0.3 V, which enables efficient interfacing.
This model comes in a 14-pin TSSOP surface mount package, facilitating compact design integration.
The operating temperature range spans from -40°C to 150°C, making it suitable for extreme environmental conditions.
It is certified to the AEC-Q100 automotive standard for reliability.
The LX3302 includes SENT and PSI5 output interfaces for advanced communication.
Yes, it qualifies for ISO26262 ASIL B support, making it suitable for automotive applications requiring robust sensor operation.
This model is intended for inductive position sensing in manufacturing, automotive, and industrial automation sectors.
The low maximum output voltage of 0.3 V enables efficient interfacing with other components in the system.
It is designed to eliminate interference from stray magnetic fields, enhancing its capability to detect metal targets accurately.
The country of origin for the LX3302 is India.
