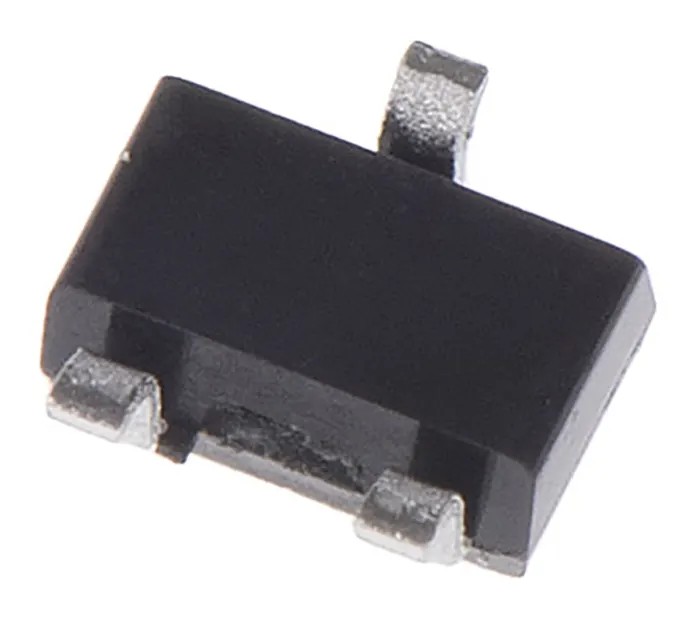

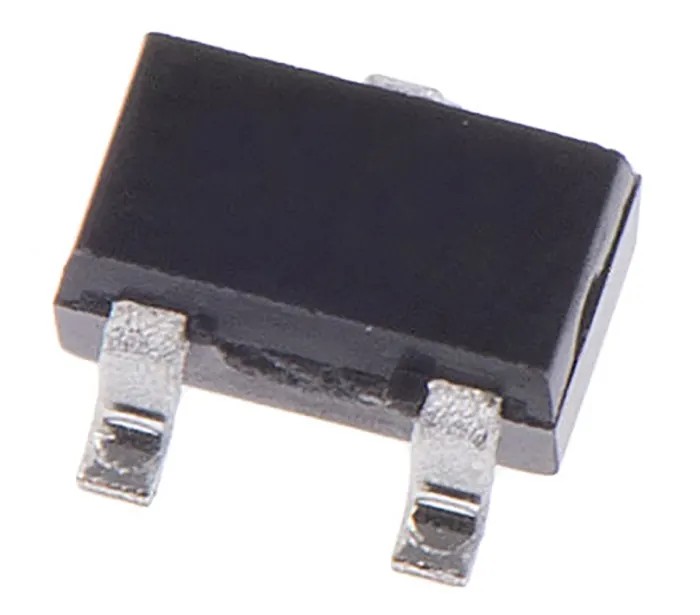

Nexperia Digital Transistor NPN 100 mA 50 V 3-Pin UMT PDTC143ZU,115

Nexperia PDTC143ZU,115 is a digital NPN transistor designed for discrete semiconductor applications, rated for 100 mA maximum DC collector current and 50 V maximum collector-emitter voltage with a single transistor configuration in a 3-pin UMT surface mount package.

This dual resistor-equipped bipolar transistor allows direct interfacing with digital signals without additional external resistors, ideal for switching and amplification tasks in electronic circuits. Its enhanced current gain minimum of 100 and collector-base voltage support of 50 V enable efficient signal control with low power dissipation of 200 mW.

The device's small footprint, measuring 2.2 mm in length, 1.35 mm in width, and 1 mm in height, supports high-density PCB assembly using automated surface mounting techniques. It operates reliably within a wide temperature range from -65°C up to 150°C, suitable for industrial and consumer electronic applications requiring durability and thermal stability.

Nexperia's transistor also features a transition frequency of 230 MHz, facilitating use in moderate frequency amplification and switching circuits. It complies with RoHS regulations, ensuring environmental safety during manufacturing and use.

Manufactured in Malaysia, this product is commonly used in industrial, laboratory, and electronic manufacturing environments where high-performance, low-power digital transistors are required for switching and signal amplification.

The device integrates dual resistors, facilitating direct drive from digital sources. Maximum power dissipation is 200 mW, suitable for low-power applications. Features a gain (hFE) minimum of 100 ensuring reliable amplification.

Supports high-frequency operation up to 230 MHz transition frequency (ft). The compact package size measures 2.2 mm length, 1.35 mm width, and 1 mm height. Operating temperature range spans from -65°C to 150°C for broad environmental tolerance.

Surface mountable package type allows automated assembly and efficient PCB layouts. Complies with RoHS environmental standards. Designed and manufactured in Malaysia, ensuring quality and consistency. Explore more semiconductor and transistor products to meet your industrial design and manufacturing needs at EnvMart.
