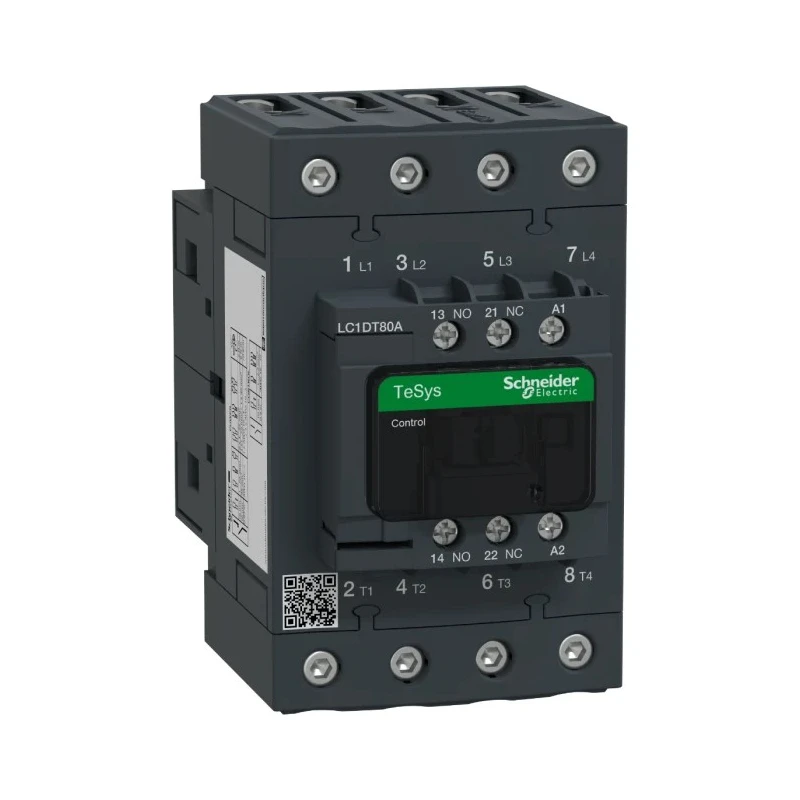

Schneider Electric TeSyS D 4-Pole 80A Motor Control Contactor with 110V AC Coil LC1DT80AF7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1DT80AF7 |
| Depth | 120mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.8W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a durable 110V AC coil designed for efficient motor control.
- Includes 4 poles with normally open contacts providing reliable switching.
- Rated for a contact current of 80 amperes ensuring high load capacity.
- Compact DIN rail mount design facilitating easy installation and space savings.
- Built-in auxiliary contacts with 1 normally open and 1 normally closed configuration for flexible control options.
- Suitable for environments with operating temperatures ranging from -5°C to 60°C.
- Features screw clamp terminals for secure electrical connections.
- Multi-standard certified including UL, CSA, IEC, CCC, EAC, and RoHS compliance.
Product Description
Schneider Electric LC1DT80AF7 is a high-performance TeSyS D series contactor designed for motor control and resistive load switching applications. It features a 110V AC coil enabling efficient coil operation compatible with 50/60 Hz power supply. The 4-pole configuration with normally open contacts supports reliable switching of loads up to 80A at 690V, suitable for non-inductive loads and motor starters.
This contactor incorporates a pair of auxiliary contacts (1 NO and 1 NC) that provide additional control circuit flexibility, with the normally closed contact being mirror contact certified for enhanced safety. The device is designed for DIN rail mounting or fixed screw installation, with compact dimensions measuring 122 mm length, 70 mm width, and 120 mm depth, making it ideal for limited space control cabinets.
Constructed with screw clamp terminals, the contactor ensures secure and maintenance-friendly wiring for both power and auxiliary circuits. It operates reliably in ambient temperatures from -5°C up to 60°C and supports operating rates up to 3600 cycles per hour, demonstrating robust durability and high performance.
Certified under multiple standards including UL, CSA, IEC, EAC, CCC, and Marine certifications, this contactor complies with industry safety and quality requirements. It is also RoHS and REACh compliant, aligning with sustainable environmental regulations.
Durable and compact 4-pole contactor for motor control. 110V AC coil voltage suited for industrial automation applications. 80A contact current rating for handling high-demand resistive loads. Auxiliary contacts with 1 NO and 1 NC configuration for control flexibility.
DIN rail or screw mounting for versatile installation. Wide operating temperature range from -5°C to 60°C. Multiple international certifications ensuring compliance and reliability. Designed for efficient motor starter integration and control systems.
Ideal for use in electrical panels for motor starters, power control, and signaling equipment, this Schneider Electric contactor enables safe and efficient automation solutions. Its compact size and versatile mounting options allow it to be integrated into a range of industrial applications including manufacturing, HVAC systems, and commercial machinery.
Explore more products in the Contactors category for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a contact current rating of 80A, allowing it to handle high-demand resistive loads.
This model operates with a coil voltage of 110V AC, making it suitable for standard industrial applications.
The maximum operating temperature for this unit is 60°C, ensuring reliable performance in various environments.
It features a DIN rail mount design, allowing for easy installation and space-saving in control cabinets.
The dimensions of this model are 122 mm in length, 70 mm in width, and 120 mm in depth.
It is equipped with screw clamp terminals, which provide secure and maintenance-friendly wiring for both power and auxiliary circuits.
This contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), offering additional control flexibility.
It is certified under multiple standards including UL, CSA, IEC, EAC, CCC, and is RoHS compliant, ensuring adherence to safety and quality requirements.
The operational current for the LC1DT80AF7 is rated at 80A, suitable for both motor control and resistive load applications.
The primary function of this model is for motor control and switching of resistive loads in industrial automation applications.
The minimum operating temperature is -5°C, allowing it to function effectively in colder environments.
This contactor has a power rating of 5.8W, which is necessary for its coil operation.
