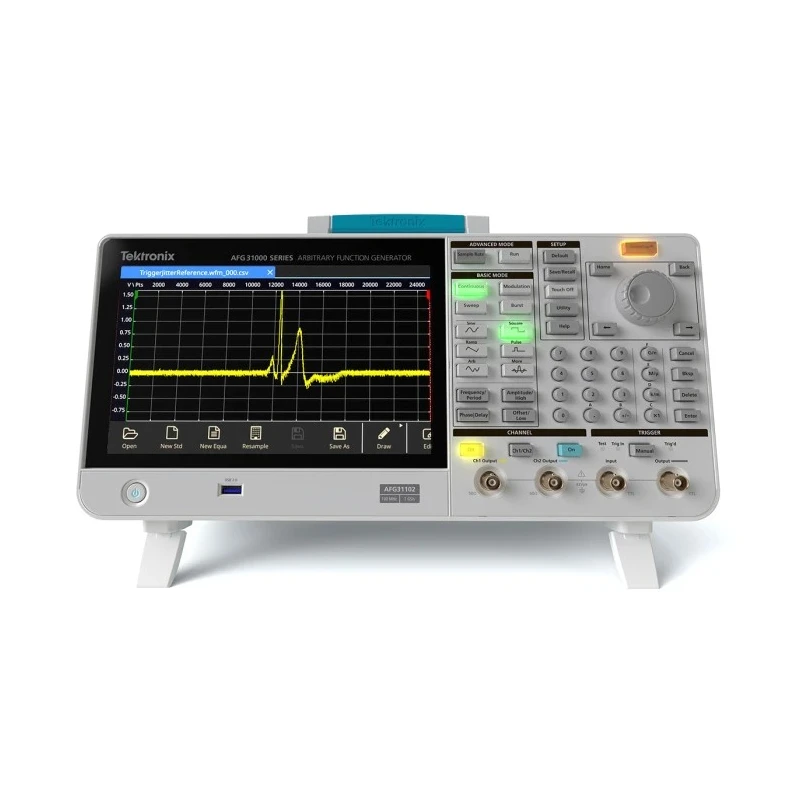

Tektronix Arbitrary Function Generator 2-Channel 100 MHz Max, 1 Hz Min, Touch Screen AFG31102

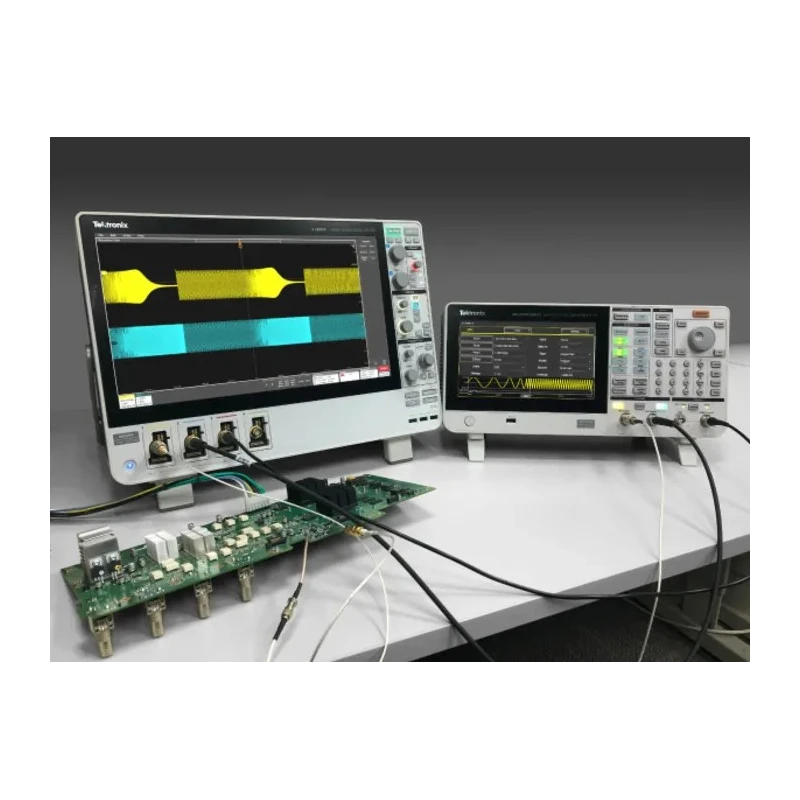

Tektronix AFG31102 Arbitrary Function Generator is a high-performance instrument designed for industrial and laboratory use, featuring a maximum frequency of 100 MHz and a minimum frequency of 1 Hz. It incorporates patented InstaView™ technology that allows engineers to visually monitor waveforms on the Device Under Test (DUT) in real time, eliminating the need for additional oscilloscopes or probes and reducing measurement uncertainty.

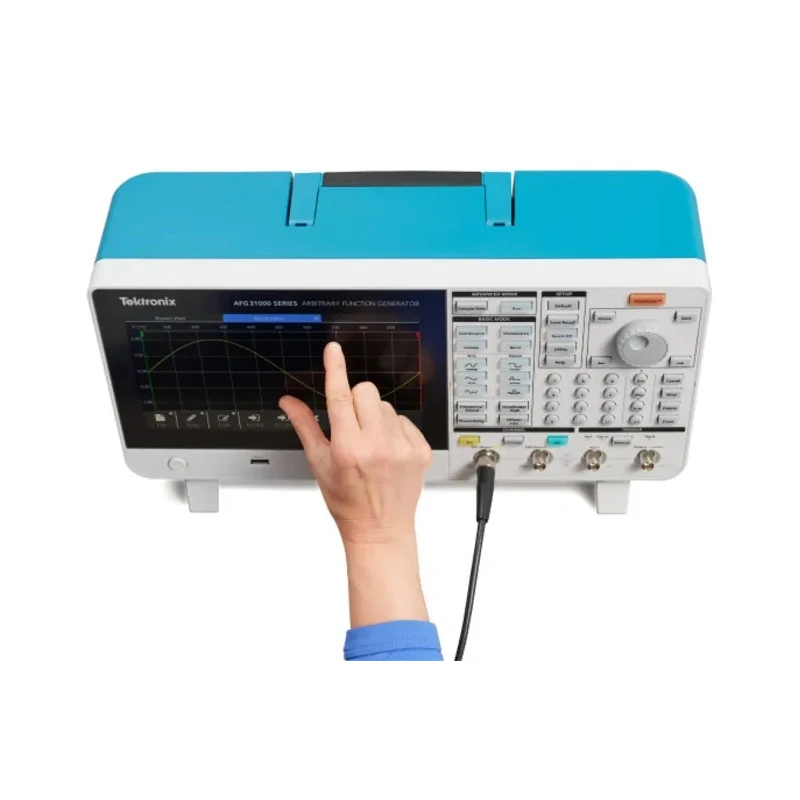

The 9-inch capacitive touch screen delivers an intuitive user experience similar to a smartphone, enabling pinch, zoom, and scroll functionality to easily configure waveform settings and access shortcuts to frequently used parameters. With two independent channels, the generator supports simultaneous output for complex testing applications.

This model offers a broad output amplitude range from 1 mVpp to 10 Vpp into 50 Ω loads, suitable for a variety of signal testing scenarios. It supports numerous waveform types such as sine, square, ramp, pulse, and noise, enhancing versatility in signal generation tasks.

Additional features include a sequencing option allowing the creation of long and complex waveform sequences of up to 256 programmable steps, and a built-in ArbBuilder application that lets users create and edit arbitrary waveforms directly on the instrument, eliminating the need for a PC connection.

Protection circuits safeguard the outputs against over voltage and current, minimizing the risk of instrument damage during operation. Sampling rates reach up to 250 MSa/s with a 14-bit vertical resolution to ensure high precision waveform reproduction with low distortion.

Operating reliably in ambient temperatures from 0°C to 50°C, the AFG31102 is suited for demanding industrial, manufacturing, laboratory testing, and research environments. It is manufactured in China and weighs 4.7 kg with compact dimensions of 412.8 mm length, 143.3 mm width, and 191.8 mm height.

Advanced InstaView™ display enables real-time waveform observation without an oscilloscope. Touch interface provides ease of use and fast navigation of complex configurations. Dual-channel outputs allow simultaneous generation of different waveforms.

Supports built-in function waveforms and custom arbitrary waveforms. Robust output protection enhances instrument longevity and reliability. Sequencing and ArbBuilder features facilitate extensive signal programming. High sampling rate and 14-bit resolution ensure precise waveform fidelity.

Wide operating temperature range for stable industrial performance. Compact form factor and moderate weight for easy integration on test benches. Explore the Tektronix brand and Function Generator category for advanced signal generation solutions at EnvMart.
