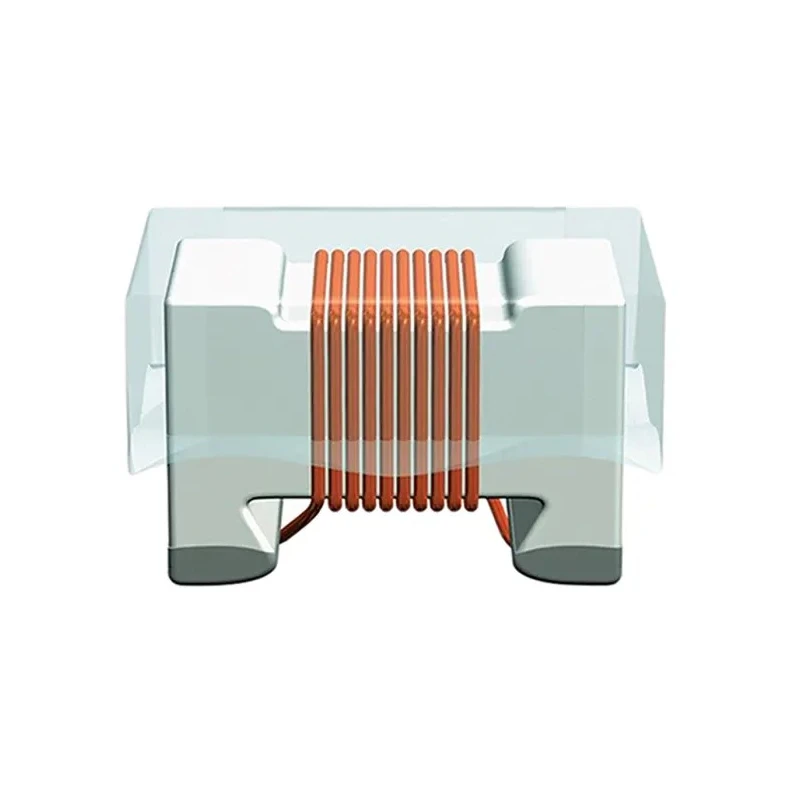

TDK SIMID 0805 Wirewound Surface Mount Inductor, Ceramic Core, 680 nH ±5% Inductance, 190 mA Max DC Current B82498F3681J000

TDK B82498F3681J000 SIMID Series 0805 Wirewound Surface Mount Inductor offers precise inductance of 680 nH ±5% with a ceramic core, engineered for electronics manufacturing and assembly. This component is designed for reliable operation in a wide temperature range from -55°C to 125°C, meeting stringent automotive AEC-Q200 standards for quality and durability.

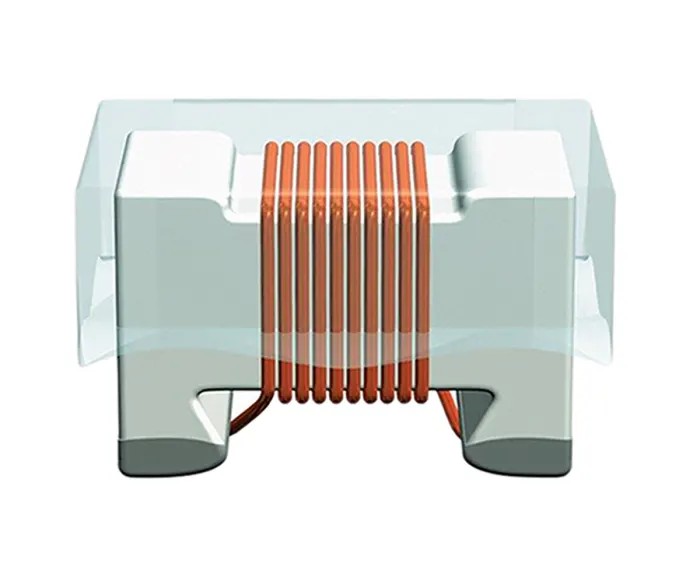

The inductor features a compact surface mount 0805 package with dimensions of 2.3 mm length, 1.7 mm depth, and 1.4 mm height, making it ideal for dense PCB layouts. Constructed with a wirewound coil and epoxy moulded flat top, it ensures high quality factor (Q=23) and a maximum self-resonant frequency of 300 MHz, supporting efficient signal filtering and energy storage in electronic circuits.

This inductor is rated at a maximum DC current of 190 mA and has a low maximum DC resistance of 1.7 Ω, making it suitable for low to moderate current applications in industrial, automotive, and consumer electronics. It complies fully with RoHS environmental requirements, ensuring sustainable production practices.

Packaging is supplied in tape and reel format, optimized for pick-and-place assembly machines, supporting high-volume manufacturing efficiency. TDK’s SIMID series inductors are engineered with a ceramic core for stability and reliability in demanding operating conditions.

Use cases include power management, filtering, signal processing, and impedance matching in automotive electronics, industrial controls, telecommunication devices, and consumer electronic products. The compact design and high performance make it a trusted choice for robust electronic applications.

Constructed with a ceramic core and wirewound design ensuring high quality and stability. Rated for a maximum DC current of 190 mA suitable for low power circuits. Compact 0805 package with dimensions 2.3 x 1.7 x 1.45 mm for PCB surface mounting.

Supports operating temperatures from -55°C to 125°C to withstand harsh environments. Features a high-quality factor of 23 and a maximum self-resonant frequency of 300 MHz for efficient performance. Complies with RoHS standards and Automotive AEC-Q200 certification for automotive applications.

Epoxy moulded flat top design allows vacuum pick-up for automated assembly processes. Packaging available in tape and reel format for industrial manufacturing lines.
