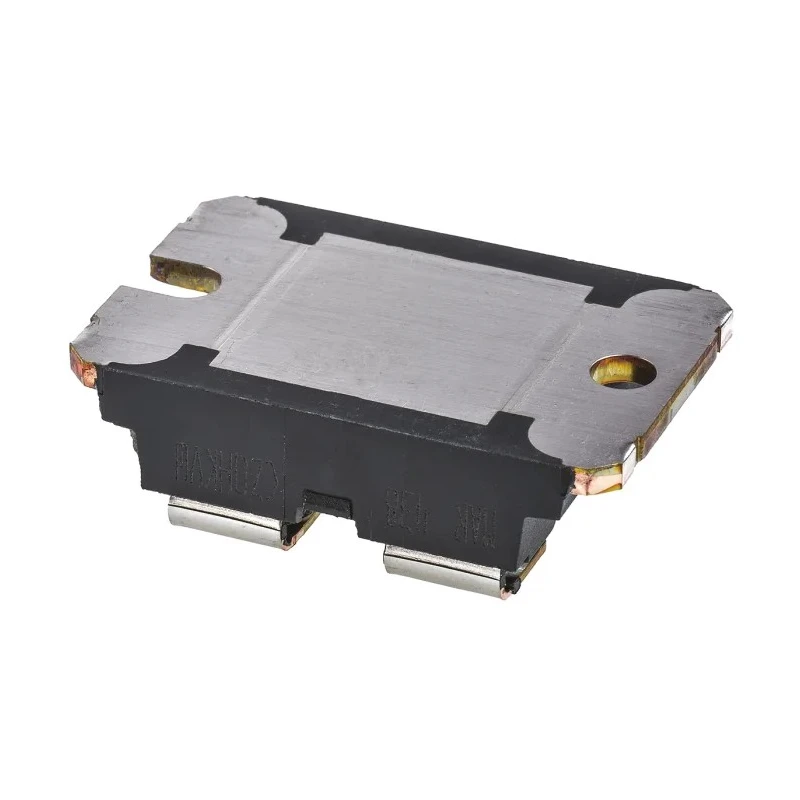

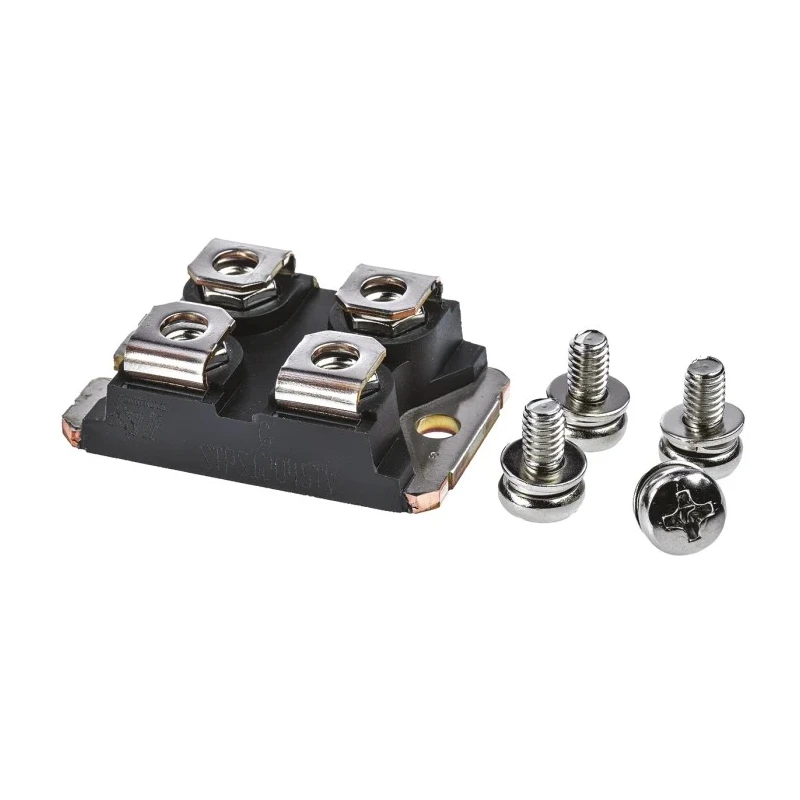

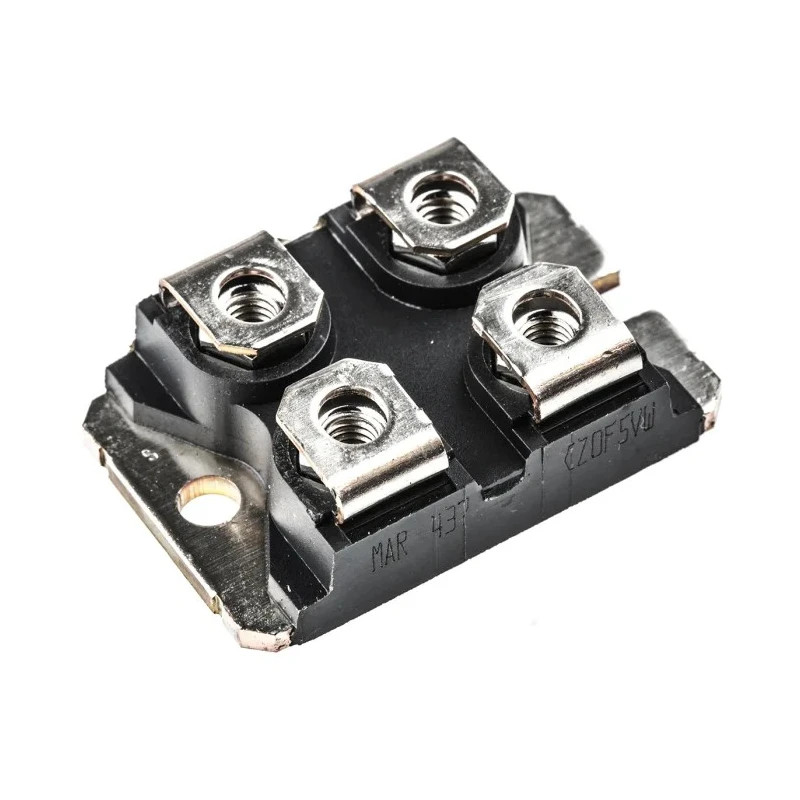

STMicroelectronics 45 V 120 A Schottky Diode 4-Pin ISOTOP Package STPS12045TV
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STPS12045TV |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STPS12045TV |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Isolated |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 900A |
| Maximum Forward Voltage Vf | 670mV |
| - Capacitance | 45 pF |
| IXYS 45V 120A, Dual Schottky Diode, 4-Pin SOT-227B DSS2X61-0045ABrand | IXYS |
| IXYS 100 V 80 A Schottky Diode Schottky 4-Pin SOT-227 DSS2X41-01ABrand | IXYS |
Key Features
- Maximum continuous forward current of 120 amperes suitable for high current applications.
- Peak reverse repetitive voltage rating of 45 volts ensures reliable blocking capability.
- Low forward voltage drop of 670 millivolts reduces power losses during conduction.
- Insulated ISOTOP package provides 2500 VRMS insulation and low capacitance of 45 pF.
- Wide operating temperature range from -55°C to 150°C for robust industrial use.
- High peak non-repetitive forward surge current of 900 amperes accommodates transient overloads.
- Schottky type rectifier optimized for high frequency switching power supplies.
- Isolated diode configuration with 4-pin arrangement enhances design flexibility.
Product Description
STMicroelectronics STPS12045TV is a high-performance 45 V, 120 A Schottky diode housed in a 4-pin insulated ISOTOP package. Designed for secondary rectification in high frequency switched mode power supplies, this diode offers negligible switching losses and a good balance between forward voltage drop and leakage current.
The diode supports a maximum continuous forward current of 120 A and a peak non-repetitive forward surge current up to 900 A, making it suitable for demanding power supply and industrial applications. Its insulated ISOTOP package is rated for 2500 VRMS insulation and has low capacitance of 45 pF, facilitating stable operation in electrically noisy environments.
Operating temperature ranges from -55°C to +150°C, ensuring reliability in various conditions. The diode features a low forward voltage drop of 670 mV and peak reverse repetitive voltage of 45 V. Its isolated configuration and 4-pin interface offer design versatility for engineers.
Typical applications include power management in industrial power supplies, automotive electronics (non-certified), telecommunications, and variable speed drives. Maximum continuous forward current: 120 A. Peak reverse repetitive voltage: 45 V.
Forward voltage drop: 670 mV. Peak surge current: 900 A. Insulated ISOTOP package with 2500 VRMS rating. Operating temperature from -55°C to 150°C. Low leakage current and negligible switching losses. Capacitance: 45 pF.
Length 38.2 mm, width 25.5 mm, height 9.1 mm. 4-pin isolated diode configuration. Explore more Schottky diodes and power electronics components at EnvMart, your trusted source for industrial-grade semiconductor parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 120 A, making it suitable for high current applications.
The peak reverse repetitive voltage rating is 45 V, ensuring reliable blocking capability in various applications.
This model features a low forward voltage drop of 670 mV, which helps reduce power losses during conduction.
The peak non-repetitive forward surge current can reach up to 900 A, accommodating transient overloads effectively.
The dimensions of this diode are 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height.
It operates effectively within a temperature range of -55°C to +150°C, suitable for robust industrial use.
This diode is housed in a 4-pin insulated ISOTOP package, providing 2500 VRMS insulation.
The capacitance of the STPS12045TV is 45 pF, which contributes to stable operation in electrically noisy environments.
It features an isolated diode configuration with a 4-pin arrangement, enhancing design flexibility for engineers.
Typical applications include power management in industrial power supplies, automotive electronics, telecommunications, and variable speed drives.
The maximum forward voltage rating is 670 mV, which is beneficial for minimizing conduction losses.
The peak reverse current for this model is 1 mA, indicating low leakage current during operation.
