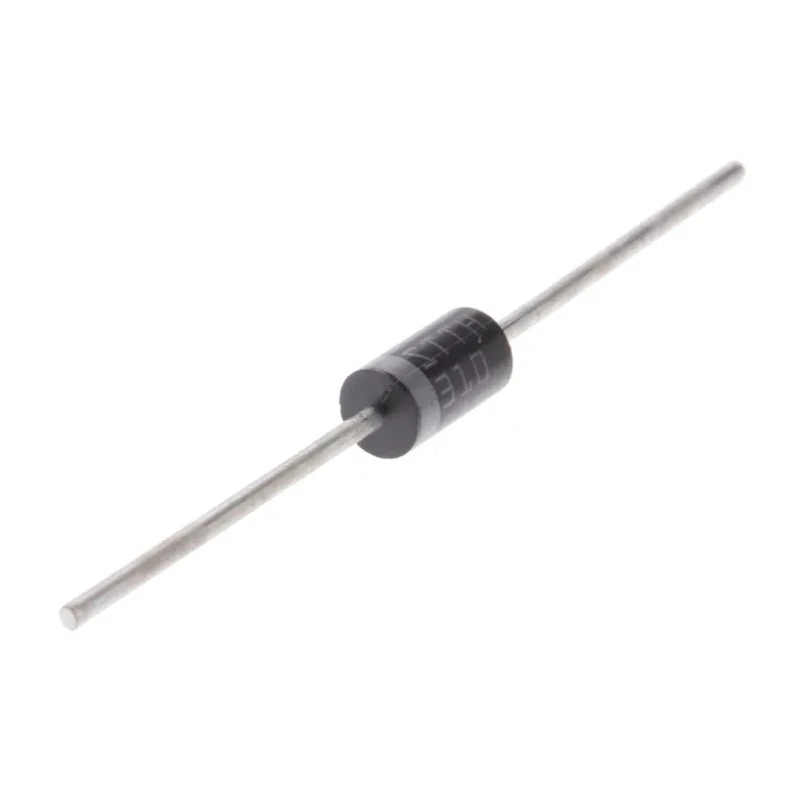

STMicroelectronics Diode Switching 2-Pin DO-201AD 1 kV 3 A STTH310
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | STTH310 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | STTH310 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 55A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Through Hole mount type offers reliable mechanical and electrical connectivity.
- Package Type is DO-201AD ensuring compatibility with standard diode holders.
- Peak Non-Repetitive Forward Surge Current up to 55 A for transient load handling.
- Maximum Forward Voltage is 1.7 V optimizing power efficiency in circuits.
- Wide operating temperature range from -65°C to 175°C enhances durability.
- Peak Reverse Recovery Time of 75 ns allows fast switching performance.
- RoHS compliant ensuring environmental safety standards.
- Pin count is 2 for simple circuit integration.
Product Description
STMicroelectronics STTH310 is a robust diode switching device with a 2-pin DO-201AD package designed for through-hole mounting. It supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 1 kV, making it ideal for switching and rectification applications in electronic circuits.
Constructed to withstand a wide temperature range from -65°C to 175°C, this diode ensures reliable performance in demanding environments commonly found in industrial, manufacturing, and power electronics systems.
The device features a peak non-repetitive forward surge current of 55 A, suitable for managing transient current spikes, and a maximum forward voltage drop of 1.7 V that optimizes power loss.
Its compact dimensions (length 9.5 mm, diameter 5.3 mm) and low peak reverse current of 10 μA contribute to efficient circuit design and minimal leakage. With a peak reverse recovery time of 75 ns, it supports fast switching speeds required in switching power supplies and high-speed rectification.
This product complies with RoHS environmental standards, ensuring minimal environmental impact and safe use. Through Hole mount type offers reliable mechanical and electrical connectivity. Package Type is DO-201AD ensuring compatibility with standard diode holders.
Peak Non-Repetitive Forward Surge Current up to 55 A for transient load handling. Maximum Forward Voltage is 1.7 V optimizing power efficiency in circuits. Wide operating temperature range from -65°C to 175°C enhances durability.
Compact dimensions: length 9.5 mm, diameter 5.3 mm, width 5.3 mm, height 5.3 mm. Peak Reverse Recovery Time of 75 ns allows fast switching performance. RoHS compliant ensuring environmental safety standards. Pin count is 2 for simple circuit integration.
Maximum peak reverse current of 10 μA minimizes leakage in high-voltage applications.
Ideal for industrial electronics, power supply units, lighting controls, and various construction and manufacturing automation systems, the STTH310 diode from STMicroelectronics combines efficiency with reliability.
Browse the Semiconductor & Diodes category on EnvMart for more advanced components for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
It has a peak reverse repetitive voltage rating of 1 kV.
This diode can handle a peak non-repetitive forward surge current of up to 55 A.
The maximum forward voltage drop for this diode is 1.7 V.
It operates within a temperature range from -65°C to 175°C.
The peak reverse recovery time is 75 ns, allowing for fast switching performance.
The dimensions are 9.5 mm in length and 5.3 mm in diameter, with a width and height of 5.3 mm.
This diode uses a through-hole mount type for installation.
The diode has 2 pins for circuit integration.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The STTH310 is configured as a single diode.
This diode is suitable for applications in industrial electronics, power supply units, and lighting controls.
