| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.33mm |
| Length | 0.6mm |
| Model | ESDZL5-1F4 |
| Width | 0.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | 0201 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 60W |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Ultra-low PCB area | 0.18 mm2 |

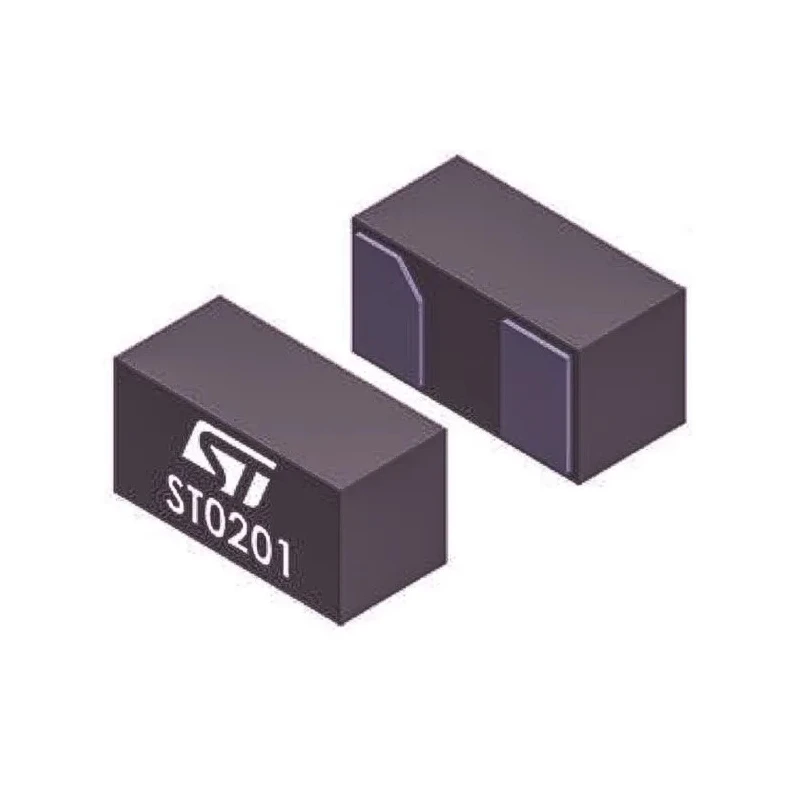

STMicroelectronics ESDZL5-1F4 is a uni-directional 1-element TVS diode designed to provide efficient electrostatic discharge (ESD) protection for sensitive data lines and input/output ports. This device combines a low clamping voltage of 10V with a high peak pulse power dissipation of 60W in a compact 2-pin 0201 surface mount package, minimizing board space usage with an ultra-low PCB area of 0.18 mm².
Operating across a broad temperature range from -55°C to 150°C and featuring a low leakage current of 100nA, it ensures reliable performance even in demanding industrial and commercial environments. The small form factor with dimensions 0.6 mm (length) x 0.3 mm (width) x 0.33 mm (height) makes it especially suitable for space-constrained applications.
This TVS diode is ideal for protecting electronic components in smartphones, audio accessories, set-top boxes, glucose meters, metering equipment, and home gateways. The device is designed to offer robustness and high clamping capability for effective overvoltage and transient suppression.
Featuring a uni-directional design with single-element configuration, it supports a peak pulse current of 7A and is surface mount compatible, facilitating easy integration into modern PCB manufacturing processes.
Applications span industrial, telecommunications, consumer electronics, and medical device sectors requiring compact, high-performance ESD protection solutions. Designed for ESD transient protection on data lines and I/O ports.
Ultra-low PCB area of 0.18 mm² enabling space-saving circuit designs. Low clamping voltage of 10V ensures efficient overvoltage protection. Operates within a wide temperature range from -55°C to 150°C. Features extremely low leakage current of 100nA for enhanced reliability.
Peak pulse current rating of 7A supports robust transient absorption. Compact dimensions of 0.6 mm length, 0.3 mm width, and 0.33 mm height. Uni-directional diode configuration suitable for single line protection. Surface mount type in industry-standard 0201 package.
Widely used in smartphones, audio accessories, set-top boxes, glucose meters, and home gateways. Explore a comprehensive range of semiconductor and TVS Diode solutions in EnvMart’s Electronics & Electricals category.
