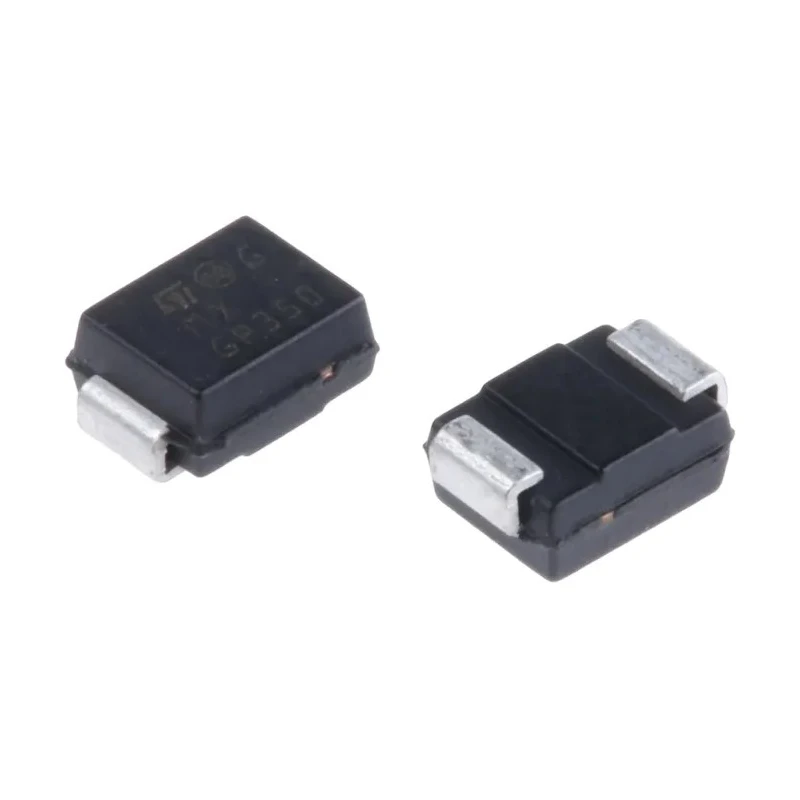

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W 2-Pin Surface Mount DO-214 SM6T39CA

The STMicroelectronics SM6T39CA is a high-performance 1-element bi-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes and transient surges. Encapsulated in a robust 2-pin DO-214 package suitable for surface mounting, it offers a peak pulse power dissipation of 600 W, ensuring strong transient absorption capability.

This diode operates efficiently within a temperature range of -55°C to 150°C, making it reliable for various industrial environments including automotive, telecom, and power electronics. The device features a minimum breakdown voltage of 37.1 volts and a maximum working voltage of 33.3 volts, providing stable and consistent protection levels. The clamping voltage of 69.7 volts limits energy spikes to safe levels, safeguarding connected circuitry.

With a compact and low-profile form factor measuring 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, the SM6T39CA is ideal for compact PCB designs. Its low reverse leakage current of 200 nA minimizes power consumption during normal operation. The single element design ensures simple and effective installation for bi-directional transient voltage suppression.

This TVS diode is commonly utilized in industrial machinery, manufacturing equipment, water treatment systems, HVAC controls, and commercial electronics where surge protection is critical. The product's surface mount package type aligns with modern manufacturing methods, enabling automated placement and soldering for production efficiency.

Designed to protect electronic circuits from transient voltage surges. High pulse power rating of 600 W ensures robust surge absorption. Compact DO-214 surface mount package facilitates PCB assembly. Wide operating temperature range ensures reliability in harsh environments.

Optimized for bi-directional voltage suppression applications. Low reverse leakage current reduces power losses. Compliant with SMT mounting standards for production automation. Suitable for use in telecommunications, automotive electronics, and industrial systems.

Single element construction simplifies circuit design. Enhances durability and longevity of connected equipment.

The STMicroelectronics SM6T39CA TVS diode is an essential component in protecting electronic devices from transient voltage damage, thus improving product reliability and operational lifespan. For browsing similar industrial and semiconductor components, explore the TVS Diode category at EnvMart.
