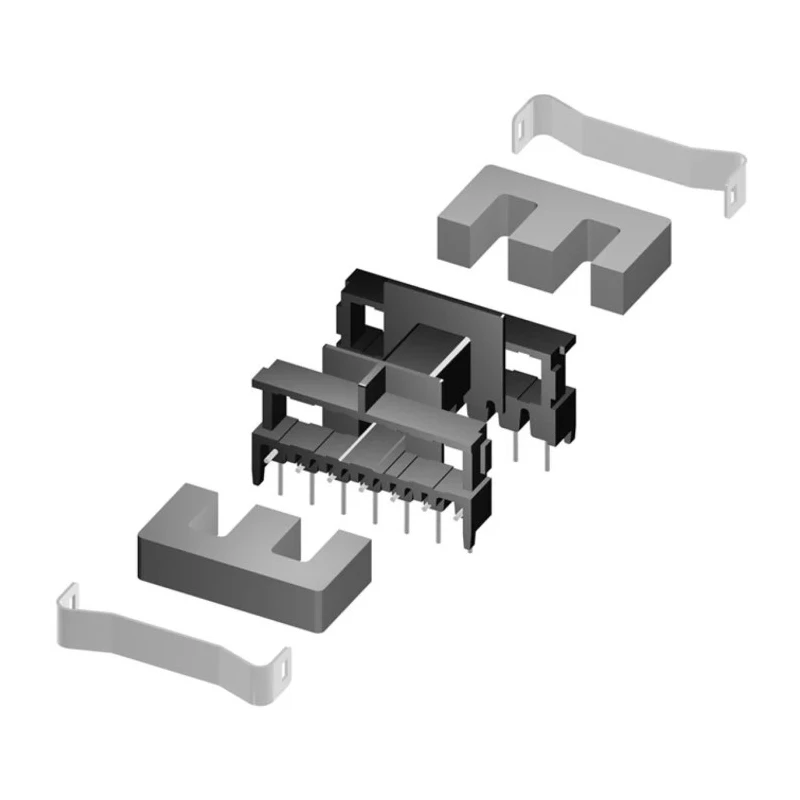

TDK Horizontal Coil Former for Use with E 30/15/7 Core B66232B1114T001

TDK B66232B1114T001 Horizontal Coil Former is a high-quality transformer accessory designed specifically for use with E 30/15/7 cores. Manufactured with fibreglass reinforced polyterephthalate, this coil former offers excellent mechanical strength and thermal stability, making it suitable for demanding electrical and electronic applications.

Featuring 14 pins, the coil former allows for secure winding and connection of coils. It supports a maximum operating temperature of 155°C, adhering to insulation class standards UL 94 V-0 and IEC 60085, ensuring safe operation in high-temperature environments.

The product dimensions are precisely 35.4 mm in length, 31.4 mm in width, and 22.6 mm in depth, making it compact and ideal for integration in transformer assemblies. Its compliance with RoHS standards highlights the environmentally friendly design and manufacturing process.

Widely used in industrial electronics, power supply transformers, and other electrical transformer manufacturing, this coil former ensures reliable electrical performance and durability.

Constructed from fibreglass reinforced polyterephthalate for enhanced durability. 14-pin design facilitates robust coil mounting. Maximum operating temperature rating of 155°C suitable for various applications. Compact dimensions support flexible design requirements.

RoHS compliance guarantees environmental safety. Engineered for use with EPCOS E30/15/7 coil formers. Explore EnvMart’s extensive collection of Transformer Accessories and power supply components for high-quality industrial solutions.
