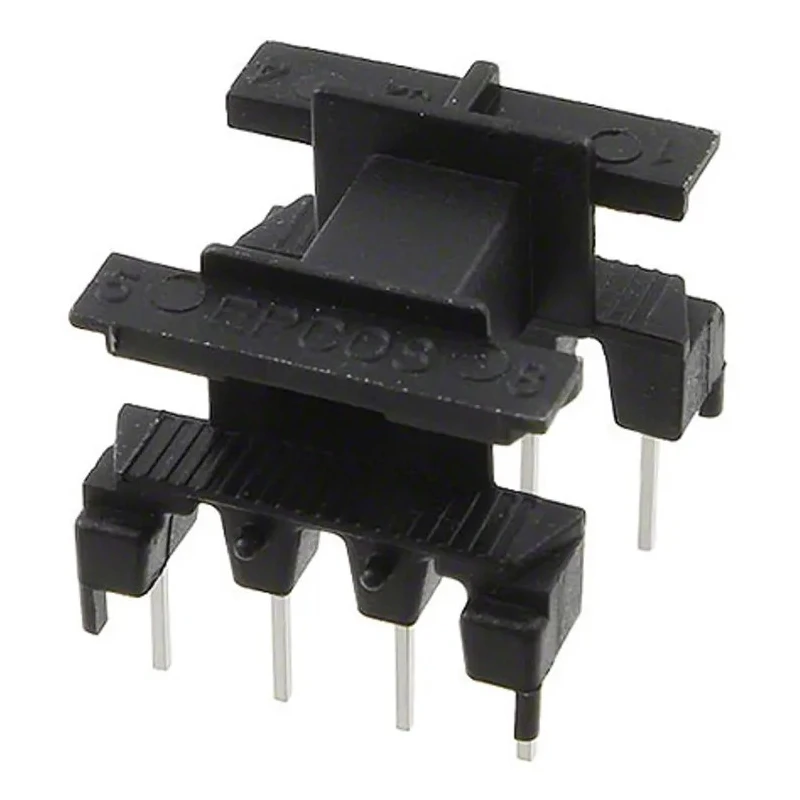

TDK Horizontal Coil Former for use with E 13/7/4 Core B66202B1108T001
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced PolyTerephthalate |
| Length | 14.2mm |
| Model | B66202B1108T001 |
| Width | 16.2mm |
| Maximum Operating Temperature | 155°C |
| Accessory Type | Horizontal Coil Former |
| For Use With | E 13/7/4 Core |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
Key Features
- Constructed from Fibreglass Reinforced PolyTerephthalate for durability.
- Suitable for transformers requiring 8 pins connection.
- Maximum operating temperature rating of 155°C ensures performance under thermal stress.
- Compliant with RoHS standards for environmental safety.
- Made in China, ensuring manufacturing quality control.
Product Description
TDK B66202B1108T001 Horizontal Coil Former is an essential transformer accessory designed specifically for use with E 13/7/4 Core transformers. It ensures proper coil insulation, mechanical support, and ease of assembly in transformer manufacturing.
The coil former is made from Fibreglass Reinforced PolyTerephthalate, a robust insulating material that meets UL 94 V-0 insulation classification as per IEC60085. This material choice guarantees reliability, electrical insulation, and resistance to thermal and mechanical stresses encountered during operation.
Rated for a maximum operating temperature of 155°C, this coil former performs reliably in demanding thermal environments, maintaining structural integrity and insulation properties.
Featuring 8 pins for electrical connections, it facilitates solderability compliant with IEC 60068-2-58 standards, enhancing durability of the electrical joints. Its compact dimensions of 14.2mm length and 16.2mm width allow compatibility with various transformer designs requiring E 13/7/4 Core components.
This coil former complies with RoHS directives, ensuring the product is free from hazardous substances, making it environmentally friendly. Constructed from Fibreglass Reinforced PolyTerephthalate material providing strength and insulation.
Designed for use with E 13/7/4 Core transformers to optimize coil arrangement. Supports 8-pin electrical connections with gullwing terminals. Operates reliably up to a maximum temperature of 155°C. Complies with RoHS standards for environmental safety.
Compact size with length 14.2mm and width 16.2mm for precise installation.
This horizontal coil former is suitable for transformer manufacturing, electrical supply systems, power electronics assemblies, and other industrial applications that require precise coil forms. Its high-quality construction and compliance with international standards make it ideal for demanding industrial and commercial environments.
Explore more Transformer Accessories and related components in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this coil former is 155°C, ensuring reliable performance under thermal stress.
It is constructed from Fibreglass Reinforced PolyTerephthalate, which provides strength and electrical insulation.
This model supports 8 pins for electrical connections, facilitating solderability compliant with IEC 60068-2-58 standards.
The dimensions of this coil former are 14.2mm in length and 16.2mm in width, allowing for precise installation.
Yes, it complies with RoHS standards, ensuring it is free from hazardous substances and environmentally safe.
It is specifically designed for use with E 13/7/4 Core transformers, optimizing coil arrangement.
The coil former provides proper coil insulation, mechanical support, and ease of assembly in transformer manufacturing.
The material meets UL 94 V-0 insulation classification as per IEC60085, ensuring reliability and resistance to thermal and mechanical stresses.
This model is manufactured in China, ensuring quality control during production.
It is suitable for transformer manufacturing, electrical supply systems, power electronics assemblies, and other industrial applications requiring precise coil forms.
Yes, it is designed to facilitate ease of assembly in transformer manufacturing, enhancing the overall efficiency of the process.
It features gullwing terminals for the 8-pin electrical connections, enhancing the durability of the electrical joints.
