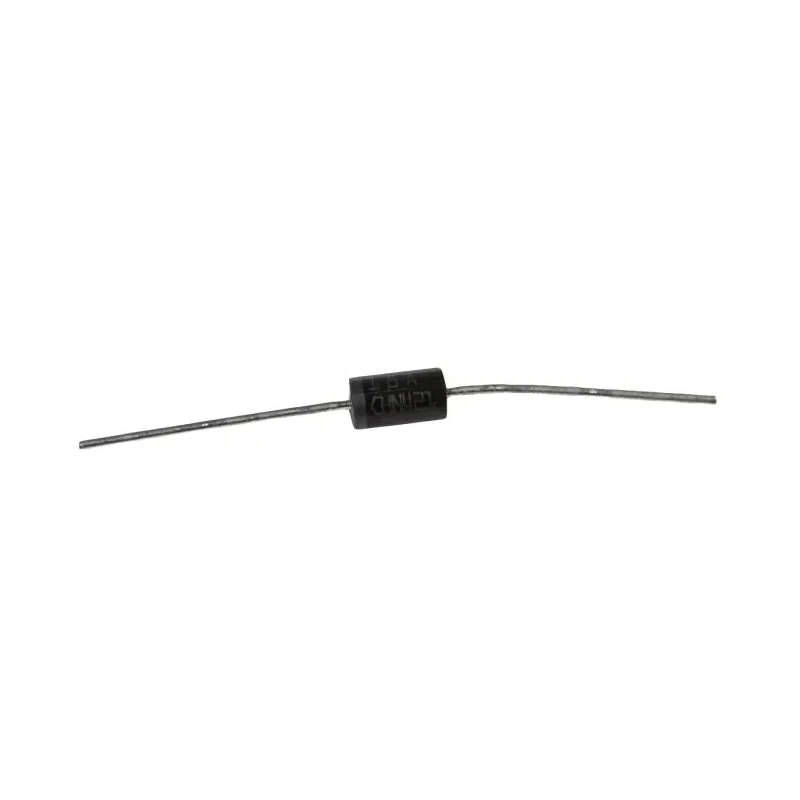

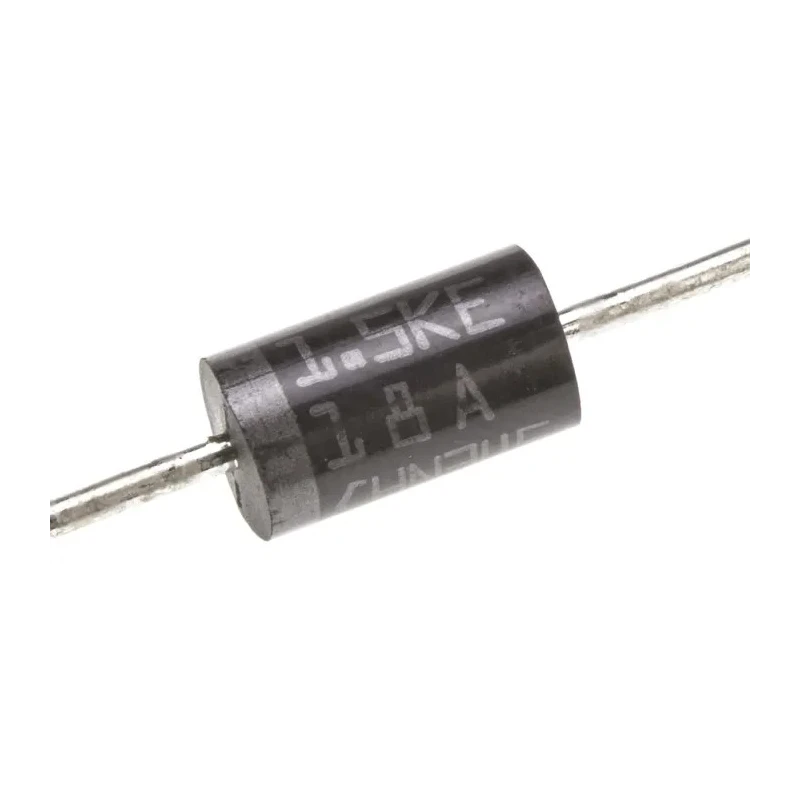

STMicroelectronics 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin DO-201 1.5KE18A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE18A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 32.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 17.1V |
| Maximum Reverse Stand-off Voltage Vwm | 15.3V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 308A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration for unidirectional voltage suppression.
- Through hole mount type suitable for robust PCB installation.
- Minimum breakdown voltage of 17.1 V and maximum reverse stand-off voltage of 15.3 V.
- Maximum peak pulse current of 308 A with a clamping voltage of 32.5 V.
- Wide operating temperature range from -65°C to 175°C for extreme environmental conditions.
- Compact axial package measuring 9.5 mm length and 5.3 mm diameter.
- Low maximum reverse leakage current of 1 μA ensuring minimal power loss.
- Designed for transient voltage suppression in power and electronic circuits.
Product Description
STMicroelectronics 1.5KE18A is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and transient surges. With a peak pulse power dissipation of 1.5 kW and a 2-Pin DO-201 axial lead package, it offers reliable transient voltage clamping performance suitable for industrial and commercial electronic equipment protection.
This TVS diode features a single diode configuration with unidirectional voltage suppression capability, ideal for protecting against positive voltage transients. It boasts a minimum breakdown voltage of 17.1 V and a maximum reverse stand-off voltage of 15.3 V, ensuring precise protective response thresholds.
The device supports a maximum peak pulse current of 308 A and provides a clamping voltage of 32.5 V, efficiently clamping transient surges and safeguarding downstream components. Its low maximum reverse leakage current of 1 μA reduces standby power consumption and electrical noise.
Operating over an extended temperature range from -65°C to 175°C, the 1.5KE18A ensures reliable operation under harsh environmental conditions. The through-hole mount type and standard DO-201 package dimensions of 9.5 mm length and 5.3 mm diameter facilitate straightforward mounting on printed circuit boards, promoting manufacturing process efficiency.
This component is widely applicable in power supply circuits, communications, industrial controls, and other electronic applications requiring robust transient voltage suppression. It contributes to enhancing circuit longevity and overall system reliability by effectively dissipating voltage spikes caused by inductive load switching, lightning surges, and electrostatic discharge.
Single diode configuration for unidirectional voltage suppression. Through hole mount type suitable for robust PCB installation. Minimum breakdown voltage of 17.1 V and maximum reverse stand-off voltage of 15.3 V. Maximum peak pulse current of 308 A with a clamping voltage of 32.5 V.
Wide operating temperature range from -65°C to 175°C for extreme environmental conditions. Compact axial package measuring 9.5 mm length and 5.3 mm diameter. Low maximum reverse leakage current of 1 μA ensuring minimal power loss.
Designed for transient voltage suppression in power and electronic circuits. Compliance with standard DO-201 packaging format for easy integration. Explore EnvMart’s comprehensive electronic component range for more TVS Diodes and semiconductor devices tailored to industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 1.5 kW.
The maximum reverse stand-off voltage is 15.3 V.
The clamping voltage for this unit is 32.5 V.
It operates over a wide temperature range from -65°C to 175°C.
The maximum peak pulse current is 308 A.
This diode has a length of 9.5 mm and a diameter of 5.3 mm.
It uses a through-hole mount type, suitable for robust PCB installation.
This model has a single diode configuration with one element per chip.
The maximum reverse leakage current is 1 μA.
The minimum breakdown voltage is 17.1 V.
It is packaged in a DO-201 type, which is a standard axial lead package.
This diode is suitable for transient voltage suppression in power supply circuits, communications, and industrial controls.
