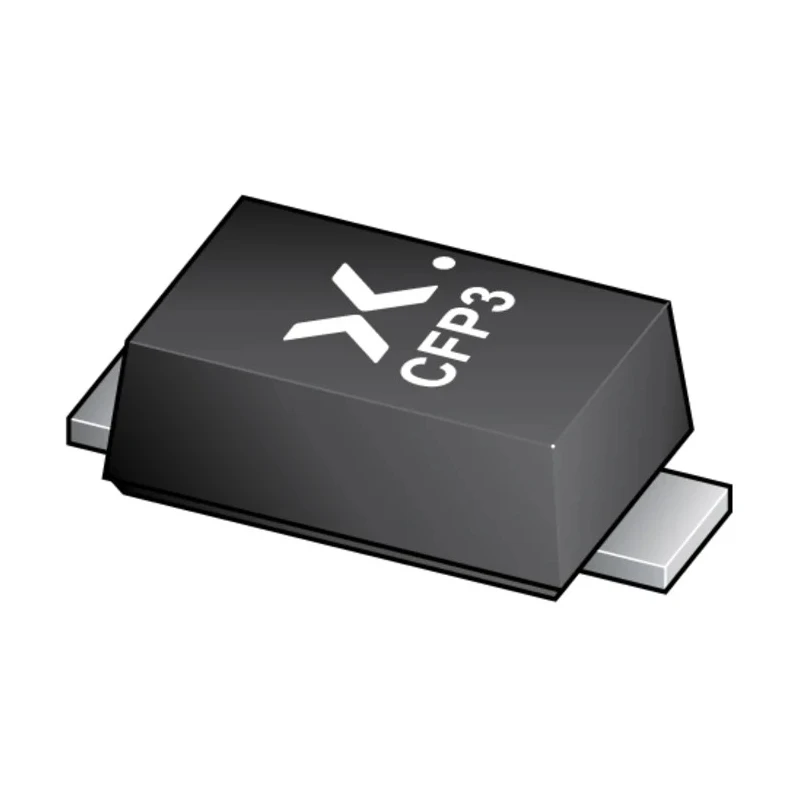

Nexperia Medium Power Low Vf Schottky Diode 60 V 2.83 A 2-Pin SOD-123 PMEG6020AELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG6020AELRX |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG6020AELP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2.83A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.4mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 670mV |
| Peak Reverse Recovery Time trr | 9ns |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- This diode has a maximum continuous forward current of 2.83 A.
- It supports a peak reverse repetitive voltage of 60 V.
- The maximum forward voltage is 670 mV ensuring high efficiency.
- Maximum operating temperature is rated at 175°C for robust performance.
- Peak non-repetitive forward surge current is 50 A.
- The diode features a 2-pin surface mount SOD-123 package with small form factor dimensions.
- It is AEC-Q101 automotive qualified for reliable use in automotive applications.
- The device offers extremely low leakage current of 235 nA to minimize power loss.
Product Description
Nexperia PMEG6020AELRX is a medium power, low forward voltage Schottky diode designed for high efficiency in compact surface mount packages. It features a 2-pin SOD-123 package that enables space saving designs in electronic equipment. The device is rated for 60 V peak reverse repetitive voltage and can handle continuous forward current up to 2.83 A, making it suitable for various power and battery management applications.
This diode uses planar MEGA (Maximum Efficiency General Application) Schottky technology with an integrated guard ring to enhance stress protection. Its extremely low leakage current of 235 nA reduces power wastage, while the maximum forward voltage of 670 mV limits conduction losses. The maximum operating junction temperature is 175°C, providing reliable performance in harsh industrial and automotive environments.
The PMEG6020AELRX is AEC-Q101 qualified, making it ideal for automotive systems requiring stringent reliability standards. Its clip-bonding technology supports higher power capability and thermal management. The compact SOD-123 package measures 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, facilitating integration in dense circuit layouts. The diode operates reliably over a temperature range from -55°C to 175°C.
Typical industrial uses include power rectification in electronic circuits, battery life extension in portable devices, and automotive electronics where efficiency and thermal reliability are critical. Its surface-mount design suits automated assembly processes in manufacturing and commercial production.
Key features include surface mount mounting, single diode configuration, and compliance with automotive-grade qualifications. This Schottky diode is optimized for applications where minimal voltage drop and fast switching are required.
Maximum continuous forward current: 2.83 A. Peak reverse repetitive voltage: 60 V. Maximum forward voltage: 670 mV. Maximum operating temperature: 175°C. Peak non-repetitive forward surge current: 50 A. Low leakage current of 235 nA.
Compact SOD-123 package. AEC-Q101 automotive standard qualified. High power capability with clip-bonding technology. Ideal for automotive and industrial electronic applications. Explore more products in the Schottky Diodes & Rectifiers category on EnvMart for comprehensive industrial semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2.83 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage for this diode is 670 mV.
It operates reliably over a temperature range from -55°C to 175°C.
The diode is packaged in a compact 2-pin SOD-123 surface mount package.
The peak non-repetitive forward surge current is rated at 50 A.
Yes, this diode is AEC-Q101 automotive qualified, ensuring reliability for automotive applications.
The dimensions of the SOD-123 package are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
The diode features an extremely low leakage current of 235 nA.
This model is a Schottky rectifier, optimized for applications requiring minimal voltage drop and fast switching.
It is suitable for power rectification in electronic circuits, battery management in portable devices, and automotive electronics.
It uses planar MEGA (Maximum Efficiency General Application) Schottky technology with an integrated guard ring for enhanced stress protection.
