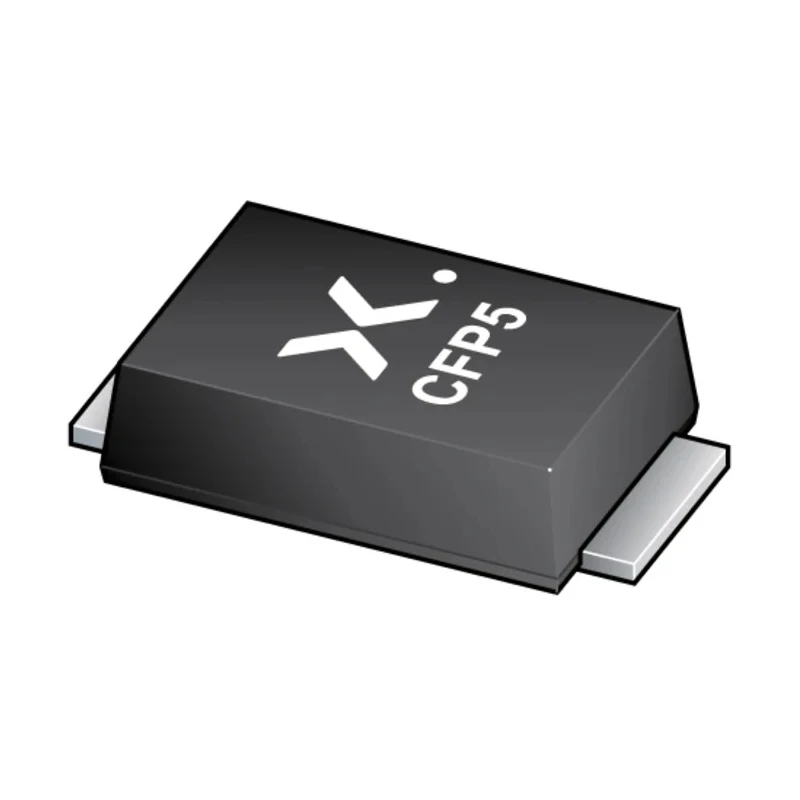

Nexperia Medium Power 60 V 6.3 A Schottky Diode 2-Pin SOD-128 Surface Mount PMEG6045ETPX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG6045ETPX |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG6045ETP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 6.3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 530mV |
| Peak Reverse Recovery Time trr | 20ns |
| Average forward current | IF(AV) ≤ 4.5 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- The diode features a low forward voltage of 530 mV to minimize power loss.
- It supports a peak non-repetitive forward surge current of 70 A, enhancing robustness.
- The package is a compact 2-pin SOD-128 surface mount type, saving PCB space.
- Maximum operating temperature is high at 175°C, suitable for high-temperature applications.
- The diode is AEC-Q101 automotive standard qualified, ensuring reliability in automotive environments.
- Peak reverse repetitive voltage is rated at 60 V with a peak reverse current of 300 mA.
- It has a fast peak reverse recovery time of 20 ns for improved switching performance.
- The physical dimensions include length 4 mm, width 2.7 mm, and height 1.1 mm.
Product Description
Nexperia PMEG6045ETPX Schottky Diode is a medium power, high efficiency rectifier diode designed for advanced electronics, automotive, and industrial applications. It operates at a maximum continuous forward current of 6.3 A and withstands reverse voltages up to 60 V, making it ideal for power conversion, battery protection, and voltage clamping tasks.
Engineered with clip-bonding technology and housed in a small 2-pin SOD-128 surface mount package (4 mm length, 2.7 mm width, and 1.1 mm height), this diode delivers low forward voltage drop of 530 mV to increase power efficiency and reduce heat generation.
The device is AEC-Q101 qualified, meeting stringent automotive quality standards and capable of reliable operation at temperatures up to 175°C. Its fast reverse recovery time of 20 ns enables high-frequency switching applications without significant losses.
This single diode device features an integrated guard ring for stress protection and supports a peak surge current of 70 A, enhancing durability in transient conditions. The diode’s compact footprint allows for saving PCB space, making it suitable for portable and compact electronic designs.
Low forward voltage drop of 530 mV ensures high efficiency. Peak surge current of 70 A improves transient robustness. Compact SOD-128 2-pin surface mount package saves PCB area. High maximum operating temperature up to 175°C supports harsh environments.
AEC-Q101 automotive qualification guarantees quality and reliability. Fast reverse recovery time of 20 ns for efficient switching. Reverse voltage rating of 60 V and reverse current of 300 mA. Suitable for industrial, automotive, and consumer electronics applications.
This Schottky diode is optimal for power supply rectification, battery management, and voltage protection circuits in demanding industrial, automotive, and commercial electronics sectors. Explore EnvMart's comprehensive semiconductor range for your electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the PMEG6045ETPX diode is 6.3 A.
This diode has a peak reverse repetitive voltage rating of 60 V.
The dimensions of the SOD-128 package are 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
The maximum operating temperature for the PMEG6045ETPX is 175°C.
The diode features a low forward voltage drop of 530 mV.
It can handle a peak non-repetitive forward surge current of 70 A.
The peak reverse recovery time is rated at 20 ns, allowing for improved switching performance.
Yes, it is AEC-Q101 qualified, ensuring reliability in automotive environments.
The minimum operating temperature is -55°C.
This model uses a surface mount type, specifically in a SOD-128 package.
The average forward current rating is IF(AV) ≤ 4.5 A.
It is suitable for power supply rectification, battery management, and voltage protection circuits in various sectors, including industrial and automotive applications.
