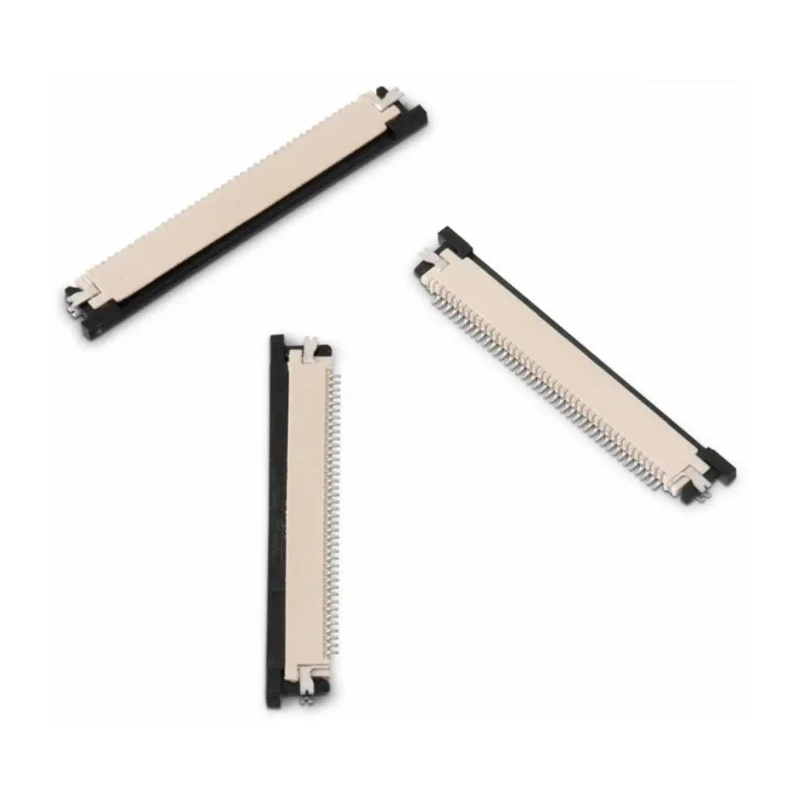

Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female Surface Mount FPC Connector 687140183622

Wurth Elektronik 687140183622 FPC Connector is a 0.5 mm pitch low-profile horizontal female connector tailored for high-density electronic applications. Featuring 40 contact points, this surface mount connector incorporates a Zero Insertion Force (ZIF) rotating flip lock actuator that facilitates effortless insertion of flexible printed circuits (FPC) with enhanced mechanical and electrical retention.

The connector's phosphor bronze contacts are plated with tin over nickel, ensuring consistent conductivity and durability. Its liquid crystal polymer housing provides mechanical reliability and thermal stability, with an operational temperature range of -25°C to 85°C. The connector supports currents up to 400mA and voltages up to 50V AC.

Special solder tabs on both sides stabilize the connector on the PCB, contributing to enhanced assembly robustness. The top contact position combined with the horizontal orientation offers design flexibility to engineers integrating FPC connectors into compact electronic assemblies.

This connector is ideal for miniaturized and high-density applications including displays, touch panels, personal computers, tablets, mobile devices, cameras, and industrial or medical equipment where reliable mechanical and electrical connections are critical.

The 0.5 mm pitch with 40 contacts suits applications demanding high-density interconnections. The flip lock actuator mechanism provides zero insertion force for ease of assembly and secure locking. Phosphor bronze contacts plated with tin over nickel ensure high-quality electrical conductivity and corrosion resistance.

Liquid crystal polymer housing delivers mechanical strength and thermal endurance. Suitable for operating temperatures ranging from -25°C to 85°C. Current rating up to 400mA and voltage rating of 50V AC support various electronic systems.

Solder tabs provide additional mechanical retention on the PCB surface to withstand vibrations and mechanical stresses. Designed with a single row configuration and top contacts for versatile PCB layout integration.

Wurth Elektronik products are well-established in the electronics industry for their reliability and quality. This model 687140183622 FPC Connector is engineered to meet demanding industrial, commercial, and consumer electronic applications, enhancing device performance and longevity.
