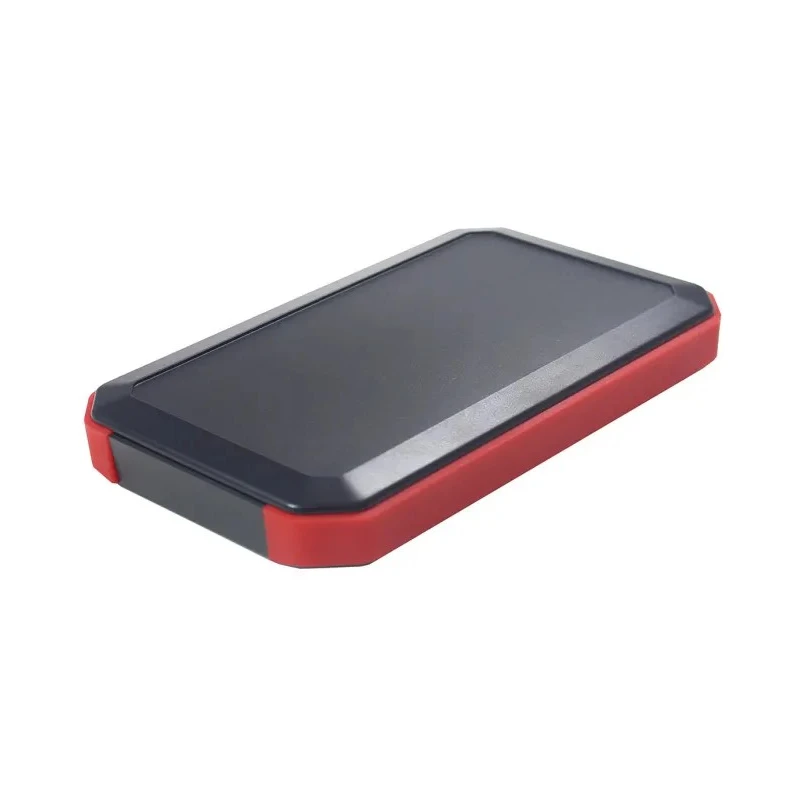

Takachi Electric Industrial WH Series Black/Red ABS Handheld Enclosure with Integral Battery Compartment WH145-20-N-BR

Takachi Electric Industrial introduces the WH145-20-N-BR, a high-performance handheld enclosure from the WH Series designed for the protection and portability of modern electronic devices. This enclosure is expertly crafted from robust ABS material, which is UL94V-0 classified for excellent flame retardancy and long-term durability in challenging conditions. Its dual-color design, featuring a black body with red sides formed from high-quality thermoplastic elastomer (TPE), provides not only visual distinction but also improved grip and comfort for users in demanding environments.

This enclosure is engineered to meet IP67 and IP40 ingress protection standards, ensuring superior resistance to dust and water intrusion. This makes it optimal for both indoor and outdoor applications, including environments where moisture, dust, or contamination may occur. The integral battery compartment facilitates convenient installation and maintenance of battery-powered instrumentation, controls, or medical devices, eliminating the need for external battery boxes.

With external dimensions of 88 mm length, 146 mm width, and a slim 20 mm height, the WH145-20-N-BR delivers an ergonomic, low-profile housing solution suitable for handheld instrumentation, portable transmitters, inspection tools, and mobile diagnostic equipment. Its gasket-sealed lid and screw-mounting system provide strong protection against environmental hazards and accidental ingress, while the absence of a display window or keypad recess ensures maximum customization flexibility for user interfaces and device cutouts.

Durable ABS construction with rubberized sides for enhanced protection and user comfort. IP67-rated waterproof and dustproof enclosure; also meets IP40 requirements. Integral battery compartment designed for secure and efficient battery installation.

Optimized for customized handheld electronic applications, including measurement, inspection, and medical devices. RoHS and UL94V-0 compliance for safety and environmental assurance. Screw-mount internal fitments and TPE gasket for reliable assembly and sealing.

Usable in temperatures from -10°C to +60°C, supporting operation in industrial and field environments. Distinct black/red color enhances device identification and professional appearance.

The WH145-20-N-BR is supplied complete with lid, base, rubber sides, gasket, and fixing screws, ensuring quick and reliable enclosure assembly as well as superior protection for sensitive electronics. Its rugged yet lightweight design makes it an excellent choice for OEMs and system integrators seeking high quality, ready-to-customize handheld enclosures for demanding industrial, laboratory, or outdoor applications.
