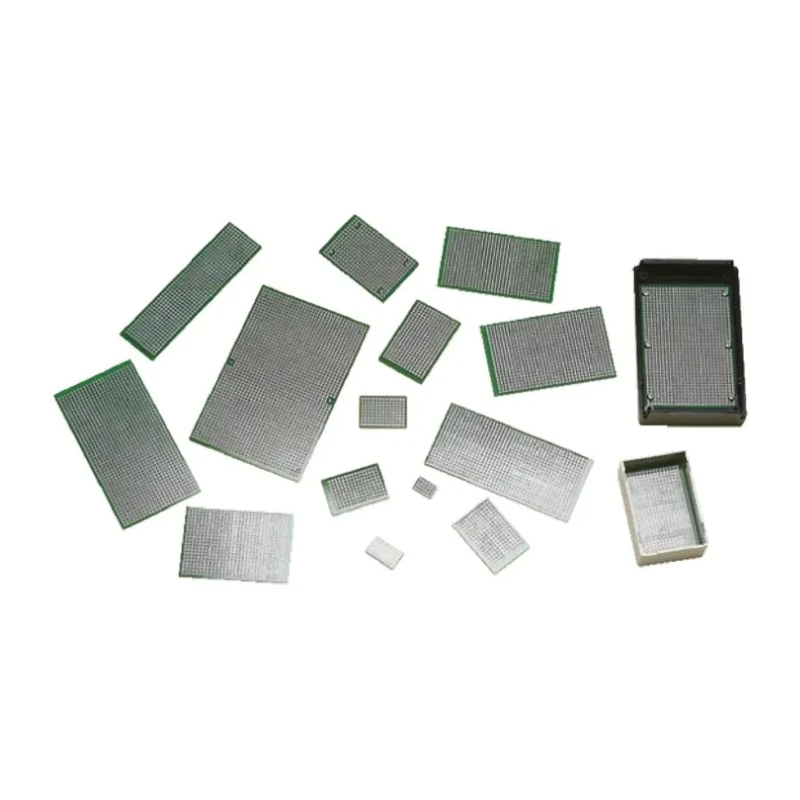

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 114mm x 53mm 1mm Holes TNF53-114
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Takachi Electric Industrial |
| Length | 114mm |
| Model | TNF53-114 |
| Width | 53mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | RoHS |
| Number of Sides | 2 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
| Hole Layout | 20 x 43 |
| Hole Pitch | 2.54mm |
Key Features
- Double sided board with 2 layers ideal for surface mounting applications.
- Contains 20 x 43 holes measuring 1 mm diameter suited for versatile electronic prototyping.
- Standard 2.54 mm hole pitch ensures compatibility with common SMT components.
- Board dimensions 114 mm length by 53 mm width with a 1.6 mm thickness.
- Constructed using flame retardant FR4 material complying with RoHS standards.
- Originated from Japan ensuring high manufacturing quality.
Product Description
Takachi Electric Industrial TNF53-114 is a high-quality Surface Mount Technology (SMT) board designed for industrial and electronic prototyping needs. This universal board is manufactured from epoxy glass fabric laminate with FR4 flame retardant grade, providing excellent electrical insulation and mechanical rigidity. The board features 2 sides with through holes on both sides, measuring 1 mm diameter arranged in a 20 by 43 layout on a 2.54 mm pitch, which is standard for SMT applications.
The dimensions are precisely 114 mm in length and 53 mm in width with a board thickness of 1.6 mm, making it compatible with SW and SS series cases. This construction ensures the board remains durable under various electronic testing and mounting scenarios. It complies with the Restriction of Hazardous Substances (RoHS) directive, assuring safety and environmental standards compliance.
This board serves applications in industrial electronics, electrical prototyping, research and development labs, and educational settings for circuit design and testing. The double-sided design allows for complex circuit layouts and component mounting flexibility.
Product features include universal compatibility with spacers and optional components for varied mounting needs. The board is crafted in Japan, assuring manufacturing precision and materials quality.
Set your prototyping projects for success with the durable and versatile Takachi Electric Industrial TNF53-114 Surface Mount Board offering industry-standard specifications and reliable material composition.
Double sided board with 2 layers ideal for surface mounting applications. Contains 20 x 43 holes measuring 1 mm diameter suited for versatile electronic prototyping. Standard 2.54 mm hole pitch ensures compatibility with common SMT components.
Board dimensions 114 mm length by 53 mm width with a 1.6 mm thickness. Constructed using flame retardant FR4 material complying with RoHS standards. Originated from Japan ensuring high manufacturing quality. Explore more electronics components and high-quality prototyping boards at EnvMart for your industrial and laboratory needs.
Explore more products in our Matrix Board category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board measures 114 mm in length and 53 mm in width, with a thickness of 1.6 mm.
It is constructed from epoxy glass fabric laminate, specifically rated as FR4 material grade, which is flame retardant.
The board contains 20 x 43 holes, each measuring 1 mm in diameter.
The hole pitch is 2.54 mm, which is standard for surface mount technology applications.
Yes, it complies with the Restriction of Hazardous Substances (RoHS) directive.
This model features 2 sides, allowing for versatile component mounting.
It is suitable for industrial electronics, electrical prototyping, research and development labs, and educational settings for circuit design and testing.
The holes are arranged in a layout of 20 rows by 43 columns.
The board is manufactured in Japan, ensuring high quality.
It is compatible with common SMT components due to its standard hole pitch and layout.
The board offers universal compatibility with spacers and optional components for varied mounting needs.
The thickness of this surface mount board is 1.6 mm.
