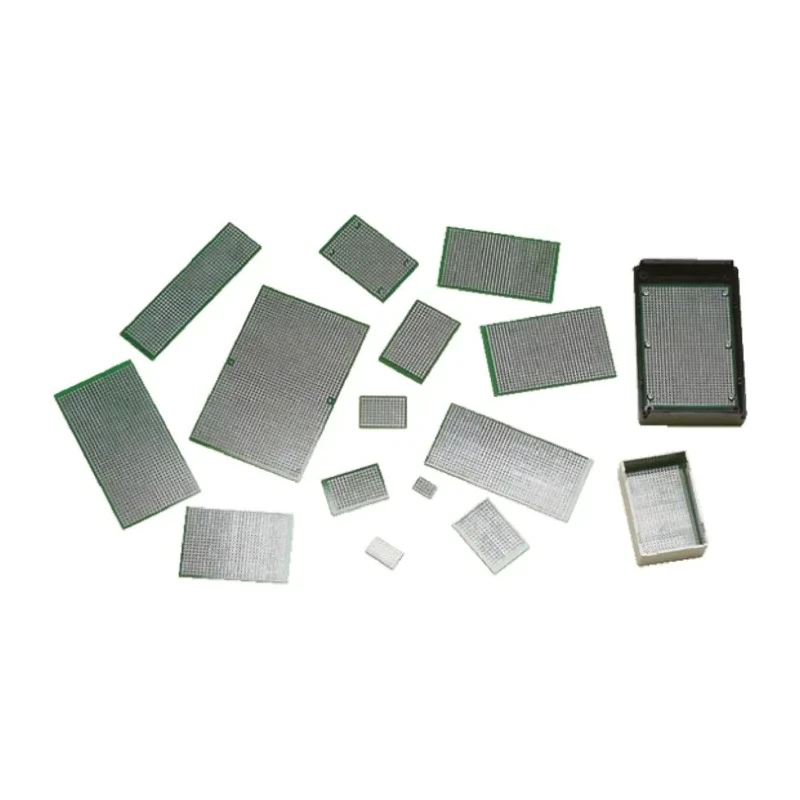

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 136mm x 89mm 1.6mm TNF89-136

Takachi Electric Industrial TNF89-136 2 Surface Mount (SMT) Board is a high-quality FR4 epoxy glass fabric laminate prototyping board designed for professional electronics development and manufacturing. Measuring 136 mm in length and 89 mm in width with a thickness of 1.6 mm, it features 34 x 52 holes of 1 mm diameter and a precise 2.54 mm hole pitch suitable for standard surface mount technology (SMT) components.

This universal board is suitable for use in SW and SS series cases, offering excellent mechanical and electrical performance for rapid prototyping, electronic assembly, and development applications. The board's double-sided surface mount capability allows for complex circuit layouts and ensures versatile usage in industrial electronics, laboratory prototyping, and repair workshops.

Manufactured from durable epoxy glass fabric laminate material and conforming to RoHS standards, this matrix board provides reliable insulation, mechanical strength, and environmental safety. The 2.54 mm pitch matches widely accepted component standards, making it compatible with a broad range of industrial and commercial electronic components.

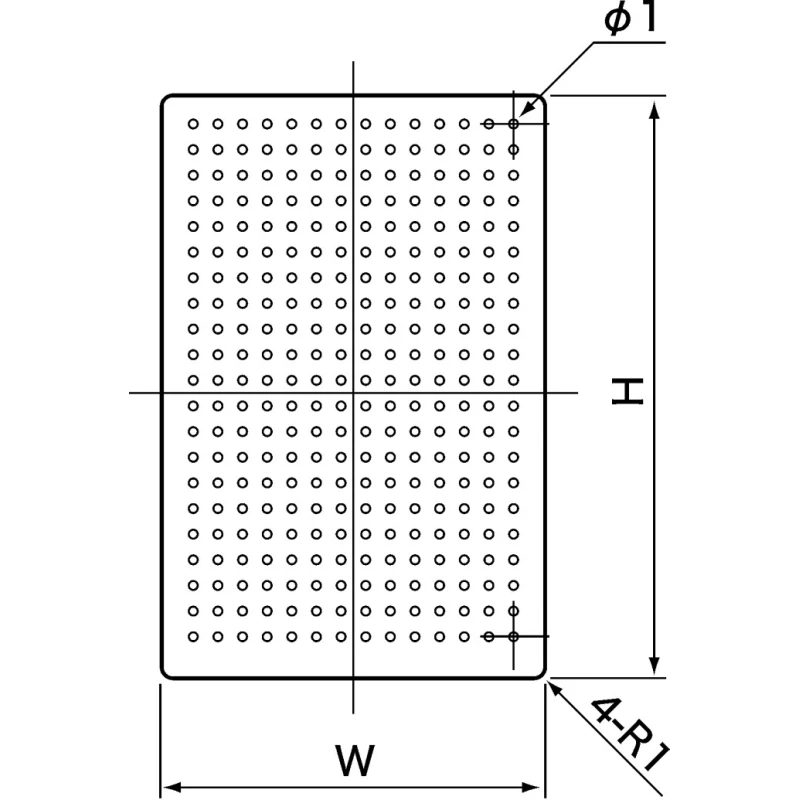

With a hole layout of 34 by 52 and a precise 1 mm hole diameter, secure and accurate placement of components during surface mount assembly is enabled. Originating from Japan, this board meets stringent quality requirements for electronics manufacturing and prototyping.

This board supports surface mount technology on both sides for versatile circuit assembly. Precision 2.54 mm hole pitch ensures compatibility with standard components. Board thickness is 1.6 mm, providing robust mechanical strength.

Constructed with high-quality epoxy glass fabric laminate material to ensure durability. Hole diameter measures 1 mm for secure component placement. Complies with RoHS standards for environmental safety. Designed as a perfectly sized board for SW and SS series cases.

Universal 2.54 mm-pitch board with through holes on both sides enriches prototyping flexibility. Manufactured in Japan, ensuring high-quality industrial standard. This surface mount board is ideal for industrial electronics prototyping, laboratory development, educational electronics projects, and small to medium scale manufacturing setups.
