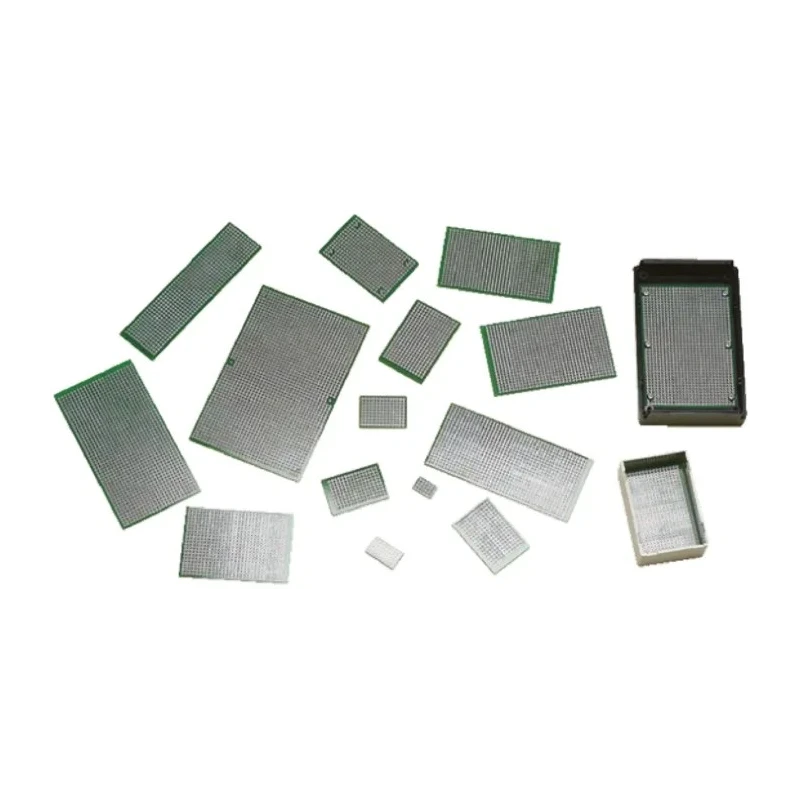

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 124mm x 34mm x 1.6mm TNF34-124
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Takachi Electric Industrial |
| Length | 124mm |
| Model | TNF34-124 |
| Width | 34mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | RoHS |
| Number of Sides | 2 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
| Hole Layout | 12 x 47 |
| Hole Pitch | 2.54mm |
Key Features

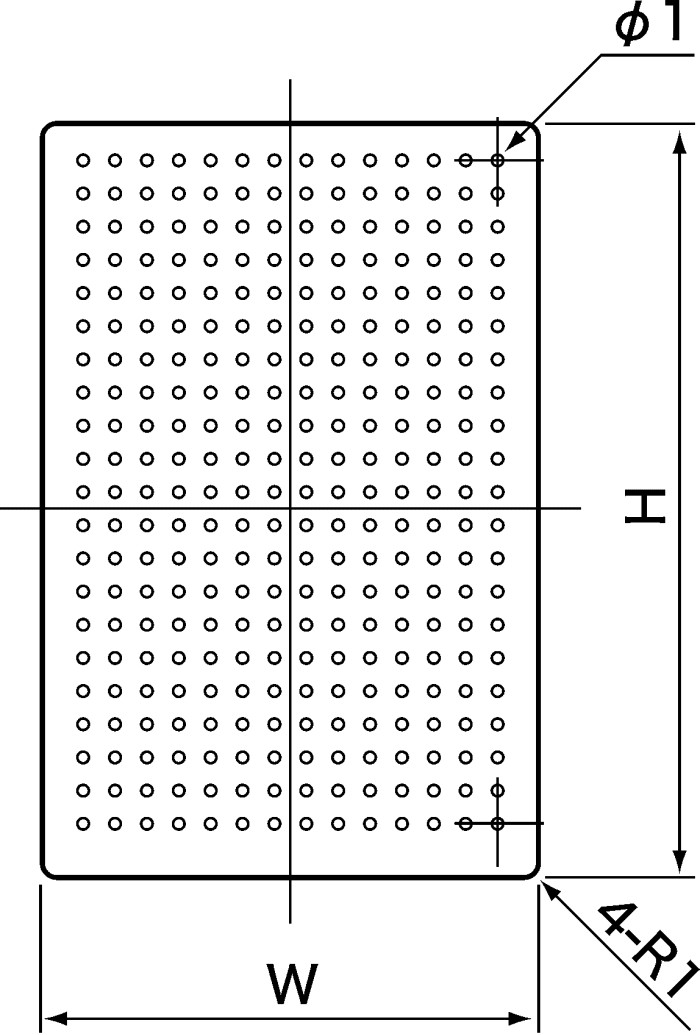

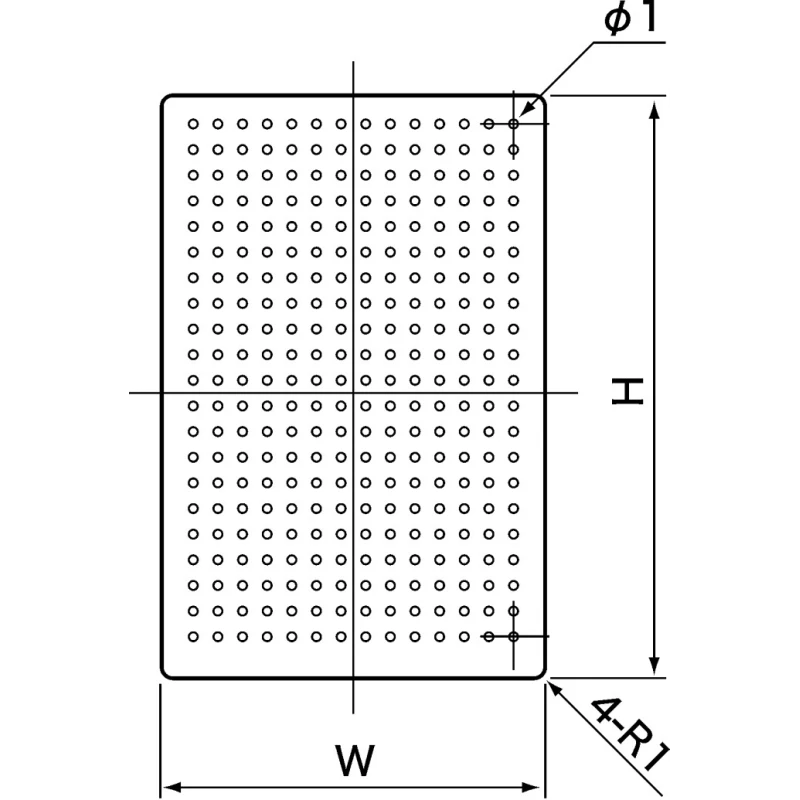

- The board features 12 x 47 holes with 1 mm diameter, spaced at 2.54 mm pitch for versatile circuit design.
- The FR4 material grade ensures excellent electrical insulation and mechanical strength.
- This universal board is compatible with SW and SS series cases for flexible mounting options.
- Suitable for through-hole and surface mount technology applications on both sides.
- The product complies with RoHS standards ensuring environmentally safe materials.
- Originating from Japan, it assures high manufacturing quality and durability.
- The board is ideal for prototyping, industrial electronics, and electronics assembly.
Product Description
Takachi Electric Industrial TNF34-124 is a professional 2-sided Surface Mount (SMT) board constructed from high-grade FR4 epoxy glass fabric laminate material. It measures 124 mm in length, 34 mm in width, with a thickness of 1.6 mm, providing a robust and reliable platform for prototyping electronic circuits.
Featuring 12 columns by 47 rows of 1 mm diameter holes arranged at a 2.54 mm pitch, this board offers a universal hole layout suited for diverse electronic components mountable on both sides. Its design facilitates through-hole and surface mount technology applications, making it adaptable to multiple board assembly requirements.
FR4 material grade grants excellent mechanical strength, flame resistance, and electrical insulation properties, supporting safe and durable circuit builds. The board is perfectly sized for compatibility with Takachi Electric's SW and SS series cases, expanding mounting and deployment possibilities in electronic assemblies.
Manufactured in Japan, it aligns with RoHS environmental standards, ensuring compliance with hazardous substances regulations, pertinent for global electronic products and industrial electronics markets.
This prototyping board is ideally suited for industrial electronics, laboratory testing, electronic component development, and small to medium scale manufacturing setups requiring reliable, versatile circuit boards.
The board features 12 x 47 holes with 1 mm diameter, spaced at 2.54 mm pitch for versatile circuit design. The FR4 material grade ensures excellent electrical insulation and mechanical strength. This universal board is compatible with SW and SS series cases for flexible mounting options.
Suitable for through-hole and surface mount technology applications on both sides. The product complies with RoHS standards ensuring environmentally safe materials. Originating from Japan, it assures high manufacturing quality and durability.
The board is ideal for prototyping, industrial electronics, and electronics assembly. Explore more electronics components and prototyping boards on EnvMart for comprehensive solutions to industrial and manufacturing needs.
Explore more products in our Matrix Board category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TNF34-124 board measures 124 mm in length, 34 mm in width, and has a thickness of 1.6 mm.
It features a hole layout of 12 columns by 47 rows, with each hole having a diameter of 1 mm and spaced at a 2.54 mm pitch.
The board is constructed from high-grade FR4 epoxy glass fabric laminate, which provides excellent electrical insulation and mechanical strength.
Yes, the TNF34-124 board complies with RoHS standards, ensuring it is made from environmentally safe materials.
This board is designed for use on both sides, allowing for versatile component mounting.
It is ideal for prototyping, industrial electronics, laboratory testing, and small to medium scale manufacturing setups.
The TNF34-124 board is compatible with Takachi Electric's SW and SS series cases, providing flexible mounting options.
This board originates from Japan, ensuring high manufacturing quality.
The FR4 material grade used in this board offers excellent electrical insulation and flame resistance.
The board features a total of 564 holes, arranged in a 12 x 47 configuration.
The thickness of the TNF34-124 board is 1.6 mm.
Yes, it is suitable for both through-hole and surface mount technology applications on both sides.
