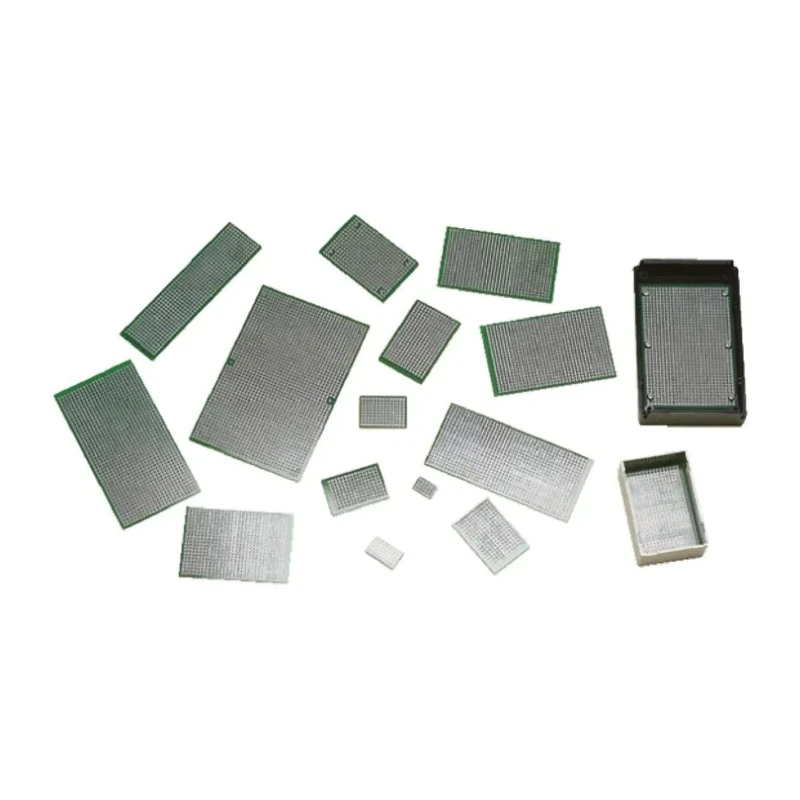

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 44mm x 29mm 1.6mm Thickness 1mm Holes TNF29-44
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Takachi Electric Industrial |
| Length | 44mm |
| Model | TNF29-44 |
| Width | 29mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | RoHS |
| Number of Sides | 2 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
| Hole Layout | 10 x 15 |
| Hole Pitch | 2.54mm |
Key Features
- The board features through holes on both sides, suitable for surface mount technology.
- Standard 2.54mm hole pitch is designed for universal mounting applications.
- Constructed with FR4 grade epoxy glass fabric laminate for durability and electrical insulation.
- Perfectly sized for SW and SS series cases, compatible with a range of electronic enclosures.
- Complies with RoHS standards for environmental safety and reliability.
- Produced in Japan ensuring high quality manufacturing standards.
- Ideal for prototyping and industrial electronics applications requiring precise hole pitch and solid board material.
Product Description

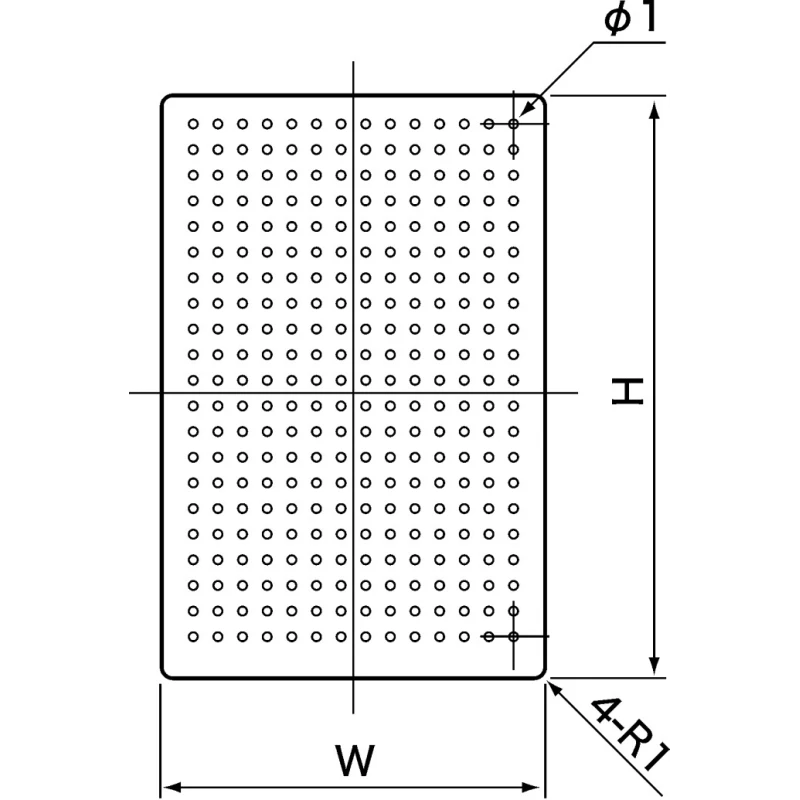

Takachi Electric Industrial TNF29-44 Surface Mount (SMT) Board is a universal prototyping board made from FR4 epoxy glass fabric laminate, measuring 44mm in length, 29mm in width, and 1.6mm thick. It includes 1mm diameter holes arranged in a 10 x 15 grid with a 2.54mm pitch, providing through holes on both sides suitable for surface mount components.
This board is perfectly sized to fit SW and SS series cases, making it highly adaptable for various electronics assembly and repair tasks. Its high-quality FR4 material ensures excellent electrical insulation and mechanical strength, essential for industrial and laboratory electronics applications.
The TNF29-44 board complies with RoHS directives, guaranteeing it meets environmental standards for hazardous substances, making it safe and reliable for commercial and industrial use.
The precision hole pitch and board dimensions make it ideal for prototype fabrication, electronic component mounting, and circuit design validation. Manufactured in Japan, it comes with assured build quality and material grade.
The board features through holes on both sides, suitable for surface mount technology. Standard 2.54mm hole pitch is designed for universal mounting applications. Constructed with FR4 grade epoxy glass fabric laminate for durability and electrical insulation.
Perfectly sized for SW and SS series cases, compatible with a range of electronic enclosures. Complies with RoHS standards for environmental safety and reliability. Produced in Japan ensuring high quality manufacturing standards.
Ideal for prototyping and industrial electronics applications requiring precise hole pitch and solid board material.
This product is widely used in industrial electronics prototyping, manufacturing test setups, and electronic design labs, providing a versatile platform for circuit assembly and experimentation. Browse more in the Matrix Boards category for compatible prototyping solutions on EnvMart.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TNF29-44 board measures 44mm in length, 29mm in width, and has a thickness of 1.6mm.
It is constructed from FR4 grade epoxy glass fabric laminate, which provides durability and electrical insulation.
The board features 1mm diameter holes arranged in a 10 x 15 grid.
The hole pitch is 2.54mm, designed for universal mounting applications.
This board has through holes on both sides, suitable for surface mount technology.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations for hazardous substances.
It is ideal for prototyping, industrial electronics applications, and electronic design labs.
It is perfectly sized to fit SW and SS series cases, making it adaptable for various electronic enclosures.
This board is produced in Japan, ensuring high quality manufacturing standards.
FR4 material is known for its excellent electrical insulation and mechanical strength, essential for electronics applications.
It provides a versatile platform for circuit assembly and experimentation, particularly in manufacturing test setups.
Yes, it features a standard 2.54mm hole pitch designed specifically for universal mounting applications.
