HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/2 Wire Wrap Class C2 3 Row Female Connector 09032966821

Free Delivery in India | Lowest Global Shipping Charges

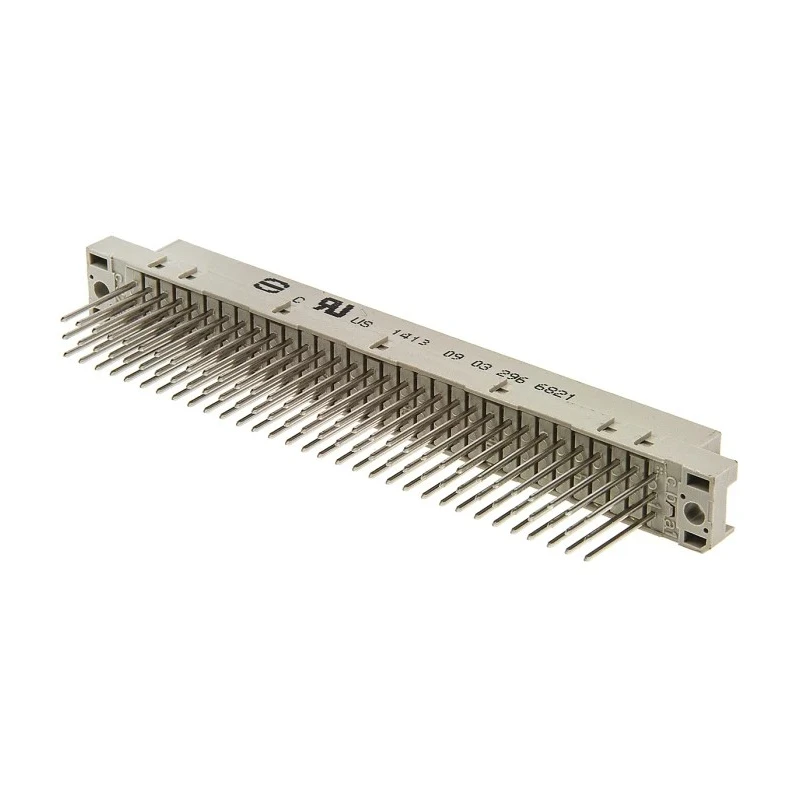

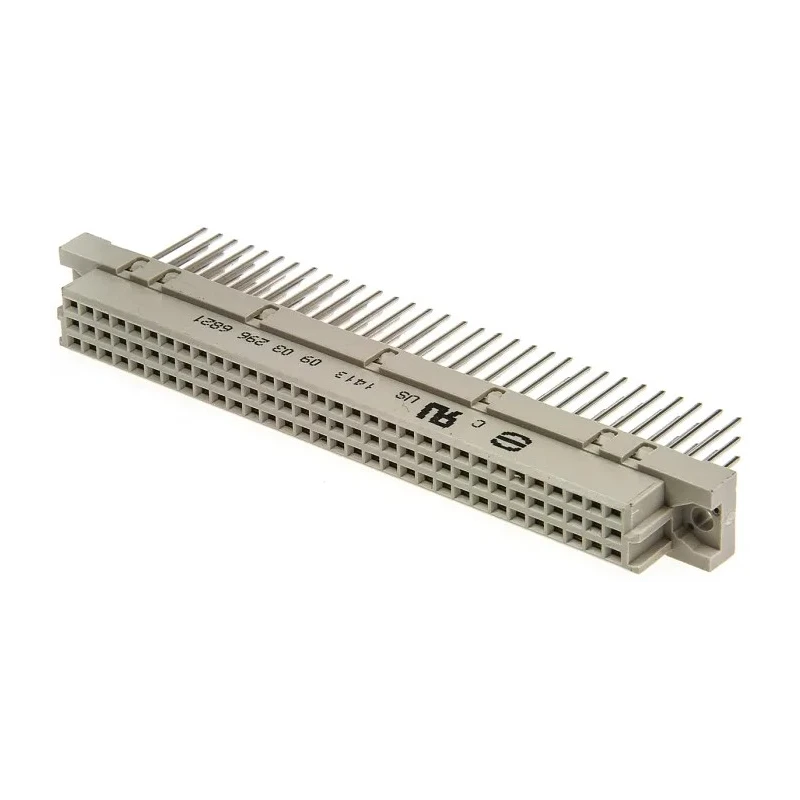

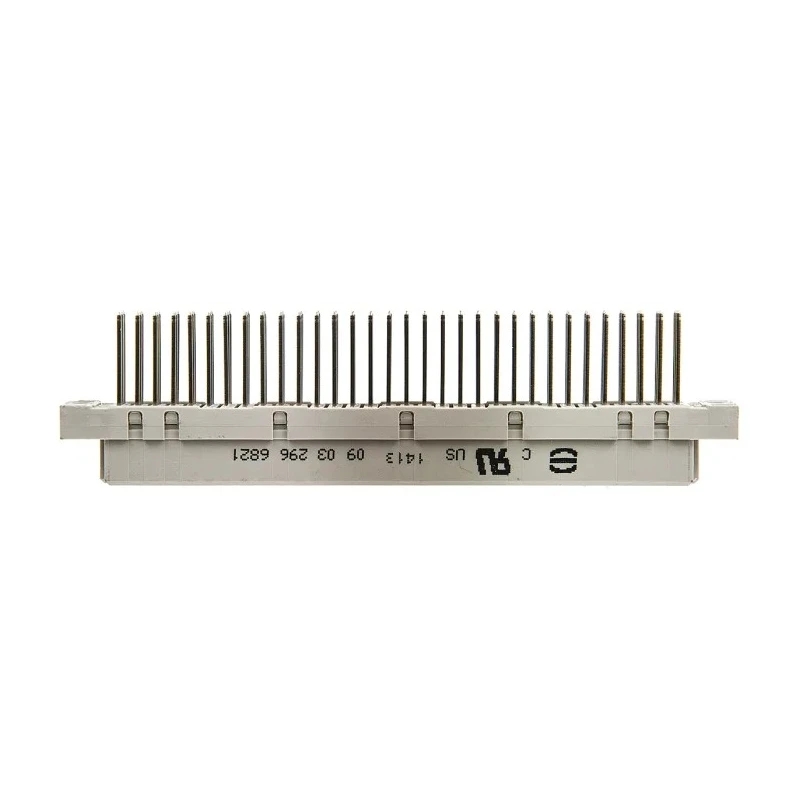

HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/2 Wire Wrap Class C2 3 Row Female Connector 09032966821

Name: HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/2 Wire Wrap Class C2 3 Row Female Connector 09032966821
Brand: HARTING
SKU: 160493
Price: 20.22 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Wire Wrap
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Designed for PCB backplane signal connections in electronic systems.
Features gold over nickel contact plating for reliable conductivity.
Operates between -55°C and 125°C temperature range.
Mounting type is through hole ensuring secure and durable PCB attachment.
Contact material is copper alloy offering good mechanical and electrical properties.
Maximum current rating is 2A per contact.
Maximum contact resistance is 20 milliohms ensuring minimal signal loss.
Specification compliant with DIN 41612 series for Eurocard racking systems.

Product Description

HARTING 09032966821 DIN 41612 Connector is a highly reliable and economical PCB backplane signal connector designed for industrial and electronic applications requiring secure 96-pin connections. This connector features a 2.54 mm pitch and Type C/2 wire wrap terminations with Class C2 classification providing excellent signal integrity and durability.

Constructed with copper alloy contacts plated with gold over nickel, the connector ensures low contact resistance and superior conductivity. Its housing is made from polybutylene terephthalate, a thermoplastic resin reinforced with glass fibre, ensuring strong mechanical stability and heat resistance.

The connector supports a current rating of 2A per contact and operates reliably in harsh environments with temperatures ranging from -55°C to 125°C. Its through hole mount type provides a secure fit on PCBs used in backplane and rack systems conforming to DIN 41612 standards, widely used in industrial, manufacturing, telecommunications, and railway electronics.

This 3-row female connector features straight orientation with A/B/C row loading, suitable for complex wiring harnesses. The maximum contact resistance is limited to 20 milliohms, minimizing losses in critical signal paths. Mating is designed to engage first at positions a1 and a31, optimized for reliable connection cycles.

Durable copper alloy contacts with gold over nickel plating for corrosion resistance. Thermoplastic resin housing with glass fibre reinforcement for ruggedness. Wide operating temperature range for industrial environments.

Compliant with DIN 41612 standard, ideal for 19in Eurocard racking systems. Through hole mounting enhances PCB mechanical stability. Class C2 wire wrap termination for secure and reliable connections. Designed for high mating cycles ensuring long service life.

Ideal for industrial, laboratory, manufacturing, telecommunications, and railway applications. Supports 96 contacts arranged in 3 rows with 2.54 mm pitch spacing. Explore EnvMart for a broad range of HARTING connectors and industrial electronic components that meet rigorous quality and performance standards.
