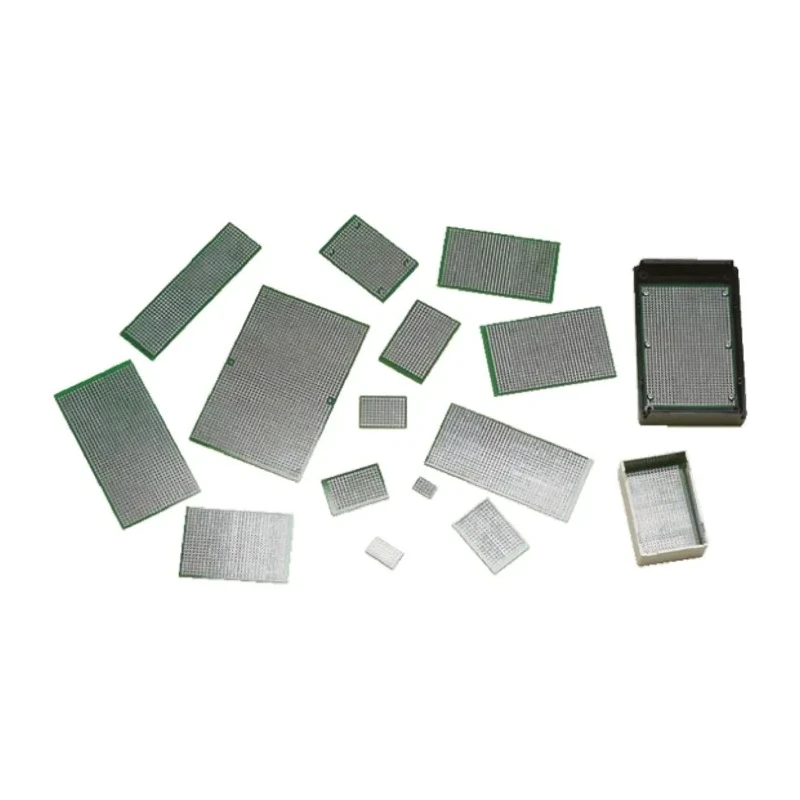

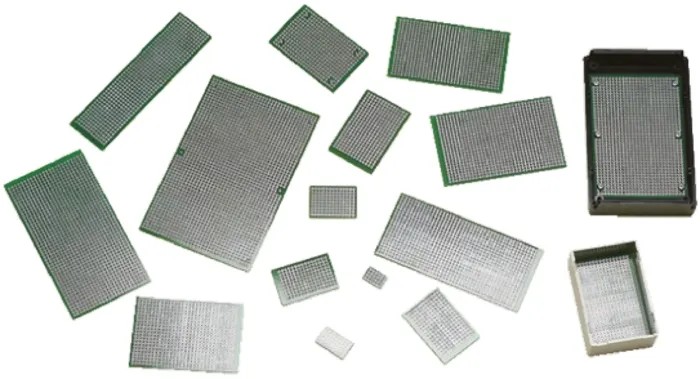

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 94mm x 59mm TNF59-94

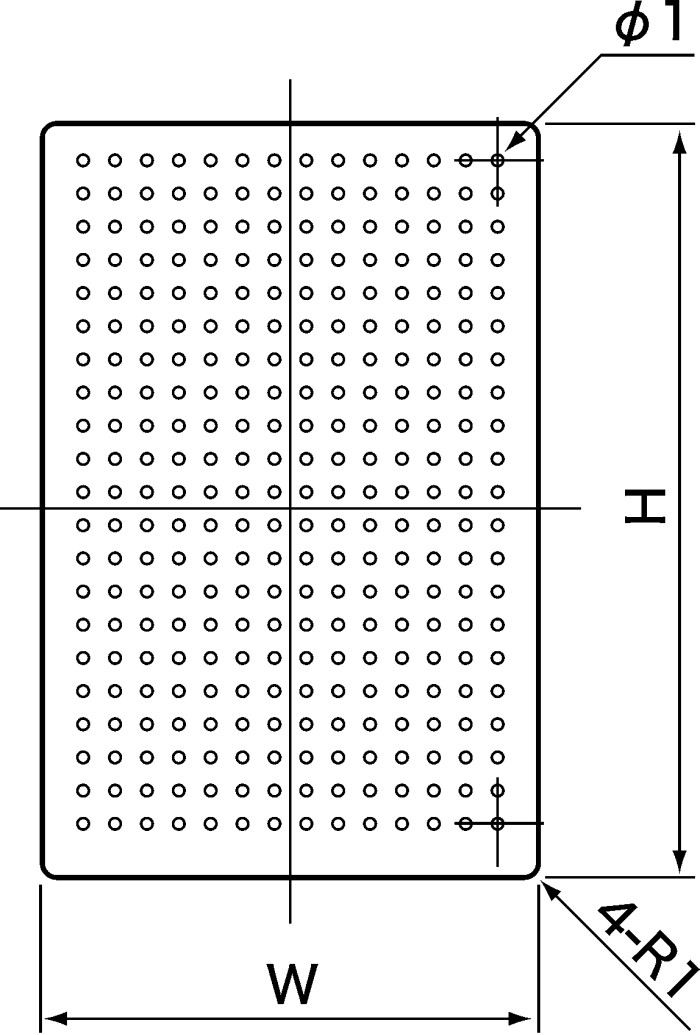

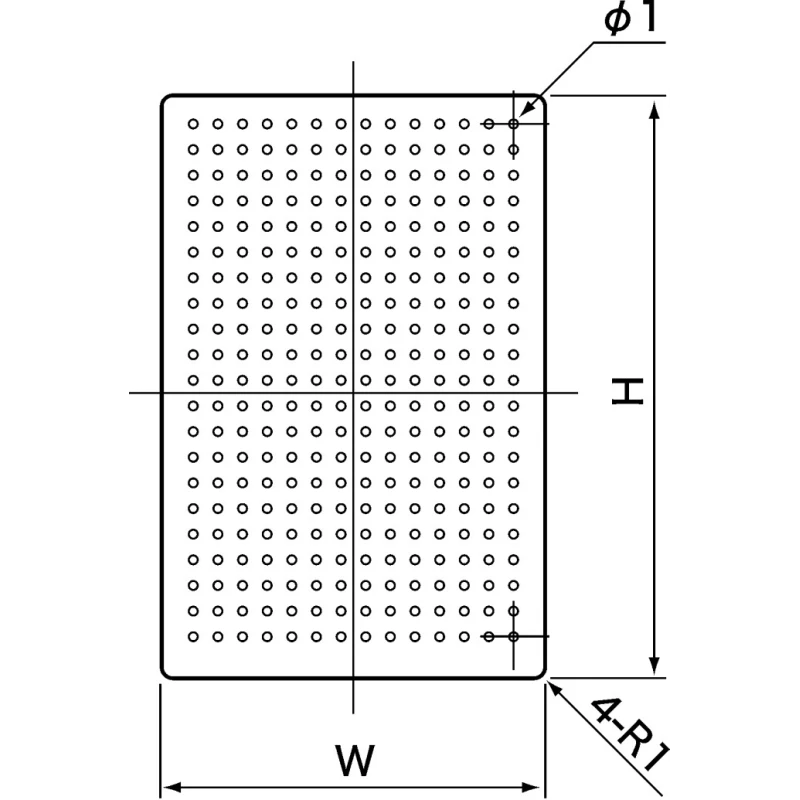

Takachi Electric Industrial TNF59-94 is a high-quality 2-sided Surface Mount Technology (SMT) board manufactured with FR4 epoxy glass fabric laminate. Measuring 94 mm in length and 59 mm in width, this prototyping board features a precise hole pitch of 2.54 mm and 1 mm diameter holes arranged in a 22 by 35 layout. It has a robust 1.6 mm thickness providing mechanical strength suitable for mounting components in electronic assembly and development projects.

This universal prototyping board is perfectly sized to fit SW and SS series cases and is equipped with through holes on both sides. Its FR4 grade material ensures excellent insulation properties and durability, making it ideal for various industrial, laboratory, and electronic device manufacturing applications.

Designed to comply with RoHS standards, the TNF59-94 board supports environmentally conscious production processes. It provides a wealth of mounting options including compatibility with board-attached spacers and optional components for adaptable prototype configurations.

Applications of this board encompass electronic circuit prototyping, SMT device assembly, and experimental electronics design, making it a versatile choice for engineers, technicians, and developers.

Double-sided surface mount board ideal for PCB prototyping and electronic assembly. Manufactured from high-quality FR4 epoxy glass fabric laminate for durability and stability. Features 22 x 35 layout of 1 mm diameter holes with 2.54 mm pitch for versatile component placement.

Board dimensions are 94 mm length, 59 mm width, and 1.6 mm thickness suitable for SW and SS series cases. Complies with RoHS standards ensuring environmentally safe manufacturing. Universal board compatible with a variety of electronic components and spacers.

Country of origin: Japan, ensuring premium manufacturing quality. Perfect for industrial, laboratory, and electronics prototyping uses. Explore the wide range of electronic prototyping boards and components available at EnvMart to support your production and development needs.
