Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 With 24 x 45 1 mm Holes, 2.54 mm Pitch, 119 mm x 63 mm TNF63-119

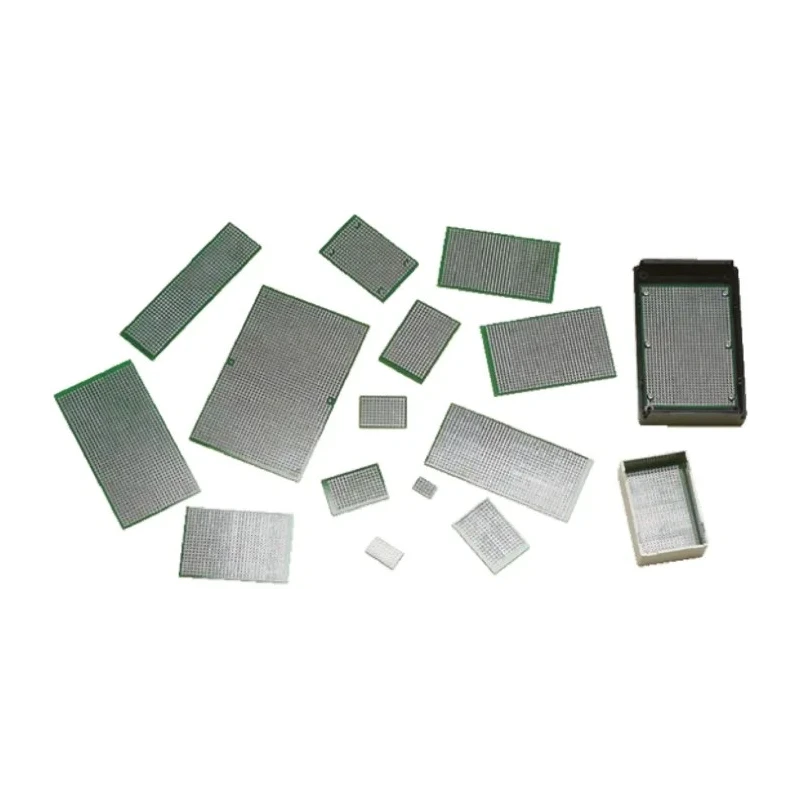

Takachi Electric Industrial TNF63-119 is a high-quality, new surface mount (SMT) prototyping matrix board made from FR4 epoxy glass fabric laminate. The board supports dual-sided component mounting with 24 x 45 holes, each 1 mm in diameter, arranged at a 2.54 mm pitch. Measuring 119 mm in length, 63 mm in width, and 1.6 mm thick, it provides a perfect universal platform for various electronic assembly and prototyping tasks.

This board is designed for industrial, laboratory, and electronic development use, compatible with SW and SS series cases. Its FR4 material grade ensures strong electrical insulation and reliable mechanical strength, suitable for consistent manufacturing and application in rigorous environments. The RoHS compliance guarantees environmental safety and regulatory adherence.

The hole layout and pitch allow precise and stable mounting of electronic components, making this board ideal for surface mount technology needs during prototype testing or small production runs. Its durable epoxy composition prevents damage and wear during assembly cycles.

A wide range of attached spacers and optional components enhance the board's flexibility, enabling users to customize mounting solutions for different electronic configurations. The product is engineered and manufactured in Japan, reflecting stringent quality standards and manufacturing precision.

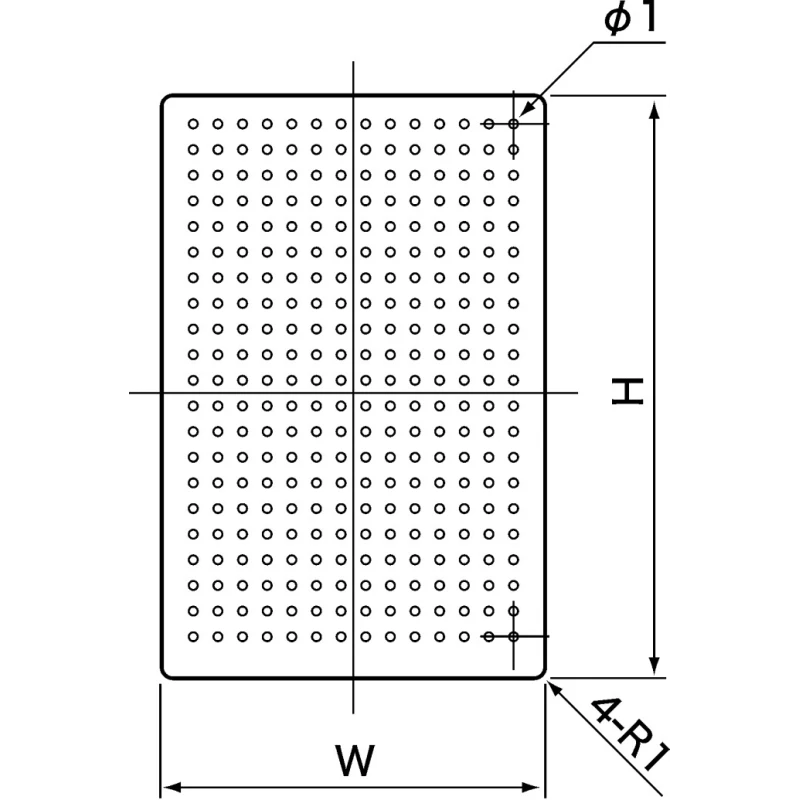

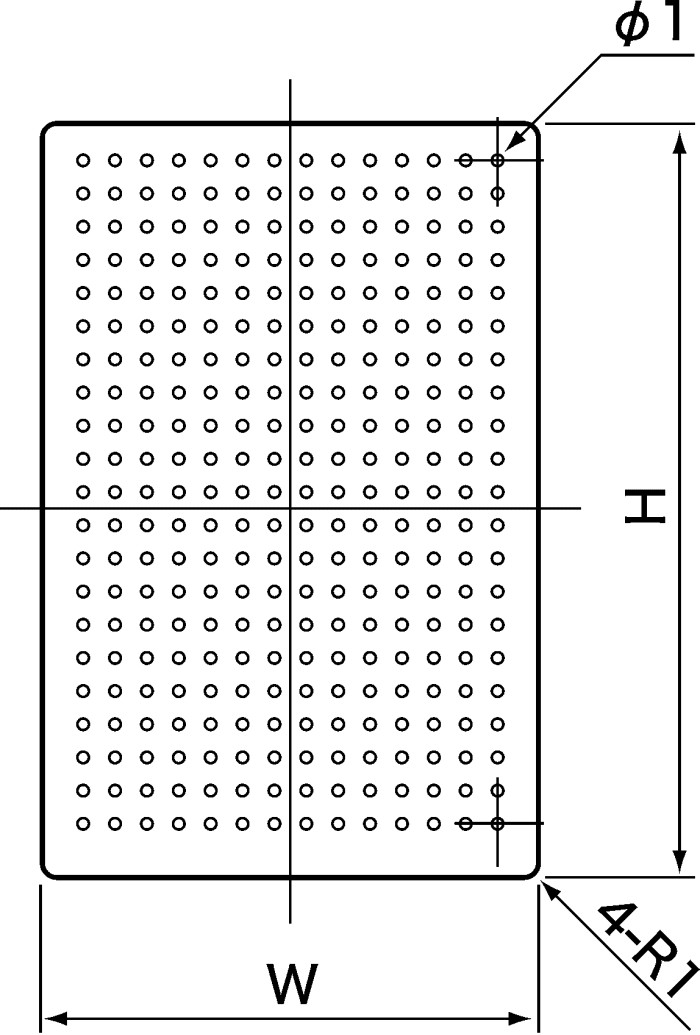

The board measures 119 mm length by 63 mm width suitable for compact electronic designs. It has 24 x 45 holes of 1 mm diameter ensuring consistent component placement. Made from FR4 epoxy glass fabric laminate for strength and insulation.

2-sided surface mount design enhances flexibility in circuit prototyping. Complies with RoHS standards to meet environmental and safety requirements. Compatible with SW and SS series cases supporting versatile applications.

Manufactured in Japan assuring quality and compliance. Choose this Takachi Electric Industrial TNF63-119 matrix board for reliable, standard-compliant, and flexible electronic prototyping and mounting needs on EnvMart.
