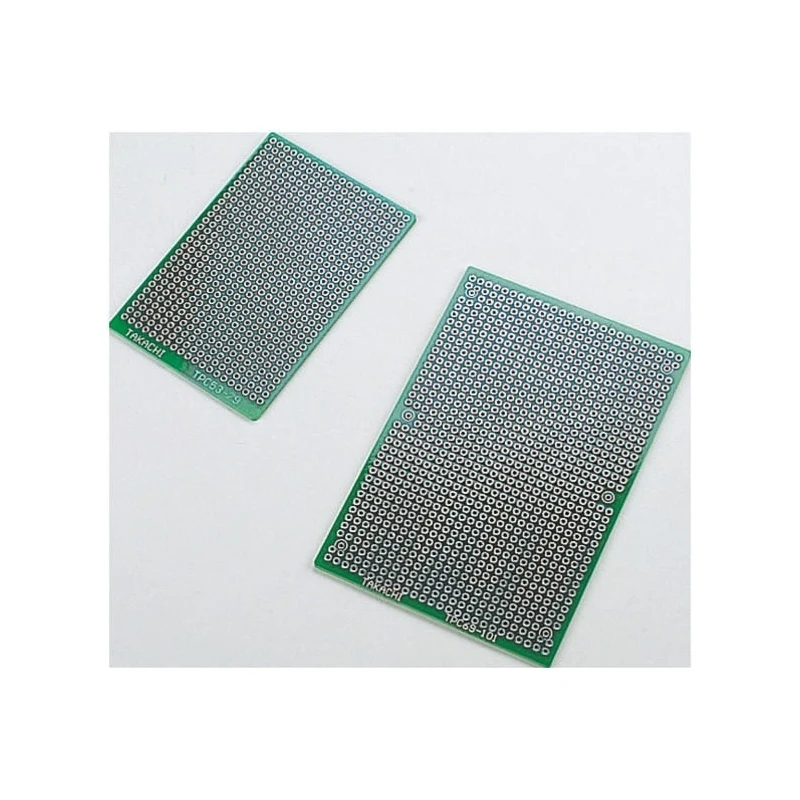

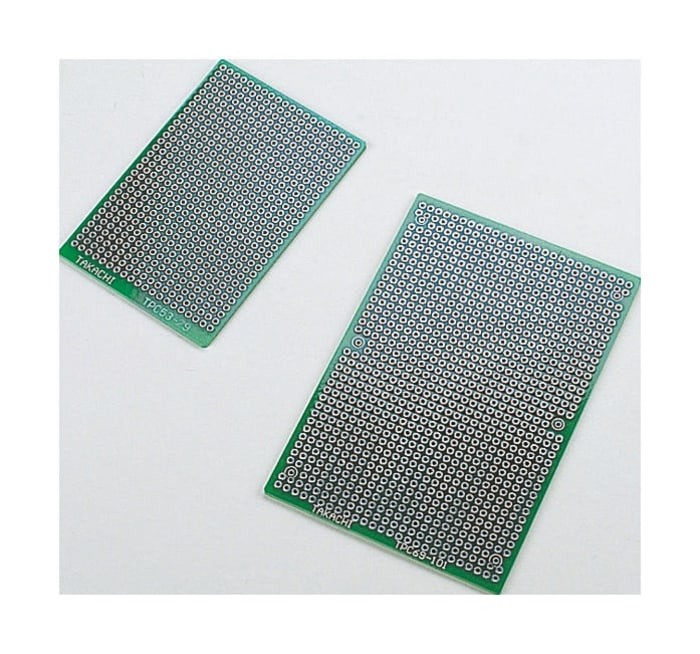

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 101 mm x 69 mm, 26 x 38 1 TNF69-101

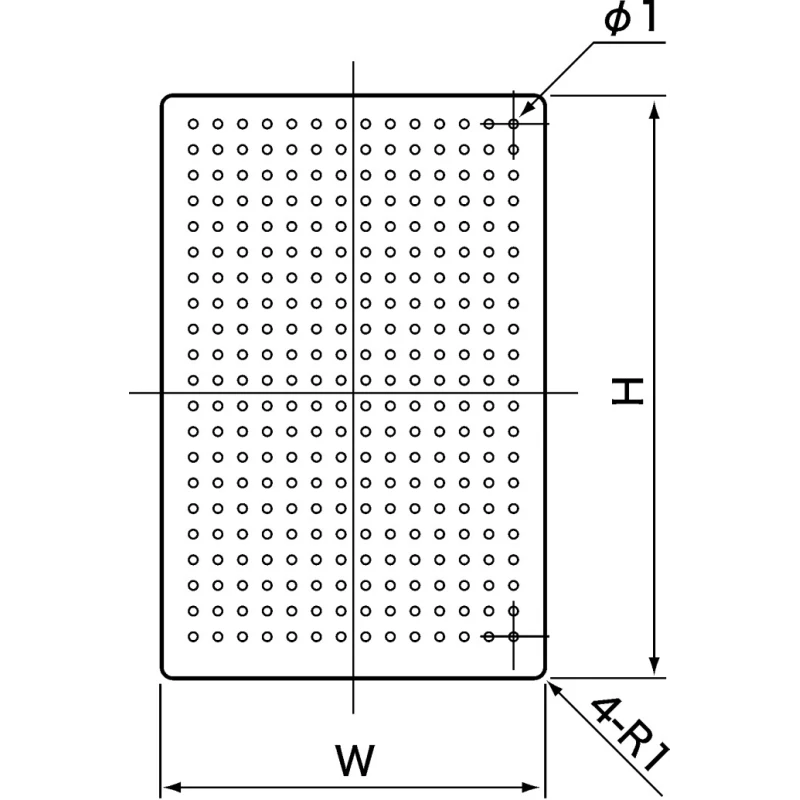

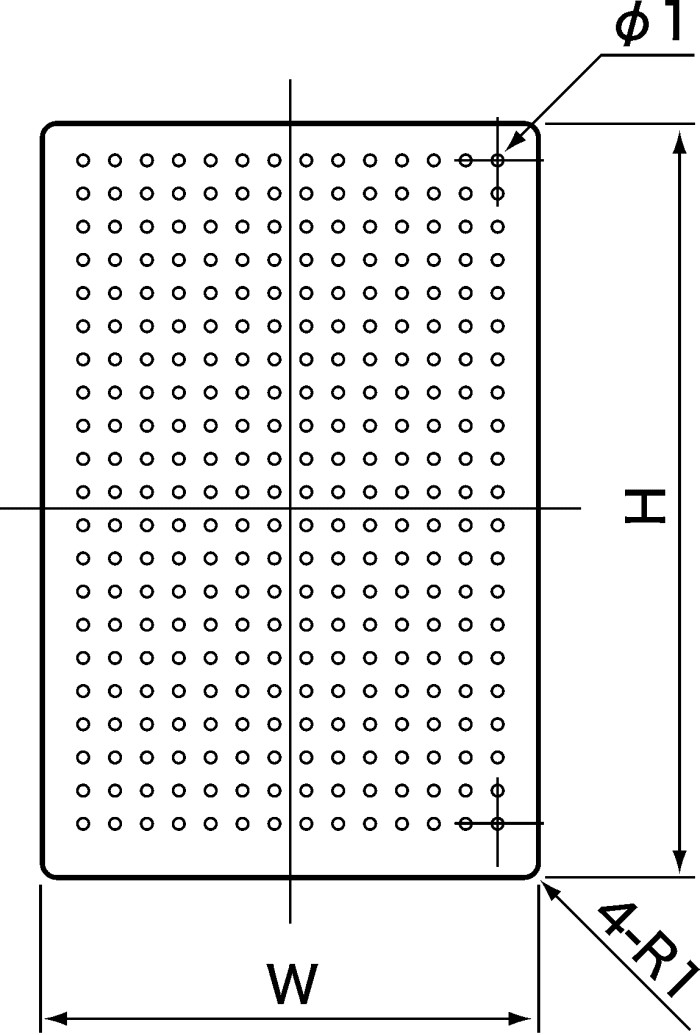

Takachi Electric Industrial TNF69-101 2 Surface Mount (SMT) Board is fabricated from high-quality FR4 epoxy glass fabric laminate ensuring excellent electrical insulation and mechanical strength. Measuring 101 mm in length and 69 mm in width, this board is perfectly sized for SW and SS series cases, making it ideal for prototyping and custom electronic assemblies. The board features a 26 x 38 hole layout with 1 mm diameter holes on both sides and a consistent 2.54 mm pitch designed for compatibility with standard surface mount technology components.

The robust 1.6 mm thickness provides mechanical stability while the universal design allows versatile application in electronics prototyping, testing, and low-volume production runs. The board is RoHS compliant, ensuring adherence to environmental and safety regulations, which is critical in industrial and commercial electronic manufacturing environments.

This prototyping board is manufactured in Japan, reflecting high quality and reliability standards. Its epoxy glass fabric laminate construction provides excellent durability and resistance to wear and environmental factors, making it suitable for industrial, laboratory, and manufacturing settings.

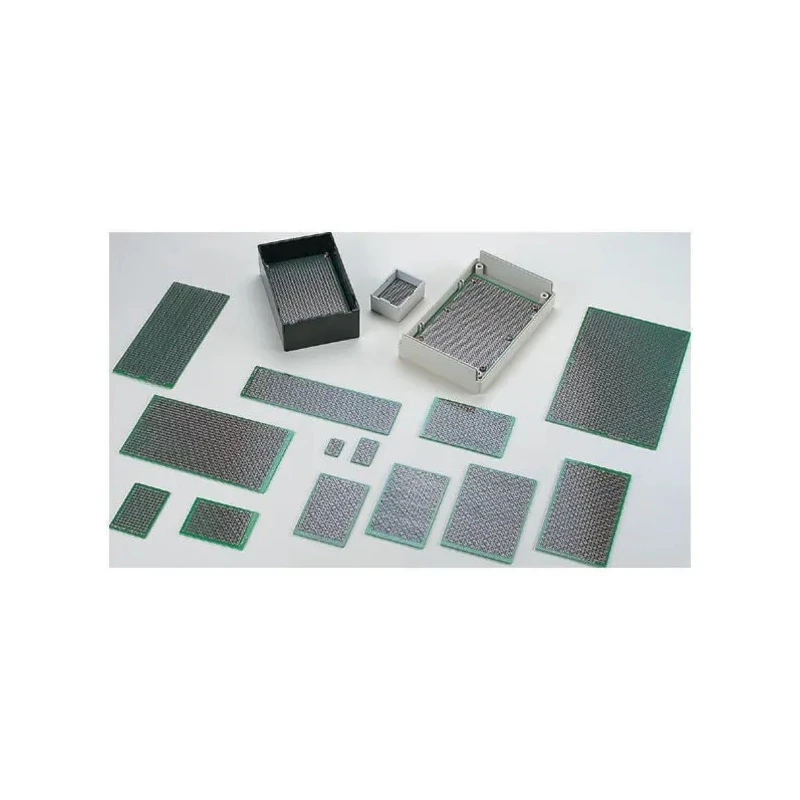

Universal board suitable for SW and SS series cases. Constructed with durable FR4 grade epoxy glass fabric laminate. Features 26 x 38 layout of 1 mm diameter holes on both sides. Standard 2.54 mm pitch for through holes ensuring compatibility with SMT components.

Board thickness measures 1.6 mm for robust mechanical stability. Certified RoHS compliant meeting environmental and safety standards. Manufactured in Japan for assured quality and reliability.

This surface mount prototyping board is ideal for electronics development, testing, and assembly in industrial, educational, and R&D laboratories. It supports a broad range of circuit configurations due to its standardized hole pitch and hole layout, making it a versatile choice for electronics professionals. Explore additional high-quality electronic components and prototyping boards at EnvMart for all your industrial and development needs.
