Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 1.6mm Thickness 66mm x 43mm TNF43-66

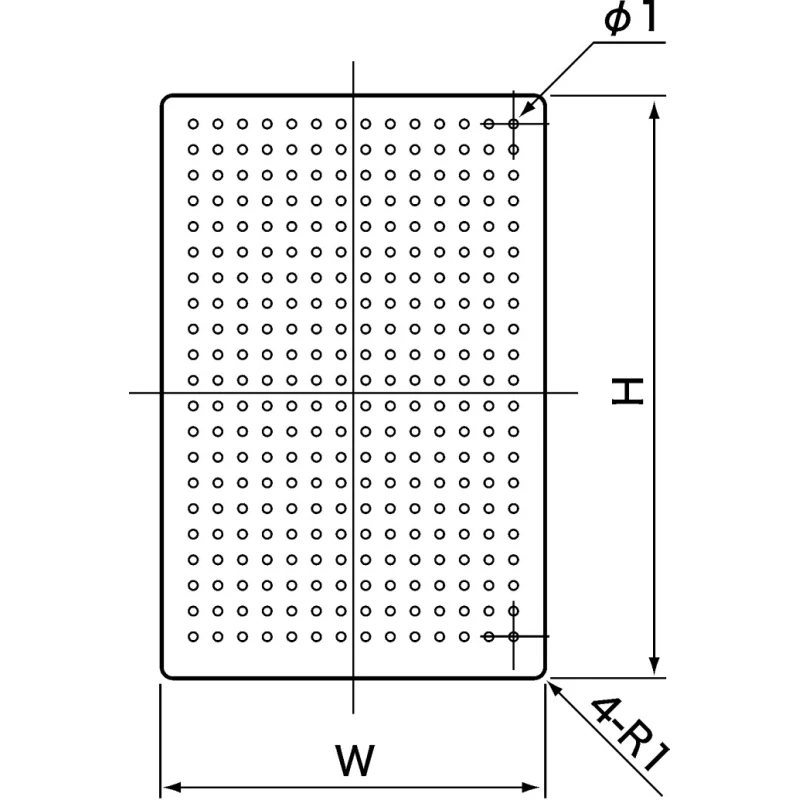

Takachi Electric Industrial TNF43-66 is a high-quality 2 surface mount (SMT) prototyping board made from epoxy glass fabric laminate with FR4 grade material. Featuring 1.6 mm board thickness and an arrangement of 16 x 24 holes with 1 mm diameter spaced at 2.54 mm pitch, it provides a reliable and versatile platform for electronic component mounting.

This universal board is perfectly sized at 66 mm length and 43 mm width, making it compatible with SW and SS series cases. The double-sided design with through holes on both sides allows flexible circuit prototype assembly using surface mount technology and through-hole components.

The board meets RoHS compliance, ensuring environmentally responsible manufacturing. Produced in Japan, it reflects high standards of quality and precision for industrial electronics prototyping, cleanroom, ESD control, and PCB prototyping environments.

Manufactured from durable FR4 epoxy glass fabric laminate material. Precise 16 x 24 hole layout with 1 mm hole diameter and 2.54 mm pitch. Compact dimensions of 66 mm length by 43 mm width suitable for various cases. Double-sided SMT board with through holes for versatile mounting options.

RoHS compliant for environmental and safety standards. Ideal for use in industrial, laboratory, and manufacturing prototyping. Compatible with Takachi SW and SS series mounting cases. Japanese origin guarantees premium quality and manufacturing standards.

This product is an essential component in prototyping boards for applications in industrial electronics assembly, cleanroom environments, and ESD sensitive setups. It supports precise surface mount and through-hole component placement for circuit development and testing.
