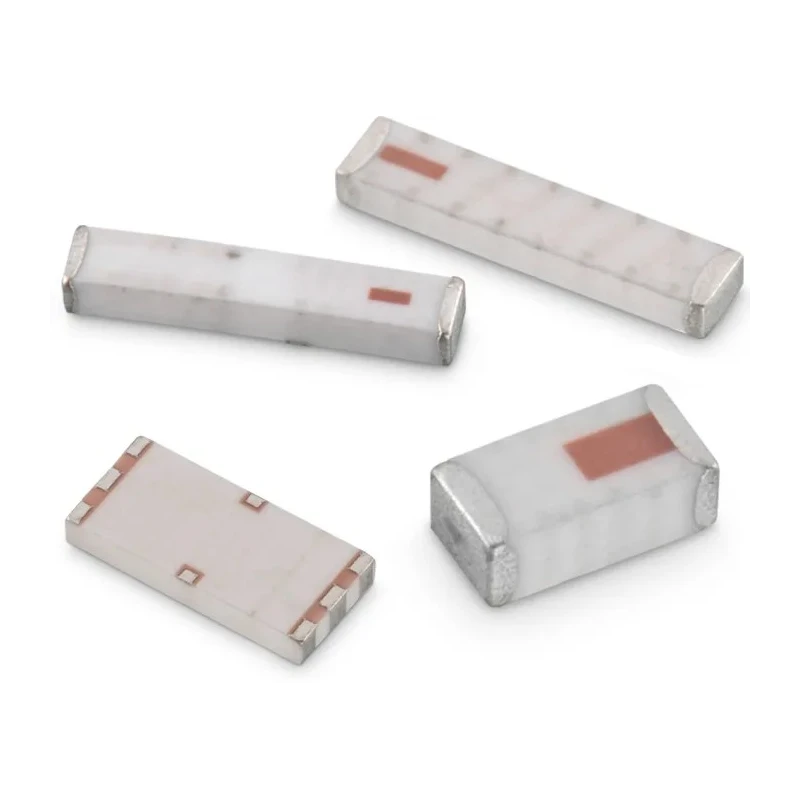

Wurth Elektronik Internal SMT Antenna WE‑MCAA 2.4-2.5 GHz Bandwidth 2.5 dBi Gain 74889502450

Name: Wurth Elektronik Internal SMT Antenna WE‑MCAA 2.4-2.5 GHz Bandwidth 2.5 dBi Gain 74889502450
Brand: Wurth Elektronik
SKU: 114235



Category Antenna Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Connection Type	Solder
Bandwidth	2.5GHz
Series	WE‑MCA
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Gain	2.5dBi
Standards/Approvals	RoHS, REACH, JEDEC, IEC, AEC-Q200
Maximum Frequency	2500MHz
Minimum Frequency	2.4GHz
Internal/External	Internal
Antenna Physical Form	Chip
Antenna Mount Type	Surface
Antenna Internal Construction	LTCC
Number of Bands	1

Key Features

Compact multilayer chip antenna suitable for SMT mounting.
Operates with a bandwidth of 2.5 GHz from 2.4 to 2.5 GHz frequency range.
Provides a peak gain of 2.5 dBi ensuring reliable signal strength.
Designed for internal use with solder connection type and surface mount.
Constructed using LTCC technology for high performance.
Supports application areas like WLAN, WiFi, GPS, cellular communication, and 4G/LTE.
Compliant with standards including RoHS, REACH, JEDEC, IEC, and AEC-Q200.
Operating temperature range from -40°C to 80°C for versatile environments.

Product Description

The Wurth Elektronik 74889502450 internal SMT antenna, part of the WE‑MCAA series, is a compact multilayer chip antenna designed for surface mounting onto PCBs. It offers a frequency bandwidth extending from 2.4 GHz to 2.5 GHz, making it suitable for numerous wireless communication applications including smart home devices, WLAN/WiFi networks, GPS/GNSS systems, cellular communications, and 4G/LTE technologies.

Constructed using LTCC internal technology, this antenna delivers a peak gain of 2.5 dBi with an omni-directional radiation pattern, ensuring strong and consistent signal transmission. The solder connection and surface mount type enable ease of integration into electronic circuits with minimal ground clearance requirements.

Its robust design supports a broad operating temperature range from -40 degrees Celsius up to 80 degrees Celsius, making it ideal for use in diverse industrial, commercial, and residential settings. Additionally, the antenna complies with essential quality and safety standards including RoHS, REACH, JEDEC, IEC, and AEC-Q200.

The extremely low profile and small form factor represent the smallest chip antenna size in the industry, providing an excellent size-to-performance ratio essential for compact electronic devices.

Compact multilayer chip antenna suitable for SMT mounting. Frequency range of 2.4 to 2.5 GHz bandwidth supports diverse wireless applications. 2.5 dBi peak gain with omni-directional radiation pattern for uniform signal coverage.

Surface mount type with solder connection for easy PCB integration. LTCC internal construction technology for enhanced performance. Wide operating temperature range from -40°C to 80°C meets industrial requirements. Standards compliant: RoHS, REACH, JEDEC, IEC, AEC-Q200 ensuring high quality.

Suitable for RF applications such as WLAN, WiFi, GPS, cellular communication, and 4G/LTE. Extremely low profile and industry smallest form factor enable compact designs.

This Wurth Elektronik antenna is ideal for engineers and designers developing wireless communication solutions who require a reliable, high-performance, surface-mount antenna with a small footprint.

Explore the range of Antennas and other electronic components in the Electronics & Electricals category at EnvMart for professional industrial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates within a frequency range of 2.4 GHz to 2.5 GHz, providing a bandwidth of 2.5 GHz.

The antenna provides a peak gain of 2.5 dBi, ensuring reliable signal strength for various applications.

It features a solder connection type, which allows for easy integration onto PCBs through surface mounting.

This antenna is constructed using LTCC (Low Temperature Co-fired Ceramic) technology, which enhances its performance.

It complies with several standards including RoHS, REACH, JEDEC, IEC, and AEC-Q200, ensuring adherence to quality and safety requirements.

The antenna is designed as a chip, specifically a compact multilayer chip antenna suitable for SMT mounting.

It is suitable for a variety of wireless communication applications, including WLAN, WiFi, GPS, cellular communication, and 4G/LTE.

This model belongs to the WE‑MCAA series, which is known for its compact and efficient design.

The antenna supports a single band, making it focused for specific applications within its frequency range.

Specific dimensions and weight details are not provided; however, it is noted for its extremely low profile and small form factor, which is among the smallest in the industry.

This model requires surface mounting, allowing it to be integrated directly onto printed circuit boards (PCBs).
