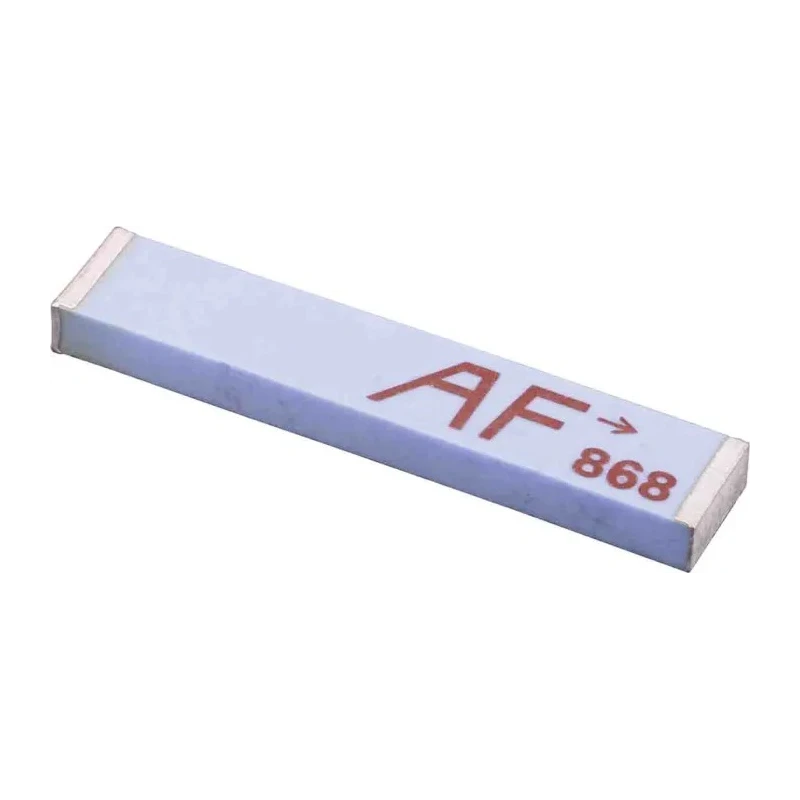

Linx Internal SMT Antenna ISM Band 863-873MHz 0.5dBi Gain RoHS Compliant ANT-868-CHP-T
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Linx |
| Model | ANT-868-CHP-T |
| Connection Type | Solder |
| Bandwidth | 10MHz |
| Series | CHP |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Gain | 0.5dBi |
| Standards/Approvals | RoHS Compliant |
| Maximum Frequency | 873MHz |
| Minimum Frequency | 863MHz |
| Internal/External | Internal |
| RF Protocols | ISM Band |
| Antenna Physical Form | Chip |
| Antenna Mount Type | Surface |
| Antenna Internal Construction | LTCC |
| Number of Bands | 1 |
Key Features
- Operates from 863 to 873 MHz frequency range.
- Provides a gain of 0.5 dBi with low loss design.
- Constructed with advanced LTCC technology for durability and efficiency.
- Surface mount type designed for internal integration.
- Wide operating temperature range from -40°C to 85°C.
- Impedance of 50 ohms for compatibility with common RF circuits.
- RoHS compliant, ensuring environmental and safety standards.
Product Description
The Linx ANT-868-CHP-T is an internal SMT antenna designed specifically for ISM Band wireless applications, including Bluetooth, Zigbee, 802.11, and home RF systems. This chip antenna operates efficiently within the 863 MHz to 873 MHz frequency range, providing a gain of 0.5 dBi. The use of advanced Low Temperature Co-fired Ceramic (LTCC) technology enables a compact and reliable antenna construction, ideal for embedding in miniature wireless devices.
This antenna features a surface mount type design and a characteristic impedance of 50 ohms ensuring excellent matching with RF circuits. It exhibits low loss and wide bandwidth of 10 MHz, supporting stable and consistent signal transmission. Temperature resilience ranges from -40°C to a maximum of 85°C, making it suitable for diverse environmental conditions.
Linx ANT-868-CHP-T is RoHS compliant, meeting strict environmental and safety regulations, and supports single band operation for effective targeted frequency use.
Typical industrial applications include wireless communication devices, IoT modules, telemetry, and embedded RF systems in commercial and laboratory equipment. Its small chip form factor makes it suitable for compact and high-density PCB layouts in modern electronics manufacturing.
Operates in the 863-873 MHz ISM frequency band. Compact chip form utilizing LTCC technology ensures durability. Surface mount suitable for internal device integration. Wide temperature operating range from -40°C to 85°C.
Low loss antenna with 0.5 dBi gain provides efficient signal transmission. 50 ohms impedance matches standard RF circuits for optimal performance. RoHS compliant ensuring environmental and safety standards compliance. Explore the Linx antenna range on EnvMart for advanced and reliable RF Antenna solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within the 863 MHz to 873 MHz frequency range, suitable for ISM Band wireless applications.
The antenna provides a gain of 0.5 dBi, contributing to efficient signal transmission.
It features an internal construction made from Low Temperature Co-fired Ceramic (LTCC), ensuring compactness and reliability.
The antenna has a characteristic impedance of 50 ohms, which is compatible with common RF circuits.
The antenna exhibits a bandwidth of 10 MHz, supporting stable signal transmission.
This model is designed for surface mounting, making it suitable for internal integration in devices.
It is designed for ISM Band RF protocols, making it suitable for various wireless communication applications.
The antenna is manufactured in Taiwan.
Yes, it is RoHS compliant, ensuring it meets strict environmental and safety regulations.
Typical applications include wireless communication devices, IoT modules, telemetry, and embedded RF systems.
It requires a solder connection type for installation.
