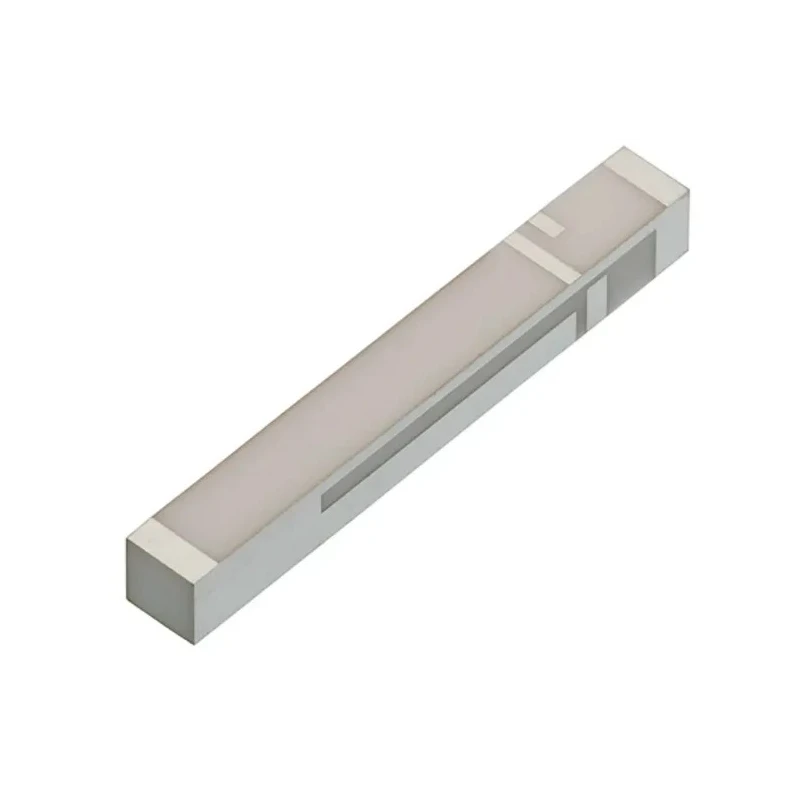

Molex External SMT Wide Band High Performance Antenna 698MHz to 2700MHz, 3.7dBi Gain, Surface Mount 146200-0011
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connection Type | Surface Mount |
| Bandwidth | 2.7GHz |
| Series | 146200 |
| Maximum Operating Temperature | 125°C |
| Gain | 3.7dBi |
| Standards/Approvals | EU ELV Not Relevant, Halogen-Free Status Low-Halogen, EU RoHS China RoHS Compliant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021) |
| Maximum Frequency | 2700MHz |
| Minimum Frequency | 698MHz |
| Internal/External | External |
| Antenna Mount Type | Surface |
| Number of Bands | 2 |
Key Features
- The antenna is designed for surface mount use with linear polarization.
- It supports dual-band operation covering two frequency bands efficiently.
- Constructed using ceramic material for durability and high performance.
- The antenna size is compact at 40mm x 5mm x 5mm for easy PCB integration.
- Operates reliably up to a maximum temperature of 125°C.
- Complies with international standards including EU RoHS, China RoHS, and REACH SVHC regulations.
- Suitable for industrial, telecom, and electronics applications requiring a robust external wideband antenna.
- Manufactured in China ensuring consistent quality control and performance standards.
Product Description
The Molex 146200-0011 is an external Surface Mount Technology (SMT) wide band antenna designed to provide high performance over various frequency bands ranging from 698MHz to 2.7GHz. It features a ceramic construction that enhances durability and signal quality, making it suitable for demanding electronics and telecom industry applications.
With a compact form factor measuring 40mm by 5mm by 5mm, this antenna is ideal for easy placement on printed circuit boards where space is constrained. Its surface mount connection ensures stable and easy integration into complex assemblies with minimal additional hardware.
The antenna delivers a gain of 3.7dBi with linear polarization, supporting two distinct frequency bands that cover modern communication standards efficiently. It is rated to operate safely up to 125°C, allowing usage in environments where heat tolerance is critical.
Compliance with international environmental and safety standards such as EU RoHS, China RoHS, and REACH SVHC confirms its suitability for eco-friendly production and deployment. This product is built to meet rigorous quality benchmarks making it a reliable choice for industrial automation, telecommunications, wireless communication devices, and electronics manufacturing sectors.
The antenna is designed for surface mount installation to enable compact assembly integration. Wide frequency coverage between 698MHz and 2700MHz for multi-band applications. High antenna gain of 3.7dBi improves signal strength and overall system performance.
Constructed from durable ceramic materials ensuring longevity and reliability. Compact dimensions of 40 x 5 x 5 mm for flexible PCB layout design. Rated for operation at temperatures up to 125°C for harsh environment suitability.
Compliant with RoHS and REACH directives to meet environmental safety standards. Dual-band antenna providing versatility across cellular and wireless network bands.
This Molex SMT antenna is widely used in industrial electronics, telecommunications infrastructure, and commercial wireless applications requiring a compact and efficient external antenna solution. It facilitates stable, high-quality wireless connectivity in manufacturing, automation, IoT devices, and telecom equipment.
Explore the complete range of Antennas and electronic components at EnvMart for professional-grade components designed to meet industry demands and enhance system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a frequency range from 698MHz to 2700MHz, making it suitable for various applications in telecommunications and electronics.
It has a gain of 3.7dBi, which enhances signal strength and overall system performance.
The antenna measures 40mm x 5mm x 5mm, allowing for compact integration on printed circuit boards.
This model uses a surface mount connection type, facilitating stable integration into electronic assemblies.
It supports dual-band operation, allowing it to efficiently cover two distinct frequency bands.
The antenna is constructed from ceramic materials, which enhance its durability and signal quality.
Yes, it complies with international standards including EU RoHS, China RoHS, and REACH SVHC regulations.
It is suitable for industrial, telecom, and electronics applications that require a robust external wideband antenna.
The antenna has a bandwidth of 2.7GHz, which supports a wide range of communication standards.
It is manufactured in China, ensuring consistent quality control and performance standards.
This model is classified as an external antenna, designed for surface mount applications.
