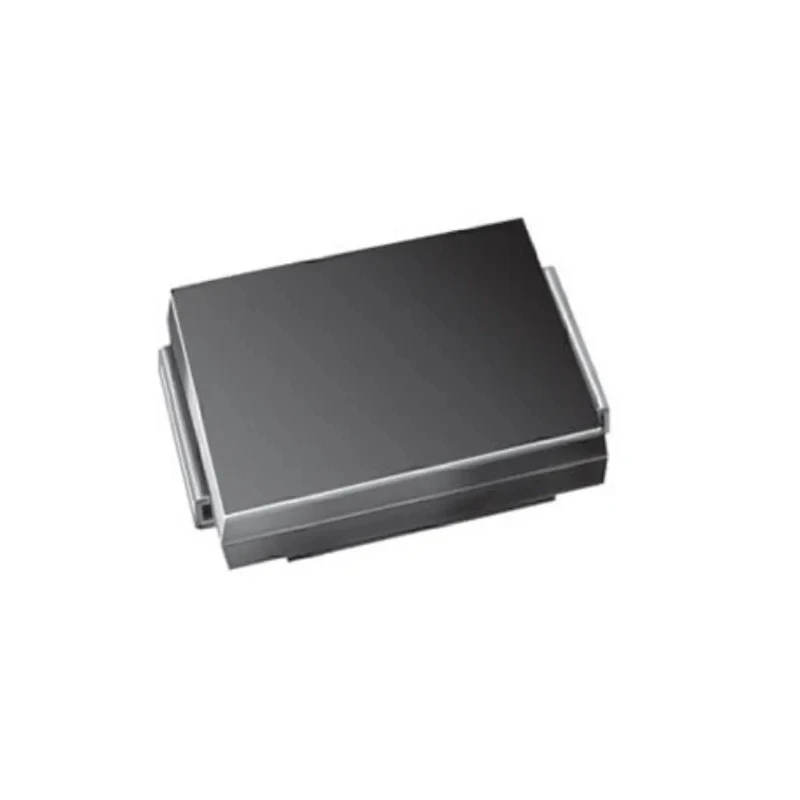

Vishay Bi-Directional TVS Diode 3 kW, Surface Mount, DO-214AB (SMC), 36V, SMC3K36CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | SMC3K36CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 58.1V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 40V |
| Maximum Reverse Stand-off Voltage Vwm | 36V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 51.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Provides robust transient voltage suppression with 3 kW peak pulse power dissipation.
- Bi-directional clamping for sensitive electronics and automotive circuits.
- Maximum reverse stand-off voltage of 36V and clamping voltage of 58.1V.
- Surface mount DO-214AB package supports automated production and efficient PCB integration.
- Operates reliably from -55°C to 150°C for industrial and automotive environments.
- Compliant with RoHS and AEC-Q101 automotive standards.
- Very fast response time and low incremental surge resistance for circuit protection.
- Maximum peak pulse current up to 51.6A, suitable for load switching and lightning protection.
Product Description
Vishay SMC3K36CAHM3_A/H is a high-performance bi-directional transient voltage suppressor (TVS) diode designed for surface mount applications. This diode supports a peak pulse power dissipation of 3 kW, making it ideal for protecting sensitive electronic components against voltage transients such as inductive load switching and lightning surges.
With a reverse stand-off voltage of 36V and a clamping voltage of 58.1V, the SMC3K36CAHM3_A/H delivers reliable protection for circuit components. The DO-214AB (SMC) package allows for integration into automated assembly lines and compact PCB layouts. Operating in extreme conditions from -55°C to 150°C, this TVS diode is suitable for industrial, automotive, computer, consumer, and telecommunication environments.
Bi-directional transient voltage suppression for enhanced circuit safety. 3 kW peak pulse power capability with a 10/1000 μs waveform. Surface mount, DO-214AB (SMC) package for streamlined manufacturing. Maximum peak pulse current of 51.6A for strong surge handling.
Compliant with RoHS and AEC-Q101 automotive standards for safety and reliability. Excellent clamping capability and low incremental surge resistance. Very fast response time minimizes risk to sensitive electronics. Designed for robust protection of ICs, MOSFETs, and sensor units in a wide range of use cases.
The SMC3K36CAHM3_A/H TVS diode is preferred for industrial, laboratory, and automotive circuit protection, meeting rigorous standards and offering easy surface mount installation. Ideal for manufacturing lines, water treatment instrumentation, and commercial electronics where voltage spikes may occur.
Explore the full range of Vishay diodes and circuit protection components in the TVS Diode category on EnvMart for advanced industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMC3K36CAHM3_A/H TVS diode has a peak pulse power dissipation of 3 kW, making it suitable for protecting sensitive electronic components against voltage transients.
This model has a maximum reverse stand-off voltage of 36V, which is critical for its application in circuit protection.
The clamping voltage of this TVS diode is 58.1V, providing reliable protection against voltage spikes.
It operates reliably within a temperature range of -55°C to 150°C, making it suitable for various industrial and automotive environments.
The maximum peak pulse current for the SMC3K36CAHM3_A/H is 51.6A, which allows it to handle strong surge conditions effectively.
This model uses a DO-214AB (SMC) package type, which supports automated production and efficient PCB integration.
Yes, it is compliant with RoHS and AEC-Q101 automotive standards, ensuring safety and reliability in its applications.
The dimensions of this diode are 6.22mm in height, 7.11mm in length, and 2.62mm in width.
This model supports surface mounting, which is ideal for compact PCB layouts and automated assembly processes.
The SMC3K36CAHM3_A/H is a bi-directional diode, providing transient voltage suppression for both polarities in circuit protection applications.
This TVS diode is suitable for applications in industrial, automotive, computer, consumer electronics, and telecommunication environments, where voltage spikes may occur.
The minimum breakdown voltage for the SMC3K36CAHM3_A/H is 40V, which is essential for its operation in transient voltage suppression.
