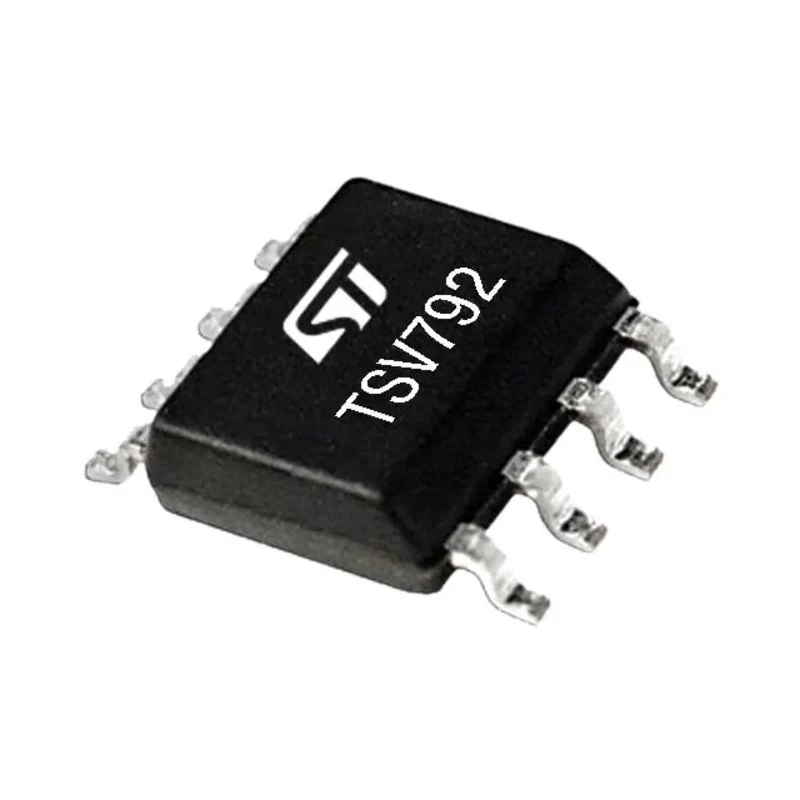

STMicroelectronics Operational Amplifier Dual Channel 50 MHz Gain Bandwidth Product 5.5V SO8 Package TSV792IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSV792IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSV792 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 20 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 75 pA |
Key Features
- Features a rail-to-rail input stage and output for wide dynamic range.
- Stable unity gain amplifier ideal for signal amplification applications.
- Operates with supply voltage up to 5.5 V suitable for low voltage circuits.
- Offers high slew rate of 30 V/μs ensuring fast response times.
- Wide operating temperature range from -40°C to 125°C applicable for automotive use.
- Low input bias current of 20 pA enabling precise low current measurements.
- Compact SO8 surface mount package measuring 5 mm length, 4 mm width, and 1.75 mm height.
- Complies with RoHS standards and conforms to automotive AEC-Q100 standard.
Product Description
STMicroelectronics TSV792IDT operational amplifier is a dual channel device featuring a 50 MHz gain bandwidth product designed for surface mount applications with an 8-pin SO package.
This amplifier incorporates rail-to-rail input and output stages, providing an extended dynamic range essential for precision signal processing in industrial, automotive, and instrumentation applications.
It operates on supply voltages up to 5.5 V with an excellent slew rate of 30 V/μs, allowing rapid signal transitions and maintaining signal integrity in demanding environments. The device offers a low input bias current of 20 pA and an input offset voltage of 700 μV, ensuring high accuracy in sensing and amplification of small signals.
Designed to meet automotive-grade reliability, it supports operating temperatures from -40°C to 125°C and complies with the AEC-Q100 standard. This SO8 packaged device measures 5 mm in length, 4 mm in width, and 1.75 mm in height, permitting compact PCB designs.
Common application areas include industrial control systems, automotive electronics, measurement instrumentation, and other fields requiring precise, low-noise amplification. Features a rail-to-rail input stage and output enhancing dynamic range.
Unity gain stable for versatile amplifier configurations. Wide temperature range suitable for harsh environmental conditions. Compliant with RoHS and automotive AEC-Q100 standards. Low input bias current and offset voltage for accuracy in signal measurement.
Compact SO8 package for space-constrained applications. Dual channel operational amplifier enabling multi-signal processing. This product belongs to STMicroelectronics’ TSV792 series of operational amplifiers, widely appreciated for their performance in semiconductor applications.
Explore more Operational Amplifiers and semiconductor components in the Electronics & Electricals category on EnvMart for robust design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV792IDT operational amplifier features a gain bandwidth product of 50 MHz, making it suitable for high-frequency applications.
This model can operate with a maximum supply voltage of 5.5 V, suitable for low voltage circuits.
It operates over a wide temperature range from -40°C to 125°C, making it applicable for automotive and industrial environments.
The SO8 package of the TSV792IDT measures 5 mm in length, 4 mm in width, and 1.75 mm in height, allowing for compact PCB designs.
This operational amplifier has a slew rate of 30 V/μs, ensuring fast response times for signal transitions.
This model is a dual channel operational amplifier, enabling multi-signal processing capabilities.
The input bias current for this operational amplifier is 20 pA, which allows for precise low current measurements.
It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
This operational amplifier is designed for surface mounting, making it suitable for compact electronic designs.
The input offset voltage of the TSV792IDT is 700 μV, contributing to its high accuracy in signal amplification.
This operational amplifier complies with RoHS standards, ensuring it meets environmental regulations.
Common application areas for this model include industrial control systems, automotive electronics, and measurement instrumentation.
