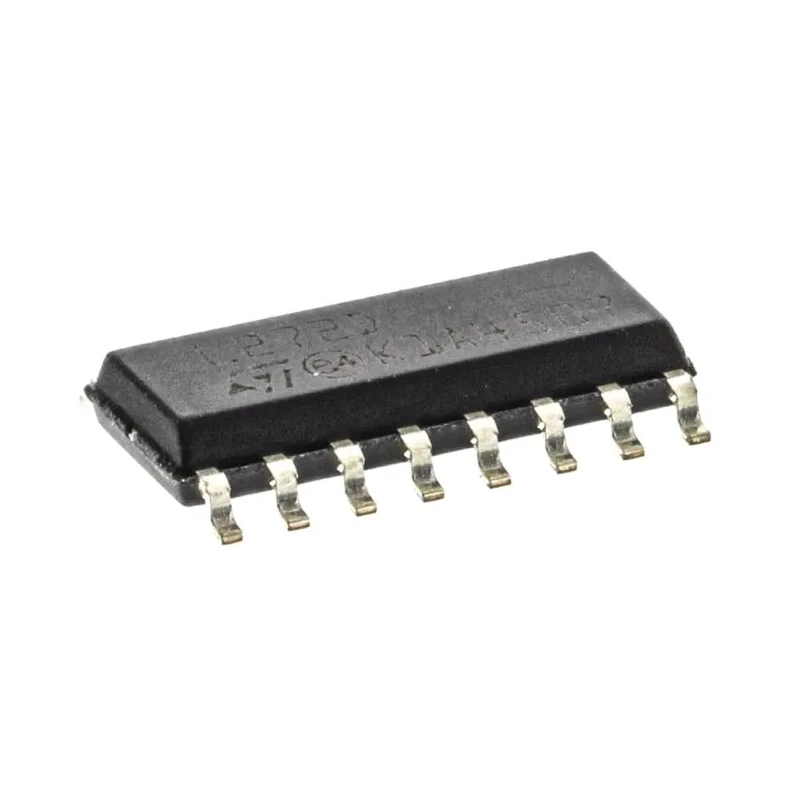

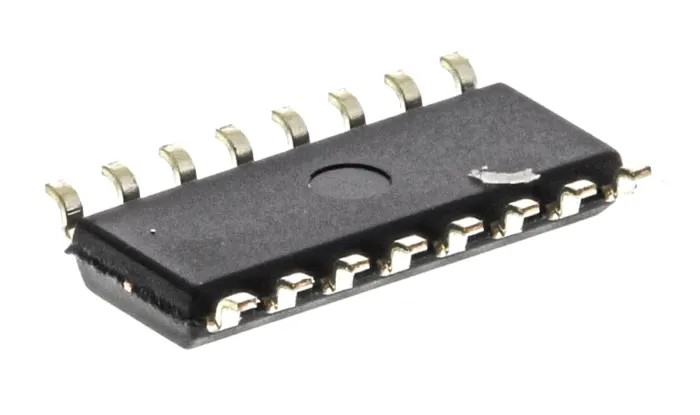

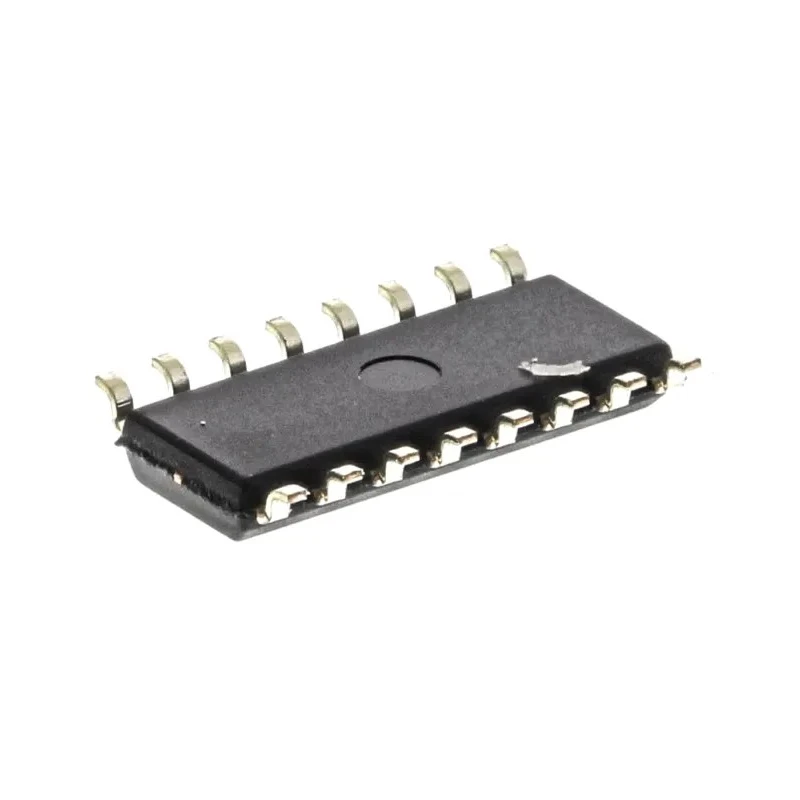

STMicroelectronics Operational Amplifier Dual Power, 350 kHz Gain Bandwidth, 16-Pin SOIC, 5-28V L272D
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 10mm |
| Model | L272D |
| Width | 4mm |
| Mount Type | Surface |
| Series | L272 |
| Output Current | 1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 2.5 μA |
| Vos - Input Offset Voltage | 60 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 250 nA |
Key Features
- High gain operational amplifier suitable for power supply and servo applications.
- Surface mount type with SOIC package for compact PCB integration.
- Operates over a voltage range of 5V to 28V ensuring versatile use.
- Offers a bandwidth of 350kHz for efficient signal amplification.
- Features low input bias current of 2.5 µA and low input offset current of 250 nA.
- Temperature operating range from -40°C to 85°C for industrial applications.
- Input offset voltage of 60 mV and slew rate of 1 V/µs for precise signal control.
- Dual channel operational amplifier with output current capability of 1 A.
Product Description
STMicroelectronics L272D is a dual power operational amplifier designed for industrial and electronic applications requiring high gain and output power. Featuring a gain bandwidth product of 350 kHz, this device suits applications such as servo amplifiers, power supplies, and other precision amplification tasks.
The operational amplifier is surface mountable with its 16-pin SOIC package, facilitating efficient PCB layout and reducing space. It operates reliably within a wide voltage supply range of 5V to 28V, ensuring adaptability in various circuit designs.
STMicroelectronics L272D offers excellent low input bias current of 2.5 µA and input offset current of just 250 nA, delivering stable and accurate signal amplification. The device also has a low input offset voltage of 60 mV and a slew rate of 1 V/µs, enabling fast response with minimal distortion.
Operating temperature ranges from -40°C to 85°C, supporting use in harsh industrial environments. It provides an output current of up to 1 A, allowing it to drive loads that require considerable power. The compact size of 10mm length, 4mm width, and 1.65mm height makes it suitable for space-constrained electronic assemblies.
Designed to meet RoHS compliance, the L272D ensures environmentally friendly manufacturing and usage. This operational amplifier is ideal for precise electronic control systems, instrumentation, and power management in industrial, laboratory, and manufacturing environments.
High gain dual power Operational Amplifier for industrial use. Compact SOIC surface mount package fitting small footprint PCBs. Wide operating voltage range from 5 V to 28 V. Low input bias and offset currents for precision amplification.
Wide temperature range (-40°C to 85°C) suitable for harsh conditions. High output current capacity of 1 A for demanding load drives. Compliant with RoHS environmental standards. Small physical dimensions optimize PCB space usage.
Explore further components and amplifiers in the Electronics & Electricals category to enhance your project or manufacturing line at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the L272D operational amplifier is 350 kHz, making it suitable for various amplification tasks.
This operational amplifier operates over a voltage range of 5V to 28V, allowing for versatile use in different circuit designs.
The L272D can provide an output current of up to 1 A, enabling it to drive loads that require considerable power.
The dimensions of this model are 10mm in length, 4mm in width, and 1.65mm in height, making it suitable for compact PCB layouts.
The input bias current for the L272D is 2.5 µA, which contributes to its precision in signal amplification.
The L272D operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications in harsh environments.
The input offset voltage of this operational amplifier is 60 mV, which is important for maintaining signal accuracy.
This model features two channels, making it a dual power operational amplifier for various applications.
The slew rate of the L272D is 1 V/µs, allowing for fast response times in signal processing.
The L272D is packaged in a 16-pin SOIC format, which is suitable for surface mounting on PCBs.
Yes, the L272D is compliant with RoHS standards, ensuring environmentally friendly manufacturing and usage.
The L272D is suitable for applications such as servo amplifiers, power supplies, and other precision amplification tasks.
