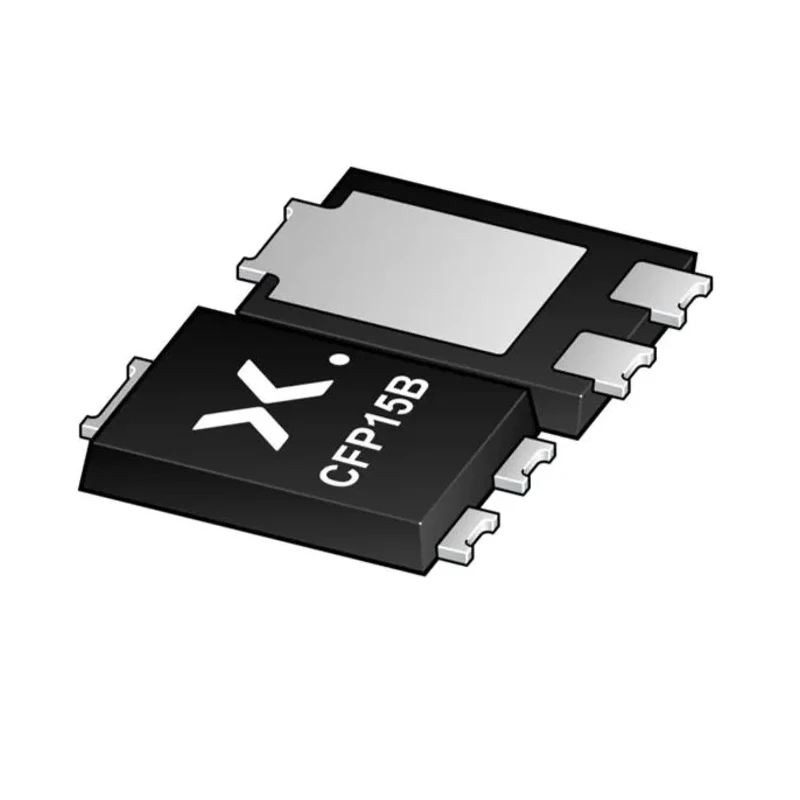

Nexperia 60 V 2 A Schottky Barrier Rectifier Trench MEGA, 3-Pin CFP15B, Surface Mount PMEG060T040CLPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Model | PMEG060T040CLPE-QZ |
| Mount Type | Surface |
| Series | PMEG060T040CLPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Reverse Current Ir | 1.2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 620mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Operates at a maximum continuous forward current of 2 A.
- Features a peak reverse repetitive voltage of 60 V for robust performance.
- Utilizes Trench MEGA Schottky technology for low forward voltage and leakage current.
- Designed with a 3-pin configuration and single diode setup.
- Surface mount CFP15B package enables compact integration onto PCBs.
- Maximum forward voltage is 620 mV, ensuring efficient rectification.
- Lowest peak reverse current at 1.2 μA minimizes energy losses.
- Automotive grade with AEC-Q101 approval for reliability in demanding environments.
Product Description
Nexperia PMEG060T040CLPE-QZ 60 V 2 A Schottky Barrier Rectifier provides advanced performance in modern power electronics, featuring Trench MEGA Schottky technology for exceptional efficiency and low leakage current. With a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 60 V, this rectifier is engineered for reliable operation in DC-to-DC conversion, switch mode power supply, reverse polarity protection, and freewheeling applications.
Operates at a maximum continuous forward current of 2 A. Features a peak reverse repetitive voltage of 60 V for robust performance. Utilizes Trench MEGA Schottky technology for low forward voltage and leakage current. Designed with a 3-pin configuration and single diode setup.
Surface mount CFP15B package enables compact integration onto PCBs. Maximum forward voltage is 620 mV, ensuring efficient rectification. Lowest peak reverse current at 1.2 μA minimizes energy losses. Automotive grade with AEC-Q101 approval for reliability in demanding environments.
This product's packaging allows efficient insertion into machinery, maximizing production efficiency for industrial uses. Its operating temperature ranges from -55°C to 175°C, supporting stability in harsh environments. The rectifier achieves high surge capability, handling up to 60A non-repetitive forward surge current.
Common applications include power management in industrial, laboratory, automotive, and commercial electronic systems. Its reliability and efficiency make it suitable for designers demanding robust rectifiers for modern PCBs.
Explore more Schottky barrier rectifiers and related discrete semiconductors in the Schottky Diodes & Rectifiers category from Nexperia at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this rectifier is 2 A.
It has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop is 620 mV.
The lowest peak reverse current is 1.2 μA, which minimizes energy losses.
The operating temperature range is from -55°C to 175°C.
It is designed in a surface mount CFP15B package.
It can handle a peak non-repetitive forward surge current of up to 60 A.
Yes, it is automotive grade with AEC-Q101 approval, ensuring reliability in demanding environments.
This rectifier has a pin count of 3.
It utilizes Trench MEGA Schottky technology for efficient performance.
Common applications include power management in industrial, laboratory, automotive, and commercial electronic systems.
The peak reverse recovery time is 12 ns.
