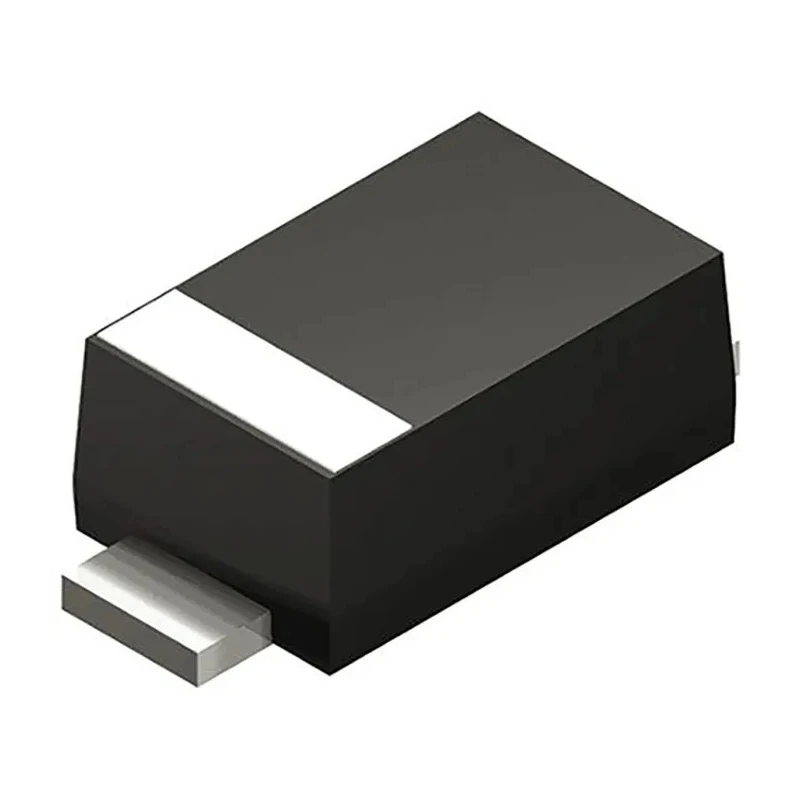

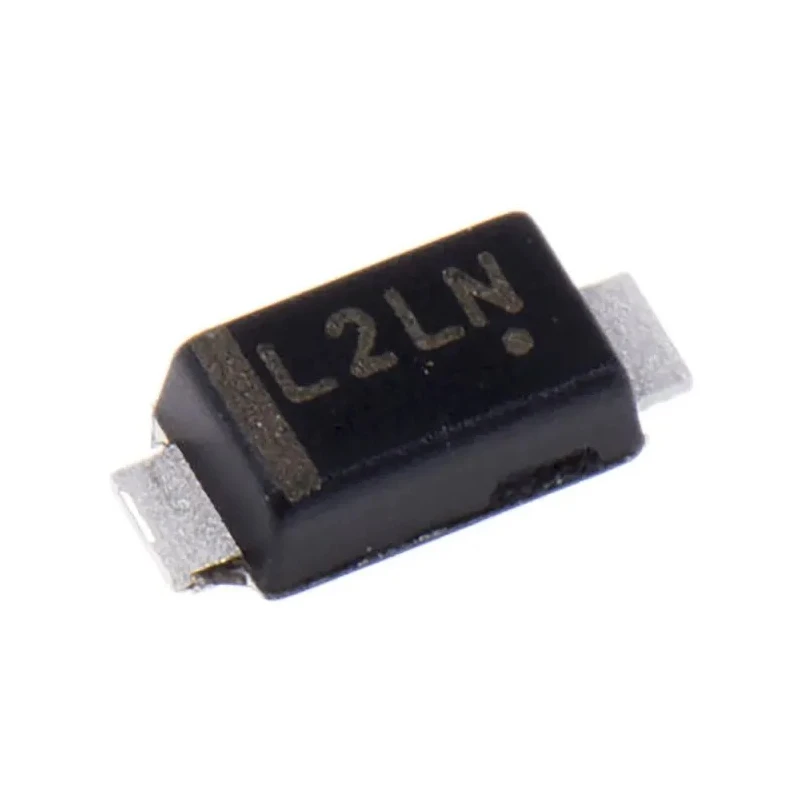

ROHM 30V 2A Schottky Barrier Diode, Single, SOD-123 Package RB060MM-30TR
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.6mm |
| Model | RB060MM-30TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 55A |
| Maximum Forward Voltage Vf | 490mV |
| Peak Reverse Recovery Time trr | 9.8ns |
Key Features
- 30V maximum reverse voltage ensures suitability for low-voltage rectification applications.
- 2A continuous forward current allows reliable operation in demanding circuits.
- SOD-123 compact package supports high-density PCB layouts.
- Schottky construction offers low forward voltage and fast switching characteristics.
- Single diode configuration with 2 pins for streamlined integration.
- Surface mount design simplifies automated assembly and production efficiency.
- Peak surge current up to 55A supports brief overload conditions.
- Operating temperature range from -55°C to 150°C for industrial reliability.
Product Description
ROHM RB060MM-30TR is a high-performance Schottky Barrier Diode featuring a 30V peak reverse voltage and 2A continuous forward current, offered in a compact SOD-123 package that enables efficient surface mount applications. Designed for use in power management, rectification, and switching circuits, this single-diode device delivers reliable performance in demanding environments.
With its single configuration and 2-pin design, the RB060MM-30TR is optimized for streamlined integration into printed circuit boards, supporting automated assembly processes. Its low forward voltage (490mV max) and fast reverse recovery time (9.8ns) make it ideal for high-frequency operations where minimal losses and rapid switching are critical.
The diode supports a peak non-repetitive forward surge current of 55A, handling brief overloads safely. Its operating temperature range spans -55°C to +150°C, making it suitable for applications in industrial, automotive (non-automotive standard version), and commercial electronics.
30V maximum reverse voltage for low-voltage rectification. 2A maximum continuous forward current sustains demanding loads. Compact SOD-123 surface-mount package saves board space and supports efficient PCB layouts. Schottky construction ensures low forward voltage (490mV) and fast switching (9.8ns recovery).
Single diode configuration (2 pins) for simple circuit design. Peak surge capability (55A) enables handling of transient overloads. Wide operating temperature range (-55°C to +150°C) increases reliability. RoHS compliant for environmentally responsible electronics manufacturing.
Ideal for power conversion, protection, and switching in industrial and commercial applications. Country of origin: Japan, ensuring quality and global compliance standards.
This diode is deployed in industrial automation, power supply units, motor drives, and other electronic assemblies requiring high-efficiency rectification and reliable switching. ROHM's advanced semiconductor technology guarantees long-lasting performance and easy integration into modern electronic systems.
Browse more Schottky Diodes & Rectifiers from ROHM or in the Electronics & Electricals category on EnvMart for industrial and commercial solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage of the ROHM RB060MM-30TR is 30V, making it suitable for low-voltage rectification applications.
This diode has a continuous forward current rating of 2A, allowing reliable operation in demanding circuits.
The RB060MM-30TR is packaged in a SOD-123 type with dimensions of 2.6mm in length, 1.6mm in width, and 0.8mm in height.
It can handle a peak non-repetitive forward surge current of up to 55A, which supports brief overload conditions.
The operating temperature range for the RB060MM-30TR spans from -55°C to +150°C, ensuring reliability in various environments.
The maximum forward voltage drop for this model is 490mV, which contributes to its low-loss characteristics.
The reverse recovery time is 9.8ns, making it suitable for high-frequency operations where rapid switching is essential.
The RB060MM-30TR features a single diode configuration with 2 pins, facilitating streamlined integration into circuits.
Yes, this diode is RoHS compliant, which ensures it meets environmental standards for electronics manufacturing.
It is suitable for applications in power management, rectification, and switching circuits, particularly in industrial and commercial electronics.
This diode is manufactured in Japan, ensuring adherence to quality and global compliance standards.
The peak reverse current for the RB060MM-30TR is specified at 50μA, which is important for understanding its performance under reverse bias conditions.
