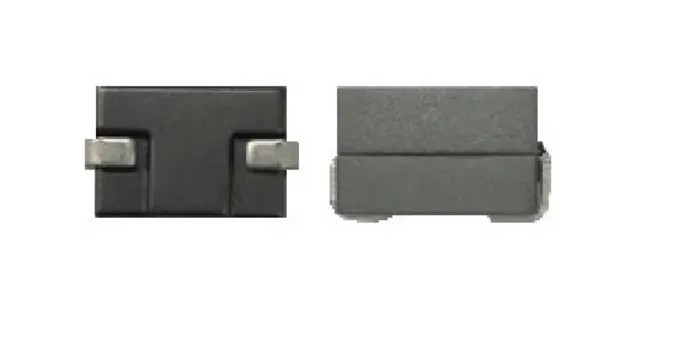

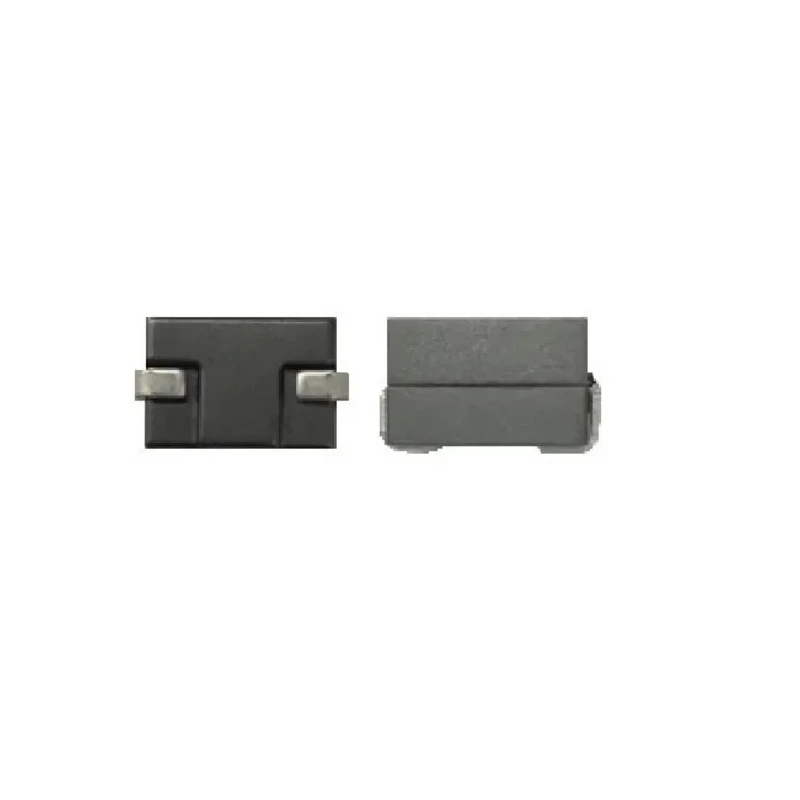

Abracon SMT Shielded Power Inductor 220 nH, 50A, Molded Manganese Zinc Ferrite Core AMSLA-1280-R22K-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 8mm |
| Length | 10.2mm |
| Model | AMSLA-1280-R22K-T |
| Depth | 1.3mm |
| Packaging | Tape & Reel |
| Series | AMSLA-1280 |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Power Molded Inductor |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 220nH |
| Standards/Approvals | ISO9001-2015, RoHS/RoHS II |
| Package/Case | SMT |
| Maximum DC Current | 50A |
| Maximum DC Resistance | 310μΩ |
| Inductance Tolerance | ±10% |
| Inductor Construction | Molded SMD |
Key Features
- Features a molded SMD construction for robust durability.
- Provides 220 nH inductance with ±10% tolerance and a 50A maximum DC current capacity.
- Shielded design minimizes electromagnetic interference during operation.
- Operates reliably in temperatures from -40°C to 125°C.
- Manganese zinc ferrite core ensures high efficiency for power and industrial uses.
- Package accommodates tape & reel for streamlined assembly processes.
- Certified ISO9001-2015 and RoHS/RoHS II compliant for quality assurance.
Product Description
Abracon AMSLA-1280-R22K-T is a surface-mount shielded power inductor, engineered for demanding high-power applications in industrial, robotics, and power systems. The inductor offers a 220 nH inductance rating, ±10% tolerance, and has a maximum DC current handling capacity of 50A. Its manganese zinc ferrite core provides soft saturation characteristics and ensures high efficiency during power conversion in electronic circuits.
This inductor features a robust molded SMD construction that offers improved mechanical strength and durability. The shielded design helps to suppress electromagnetic interference, supporting cleaner signal integrity even in dense electronic assemblies. The tape & reel packaging is ideal for automated pick-and-place manufacturing environments.
With operational temperature range from -40°C to 125°C and maximum DC resistance of 310μΩ, the AMSLA-1280-R22K-T is suited for environments requiring stability across variable temperatures. Application areas include solar inverters, power conversion modules, industrial controllers, and robotics systems.
Molded SMD construction ensures robust mechanical performance under stress. Shielded for minimized EMI and enhanced circuit reliability. 220nH inductance and 50A current capacity support high-power designs. Compatible with frequencies between 100 kHz and 2 MHz for versatile electronic design use.
Certified to ISO9001:2015 and RoHS II standards, offering compliance and peace of mind. Dimensions: Length 10.2mm, Height 8mm, Depth 1.3mm; core material: manganese zinc ferrite. Packaged for tape and reel, simplifying assembly and logistics.
Typical industrial applications include power electronics, solar inverters, robotics, and noise-sensitive control systems. Its molded, shielded design prioritizes reliability, making it suitable for critical embedded PCB requirements.
Browse more Abracon inductors and SMD passive components on EnvMart for industrial, laboratory, and electronics use cases.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 220 nH with a tolerance of ±10%.
The maximum DC current capacity of this inductor is 50A.
It operates reliably within a temperature range of -40°C to 125°C.
This inductor uses a manganese zinc ferrite core, which provides high efficiency for power applications.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
The dimensions of this model are 10.2mm in length, 8mm in height, and 1.3mm in depth.
The maximum DC resistance is 310μΩ.
It is certified to ISO9001-2015 and is RoHS/RoHS II compliant.
It features a molded SMD construction, which enhances its mechanical strength and durability.
Typical applications include solar inverters, power conversion modules, industrial controllers, and robotics systems.
It is compatible with frequencies ranging from 100 kHz to 2 MHz.
This model belongs to the AMSLA-1280 series of high power molded inductors.
