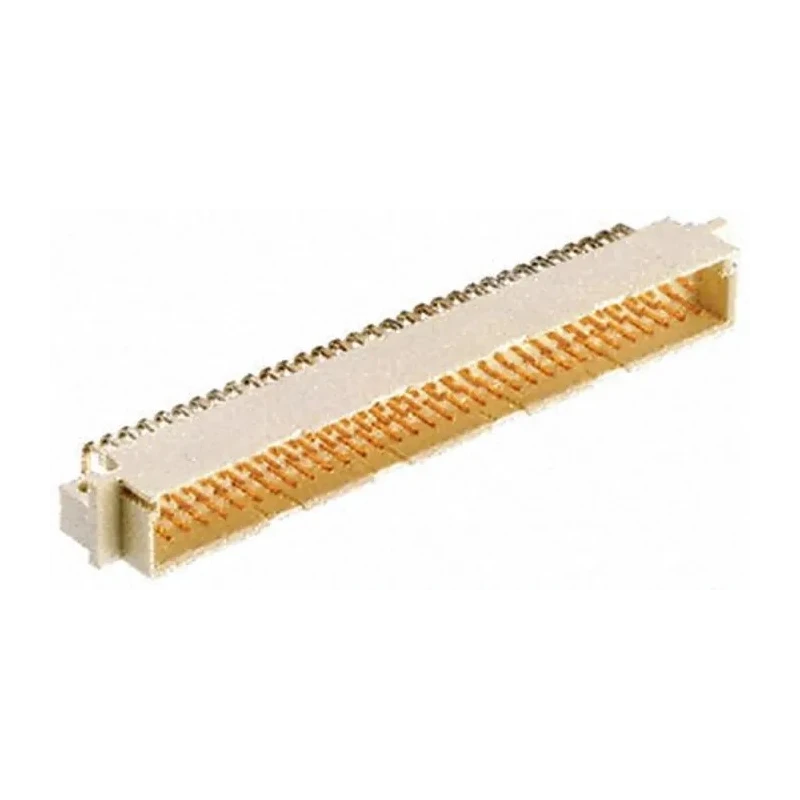

HARTING TE Connectivity Eurocard 48 Way 5.08 mm Pitch DIN 41612 Connector 3 Row Male Through Hole Solder 2-164045-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 5.5A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | F |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Row Loading | Z, D, B |
Key Features
- The connector features a solder termination type with through hole mount for secure PCB assembly.
- Gold over nickel contact plating ensures excellent conductivity and corrosion resistance.
- Constructed with brass contacts and polyethylene terephthalate housings for durability.
- Operates reliably within a wide temperature range from -55°C to 125°C.
- Meets DIN 41612 and IEC 60603-2 standards for compatibility and performance.
- Includes polarization features to prevent mis-mating and maintain system integrity.
- Suitable for use in industrial control systems, telecommunications, backplane assemblies, and modular rack systems.
- Designed with a 3-row male contact configuration, row loading Z, D, and B, enhancing versatility.
Product Description
HARTING 2-164045-1 Eurocard 48 Way DIN 41612 Connector is a precision-engineered electronic component designed to meet rigorous industry standards. Featuring a 5.08 mm pitch and three rows of male contacts, this connector offers reliable signal transmission in demanding industrial and telecommunications environments.
Its solder termination type combined with through hole mounting provides secure, long-lasting PCB attachment. The connector's contacts are made from high-quality brass with gold-over-nickel plating, providing excellent conductivity and corrosion resistance to ensure longevity and performance integrity.
The polyethylene terephthalate housing features flame retardant properties and integrated polarization mechanisms preventing incorrect mating. This design supports compatibility with common bus systems including STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
Operating effectively between -55°C and 125°C, this connector suits applications in harsh and variable environments such as industrial control DCS systems, data centres, storage solutions, servers, telecommunication equipment, backplane, motherboard assemblies, switching systems, and modular rack systems.
The connector complies with DIN 41612 and IEC 60603-2 standards delivering high signal integrity and robust electrical performance. Its two-piece design ensures durability and easy assembly while maintaining reliable electrical connections.
Available in multiple contact loading configurations including Z, D, and B rows to suit complex circuit needs. Flame retardant housing and selective contact loading enhance safety and functionality in specialized industrial applications.
Polarizing features prevent mis-mating, thereby improving system reliability and reducing maintenance. Gold plating over nickel contacts improve long-term signal quality and reduce oxidation risks. Designed for demanding industrial and commercial electronic applications requiring high performance and compliance with international standards.
HARTING DIN 41612 Eurocard Connectors offer an essential solution in electronic connectivity for industrial automation, telecommunications, and data processing sectors. Explore a wide range of DIN 41612 Connectors for applications needing precision, durability, and compliance with global standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 3-row male contact configuration with row loading options of Z, D, and B.
It operates effectively between -55°C and 125°C, making it suitable for harsh environments.
This connector utilizes a solder termination type, allowing for secure PCB attachment.
The contact pitch for this connector is 5.08 mm.
It features brass contacts with gold over nickel plating and a housing made of polyethylene terephthalate.
The maximum current rating is 5.5A.
It meets DIN 41612 and IEC 60603-2 standards for compatibility and performance.
This connector is suitable for use in industrial control systems, telecommunications, backplane assemblies, and modular rack systems.
Yes, it includes polarization features designed to prevent mis-mating and maintain system integrity.
The connector is manufactured in India.
The housing is made from flame-retardant polyethylene terephthalate.
This connector is designed with a right angle orientation.
