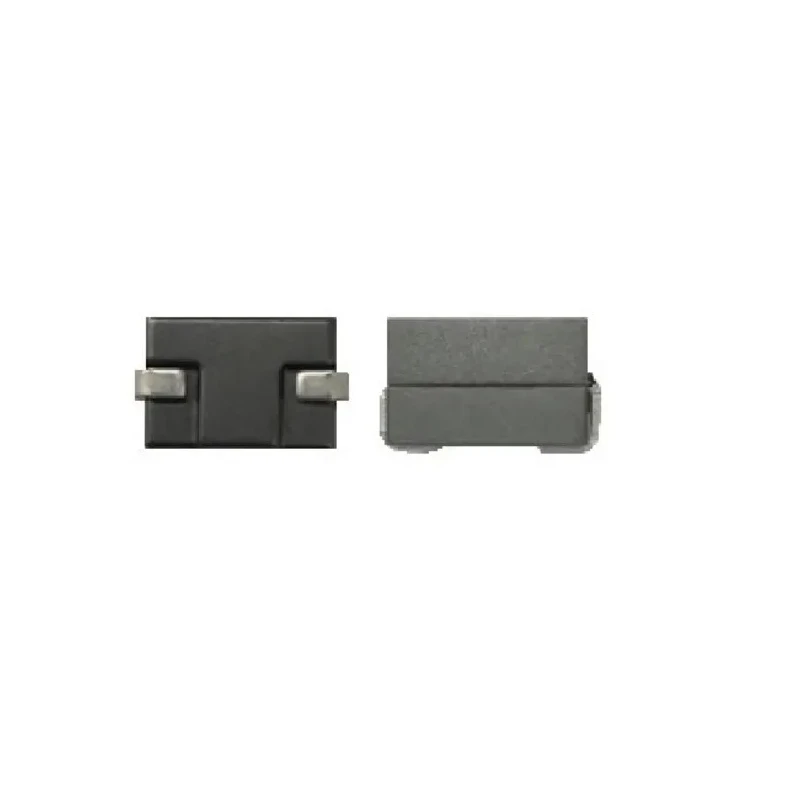

Abracon AMSLA-1070-150NM-T SMT Shielded Power Inductor, Manganese Zinc Ferrite Core, 150 nH, Molded SMD ±20 %, 70A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 7mm |
| Length | 10.2mm |
| Model | AMSLA-1070-150NM-T |
| Depth | 1.3mm |
| Packaging | Tape & Reel |
| Series | AMSLA-1070 |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Power Molded Inductor |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 150nH |
| Standards/Approvals | RoHS, RoHS II, ISO9001-2015 |
| Package/Case | SMT |
| Maximum DC Current | 70A |
| Maximum DC Resistance | 410μΩ |
| Inductance Tolerance | ±20 % |
| Inductor Construction | Molded SMD |
Key Features
- This molded SMD power inductor delivers an inductance of 150 nH.
- Rated for up to 70A maximum DC current for high power electronic designs.
- Features shielded construction with a manganese zinc ferrite core for enhanced efficiency.
- ±20% inductance tolerance ensures consistency across production batches.
- Low maximum DC resistance of 410μΩ maximizes performance.
- Operates from - 40°C to 125°C for industrial environments.
- Molded SMT package allows for robust surface mounting in automated processes.
- Tape and reel packaging facilitates high volume manufacturing.
Product Description
Abracon AMSLA-1070-150NM-T is a surface mount shielded power inductor designed for high power density electronic applications. It utilizes a manganese zinc ferrite core and is fully molded in an SMD form factor, making it ideal for automated assembly lines and demanding environments.
The device offers an inductance of 150 nH with a tolerance of ±20%, enabling precise current handling and energy storage capabilities in power circuits. With a maximum DC current rating of 70A and a low DC resistance of just 410μΩ, it supports high efficiency and minimal power loss for industrial, robotics, or solar inverter applications.
This inductor features shielded construction, ensuring reduced electromagnetic interference and consistent performance. The product is housed in a robust SMT package measuring 10.2 mm in length, 7 mm in height, and 1.3 mm in depth, providing a compact footprint suited for dense PCB layouts.
Operating temperature range extends from - 40°C to 125°C, allowing integration into harsh industrial environments. Tape & reel packaging supports efficient, automated installation for manufacturing scale-up. RoHS and RoHS II compliance, along with ISO9001-2015 approval, ensures suitability for global industrial applications.
This shielded, high current inductor is used across industrial electronics, power and energy systems, robotics, and solar inverter designs where reliability and performance are essential.
Find more Abracon Surface Mount Inductors and related passive components in the Electronics & Electricals catalog. Discover top brands in industrial and automotive electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 150 nH with a tolerance of ±20%.
The AMSLA-1070-150NM-T is rated for a maximum DC current of 70A.
It measures 10.2 mm in length, 7 mm in height, and 1.3 mm in depth.
The maximum operating temperature for this model is 125°C.
It utilizes a manganese zinc ferrite core for enhanced efficiency.
This inductor is packaged in tape and reel format, facilitating high volume manufacturing.
The minimum operating temperature is -40°C, making it suitable for harsh environments.
The maximum DC resistance is 410μΩ, which helps maximize performance.
It is compliant with RoHS, RoHS II, and ISO9001-2015 standards.
This model features molded SMD construction, which is ideal for automated assembly.
It is suitable for use in industrial electronics, power and energy systems, robotics, and solar inverter designs.
The shielded construction reduces electromagnetic interference, ensuring consistent performance.
