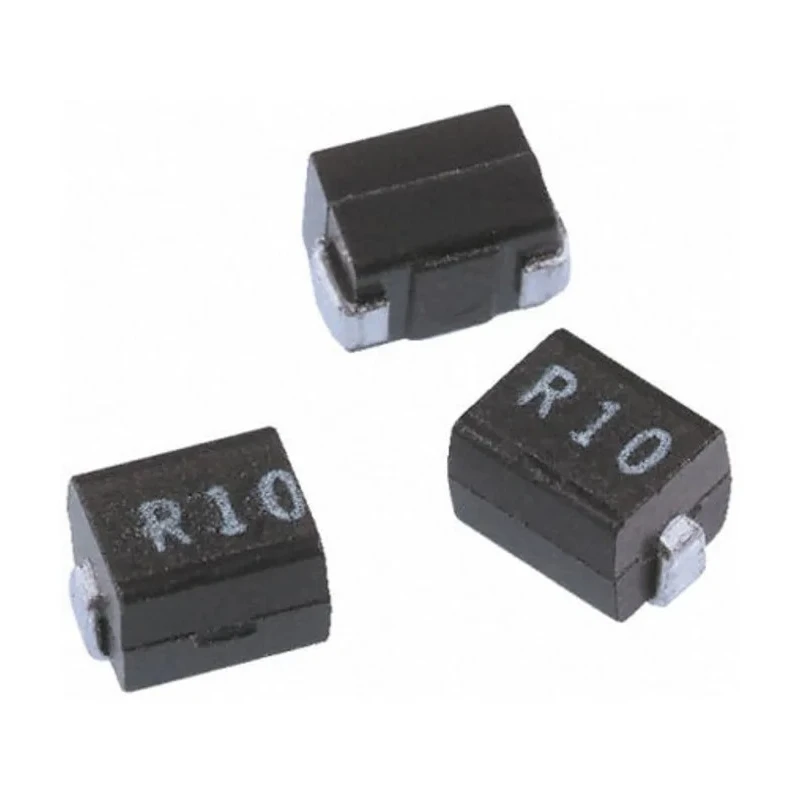

Wurth Elektronik WE-GF 1812 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 10 μH ±10 %, 250 mA, Q:50, 74476610
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 4.2mm |
| Model | 74476610 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-GF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 1812 |
| Maximum DC Current | 250mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.6Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 28MHz |
| Minimum Quality Factor | 50 |
| Inductor Construction | Wirewound |
Key Features
- Designed with a ferrite core for improved electromagnetic shielding.
- Features a 10 μH inductance rating with ±10% tolerance.
- Supports a maximum DC current of 250 mA for efficient power management.
- Surface mount termination enables automated PCB assembly.
- Compact 1812 package, measuring 4.2 mm in length and 3.2 mm in height and depth.
- Maximum DC resistance of 1.6 Ω ensures low power loss.
- Operates reliably across temperature range from -40°C to +105°C.
- Minimum quality factor of 50 and maximum self-resonant frequency of 28 MHz.
Product Description
Wurth Elektronik presents the WE-GF 1812 shielded wirewound surface mount inductor, model 74476610, engineered for robust performance in high-frequency circuits, LC filter networks, amplifiers, oscillators, tuners, and transponders. This inductor is constructed using a ferrite core and wirewound configuration, providing effective magnetic shielding and minimizing electromagnetic interference.
Inductance: 10 μH with ±10% tolerance, ideal for precision applications. Maximum DC current capability: 250 mA, supporting stable circuit operation. Compact dimensions: 4.2 mm (length) x 3.2 mm (height) x 3.2 mm (depth) for efficient board placement.
DC resistance limited to 1.6 Ω for minimized energy losses. Surface mount termination style enables easy integration with automated assembly lines. Shielded design helps reduce crosstalk and EMI, improving system reliability.
Stable operation from -40°C up to 105°C, suitable for industrial, automotive, and commercial environments. Quality factor of at least 50 and self-resonant frequency up to 28 MHz for enhanced performance in RF circuits.
The WE-GF 1812 is packaged in tape & reel format for streamlined handling and installation. Its moulded construction and ferrite core ensure consistent inductive properties, while the 2-pin surface mount design fits modern PCB layouts.
This SMD inductor serves applications in power filtering, oscillation circuits, frequency adaptation, and high-frequency amplification, making it a dependable choice for industrial and laboratory electronics projects.
Browse more Wurth Elektronik components and Surface Mount Inductors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance rating of this model is 10 μH with a tolerance of ±10%.
It supports a maximum DC current of 250 mA, allowing for efficient power management in circuits.
This unit measures 4.2 mm in length, 3.2 mm in height, and 3.2 mm in depth.
The maximum operating temperature is 105°C, making it suitable for various environments.
It is constructed with a ferrite core, which enhances electromagnetic shielding.
The minimum quality factor is 50, which is beneficial for performance in RF circuits.
The maximum self-resonant frequency is 28 MHz, suitable for high-frequency applications.
It is packaged in tape & reel format, facilitating streamlined handling and installation.
The maximum DC resistance is 1.6 Ω, which helps minimize energy losses in circuits.
This model features a surface mount termination style, enabling automated PCB assembly.
It is suitable for applications such as power filtering, oscillation circuits, and high-frequency amplification.
This inductor has a pin count of 2, fitting modern PCB layouts.
