Broyce Control LMMT Series DIN Rail Timer Relay, 2-Contact, DPDT, Multifunction, 230V DC/230V AC/24V AC, 0.1 s to 102-6123

The RS PRO 102-6123 LMMT Series DIN Rail Timer Relay is an advanced multifunctional timing controller designed for industrial and automation control systems. With its DPDT 2-contact configuration and adjustable timing capabilities, this relay allows precise and flexible control over various timing functions in electrical panels and equipment.

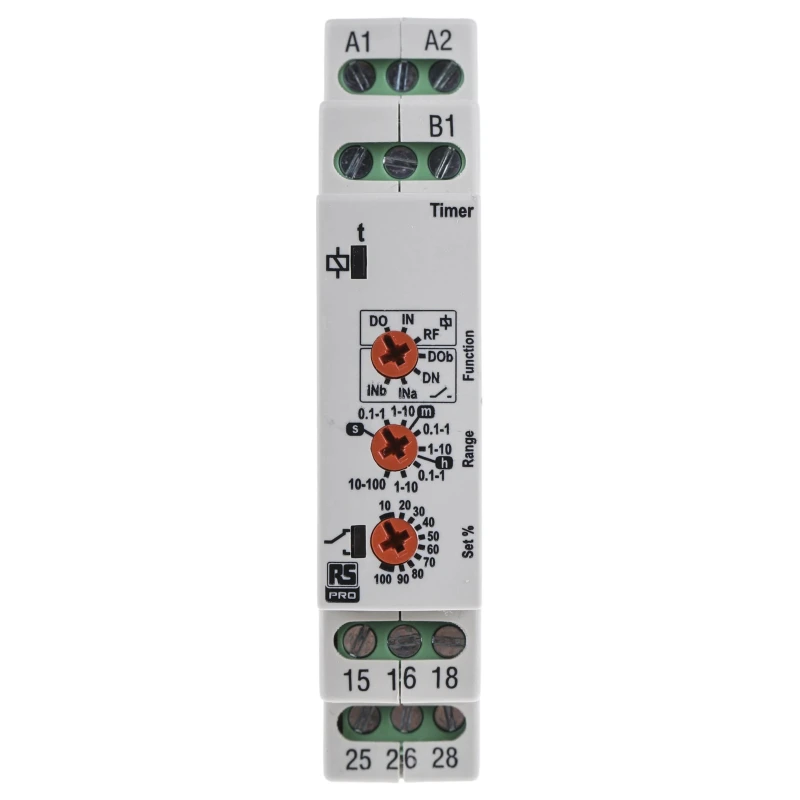

This timer relay supports supply voltages of 230V DC, 230V AC, and 24V AC, enabling seamless integration into multiple operating environments. Its wide selectable timing range - from 0.1 seconds up to 100 hours - provides versatility for applications that demand short or extended timing intervals. A screwdriver slot enables fine adjustment of timing, while easy-to-use rotary switches on the front panel allow quick setting of both timing function and time range.

The device's DPDT contact configuration ensures robust switching for currents up to 8A, making it ideal for controlling both small and medium power loads. LED indicators on the relay clearly show the status of supply, timing, and relay operation, helping installers and operators to monitor the relay at a glance.

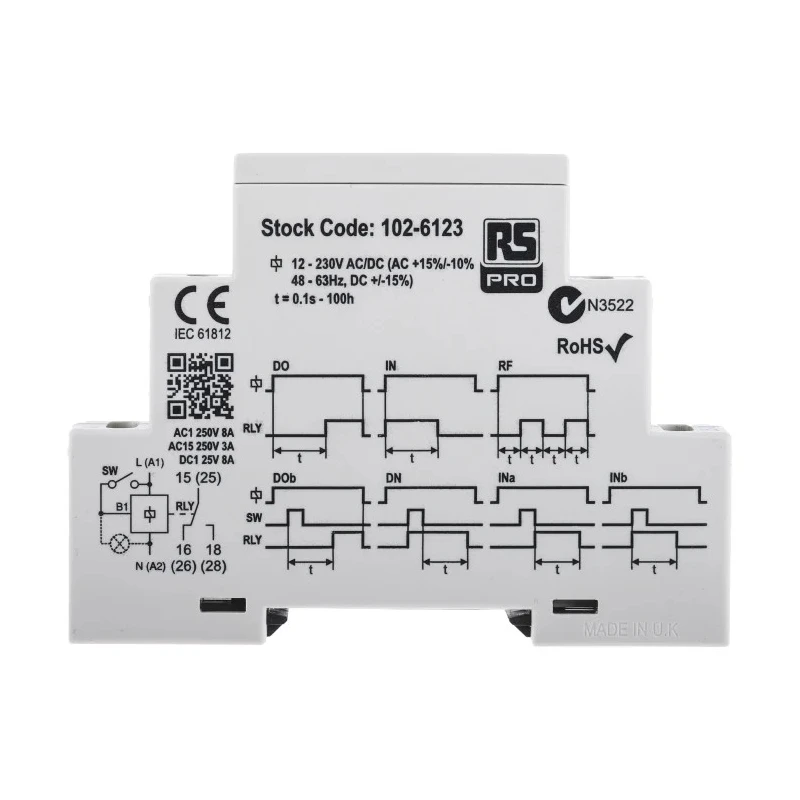

Multifunction timing relay supporting interval, on-delay, off-delay, symmetrical flasher, and watchdog functions. Wide supply voltage compatibility: 230V DC, 230V AC, and 24V AC. Seamless adjustment between 0.1 seconds and 100 hours for maximum flexibility.

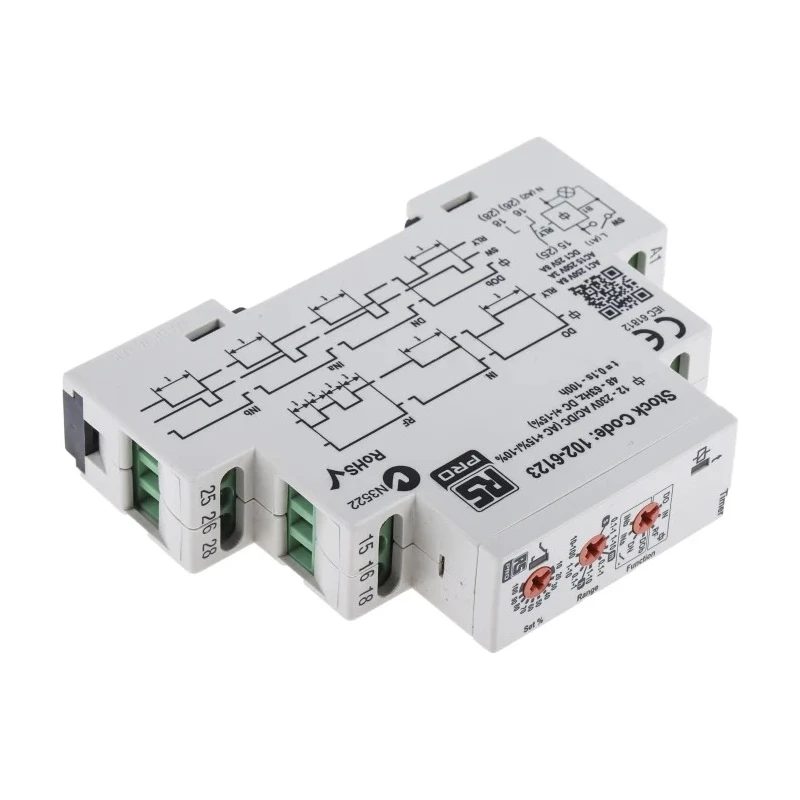

DPDT contact output with an 8A rating per contact for dependable switching. Easy mounting with DIN rail compatibility and secure screw terminals. Clear LED status indicators for power, timing, and relay conditions. Operates from -20°C to 60°C for use in demanding environments.

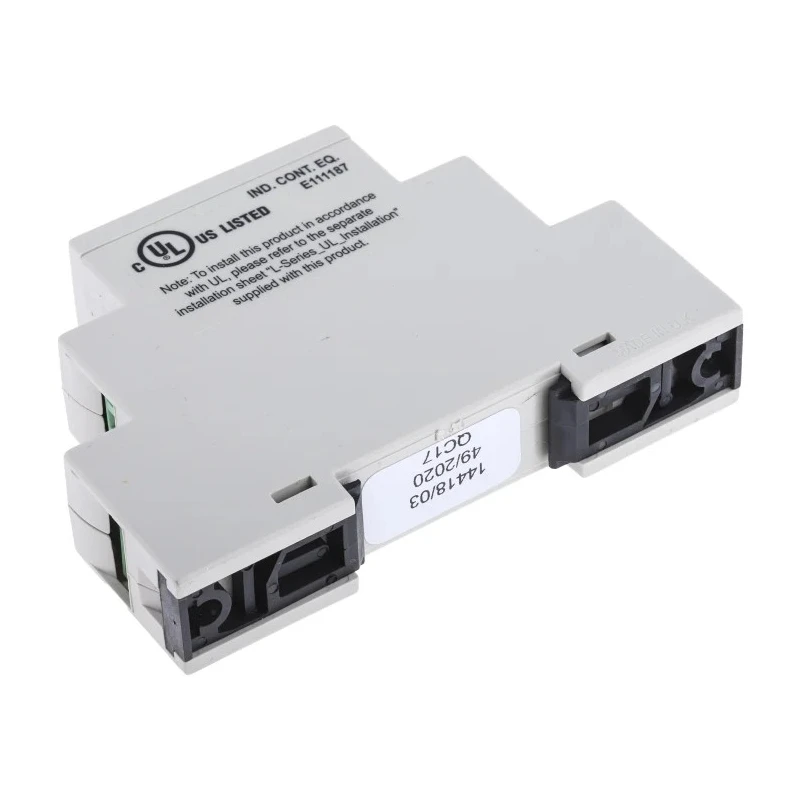

Compact design: 89mm (L) x 17.5mm (W) x 66.5mm (H). Meets CE, IEC, and UL certification standards for reliability and safety.

Typical use cases include industrial automation panels, process control, manufacturing, raw material handling, mining, food and beverage production, textiles, and chemical industry setups requiring reliable and adjustable timing control. The relay is suited for new and retrofit installations where reliability and versatility are key.
