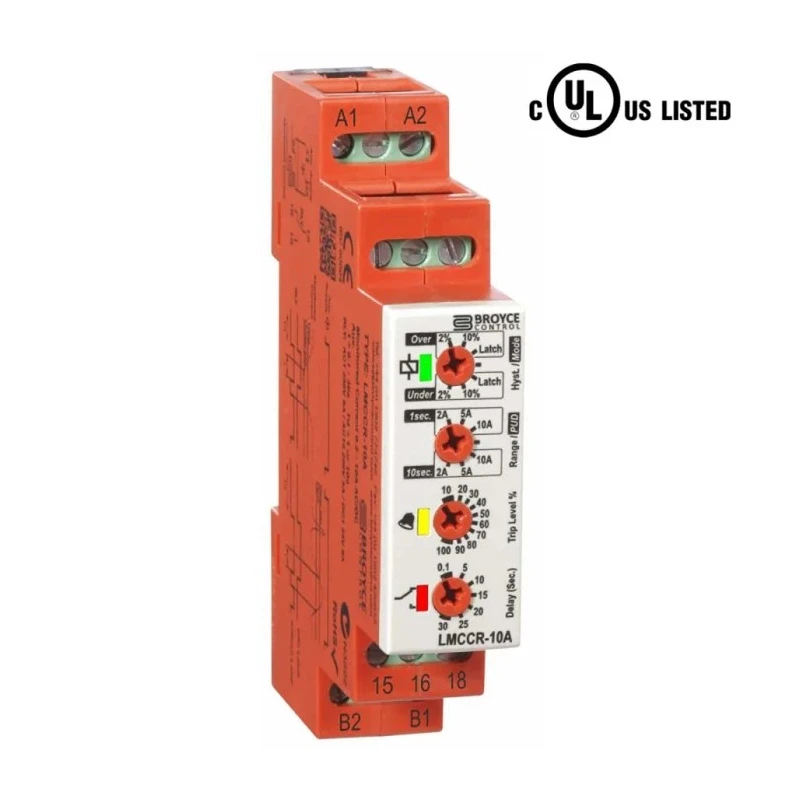

Broyce Control 3 Phase Monitoring Relay SPDT DIN Rail Mount LMCCR-10A 24-230VAC/DC

Broyce Control LMCCR-10A 24-230VAC/DC is a 3 Phase Monitoring Relay designed for precise and reliable current detection in industrial, automation, and electrical control systems. This relay supports SPDT contact configuration and is housed in a compact DIN Rail mount enclosure measuring 66.5mm in length, 17.5mm in width, and 89mm in height.

The device senses current ranging from 0.2A to 10A and supports sensitivity settings for both undercurrent and overcurrent conditions, controlled via a microprocessor-based system with true R.M.S. monitoring accuracy. It accommodates a switching voltage up to 250 V AC and operates with an auxiliary supply voltage range of 24 V AC to 230 V AC ensuring flexible integration into various control panels and electrical environments.

Its robust construction features IP20 rating offering basic protection against solid objects and finger contact. The relay’s screw terminal connections facilitate secure wiring, while a green LED indicator provides a clear visual status for supply presence.

Operating temperature ranges with a minimum of +60°C and maximum of 60°C, making it suitable for most industrial indoor environments. Its compliance with international standards including EN 61000-6-4, UL EN 61000-6-2, IEC, CE, and RoHS attest to its quality and reliability in harsh electrical environments.

Typical applications include industrial automation, electrical equipment monitoring, control systems requiring current monitoring, and safety interlock circuits where overload and undercurrent detection are essential.

Supports electrical phases with 3 phase input for comprehensive monitoring. Equipped with SPDT contact configuration suitable for versatile control applications. Mountable on standard DIN Rail for easy installation and space efficiency.

Handles current sensing from 0.2A minimum up to 10A maximum with high sensitivity. Operates at supply voltages of 24 V AC and 230 V AC with auxiliary supply isolation. Provides a switching voltage capacity of 250 V AC supporting various load requirements.

Features microprocessor-based design with true R.M.S. current monitoring capability. Green LED indication shows supply status for easy diagnostics. Constructed to IP20 ingress protection rating for basic dust and contact protection.

Complies with EN 61000-6-4, UL EN 61000-6-2, IEC, CE, and RoHS standards ensuring quality and safety.

The compact design allows installation in diverse industrial and electrical panels for efficient monitoring and protective relay functionality. Suitable for applications in manufacturing, industrial electrical control, automation systems, and energy management.
