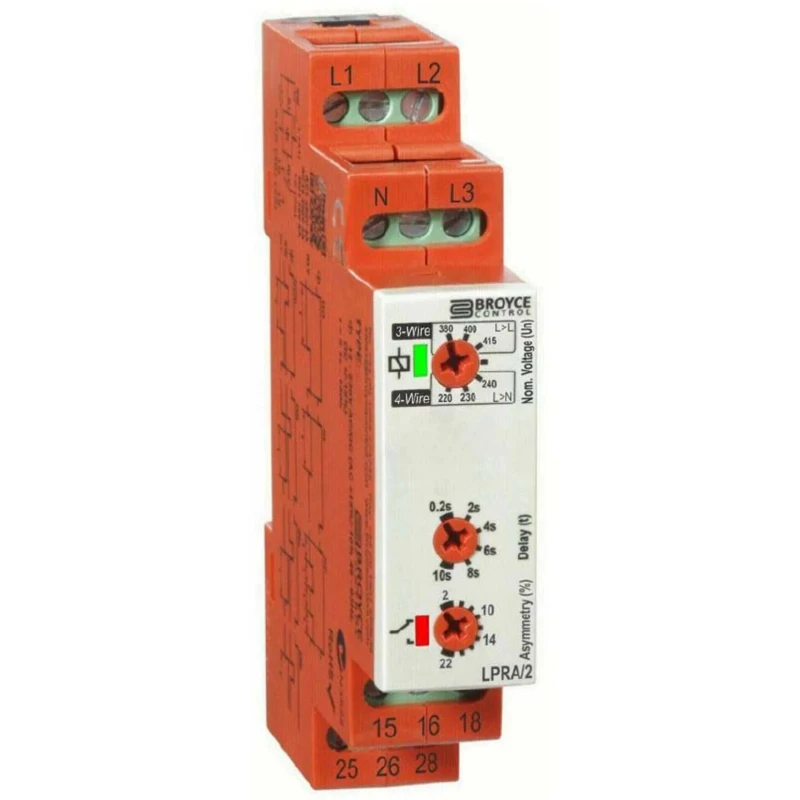

Broyce Control 3 Phase Monitoring Relay DPDT DIN Rail Mount 243-540 V AC LPRA/2 400V
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 89mm |
| Length | 66.5mm |
| Model | LPRA/2 400V |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| RS Stock No. | 135-6186Brand: Broyce ControlManufacturers Part No.: LPRA/2 400V |
| Contact Current | 5A |
| Supply AC Voltage | 243, 540V ac |
| Electrical Life | ≥150 000 operations |
Key Features
- Microprocessor based design ensures reliable phase monitoring.
- True RMS voltage measurement for phase-to-phase or phase-to-neutral configurations.
- Selectable nominal voltages to support common three-wire or four-wire supply systems.
- Monitors and detects phase asymmetry, phase sequence errors, phase loss, and neutral loss.
- Adjustable asymmetry trip level and time delay for precise control.
- DPDT relay output rated at 5A for switching applications.
- Green LED indicates supply status; red LED shows relay activation.
- Compact 17.5 mm DIN Rail housing with screw terminal connections.
Product Description
Broyce Control LPRA/2 400V Monitoring Relay is a microprocessor-based device designed for precise monitoring of three-phase electrical systems. It supports DPDT contact configuration and mounting on a DIN Rail, suitable for industrial control panels.
The relay performs true RMS measurement of voltages either phase-to-phase or phase-to-neutral, with selectable nominal voltages for 243 V and 540 V AC applications. This ensures accurate monitoring across common three-wire and four-wire supply systems.
This unit continuously monitors its own supply and detects phase asymmetry, phase sequence errors, phase loss, and neutral loss to prevent electrical faults. Adjustable asymmetry trip levels and time delay provide customizable protections tailored to specific industrial equipment requirements.
Designed with a compact 17.5 mm DIN Rail housing and utilizing screw terminal connections, the relay is easy to install and maintain. Visual indication with green and red LEDs communicates supply and relay status clearly to operators.
The relay is rated for 5A contact switching current with DPDT output contacts and is built with flame retardant materials compliant to UL94 VO standards. It operates reliably in ambient temperatures from -20°C to +60°C, making it suitable for a wide range of industrial, electrical, and automation applications.
Microprocessor based relay providing comprehensive phase monitoring. Wide voltage compatibility with selectable nominal voltages for flexibility. Detection of phase sequence, loss, and asymmetry conditions ensures equipment safety.
Compact and robust design optimizes panel space and installation convenience. Comprehensive IEC, EN, UL, and RoHS compliance ensures international standards conformance.
This monitoring relay is ideal for industrial, automation, electrical control, and process control applications demanding precise phase monitoring and fault detection. Its DIN Rail mount and microprocessor control make it a versatile solution for modern electrical panels.
Explore more Monitoring Relays and control devices at EnvMart for your automation and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports selectable nominal voltages of 243 V and 540 V AC, making it suitable for common three-wire and four-wire supply systems.
It is designed for DIN Rail mounting, which facilitates easy installation in industrial control panels.
The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this monitoring relay is 60°C, allowing it to function effectively in various industrial environments.
The relay is rated for a contact current of 5A, suitable for various switching applications.
It features green and red LEDs; the green LED indicates supply status while the red LED shows relay activation.
The unit has an IP20 rating, indicating protection against solid objects greater than 12.5 mm, suitable for indoor use.
The dimensions are 89 mm in height, 66.5 mm in length, and 17.5 mm in width, making it compact for DIN Rail installation.
It monitors phase asymmetry, phase sequence errors, phase loss, and neutral loss to prevent electrical faults.
The minimum operating temperature for this model is -20°C, allowing for operation in colder environments.
The electrical life of the relay is rated for at least 150,000 operations, ensuring a long service life under normal conditions.
It utilizes screw terminal connections, which provide secure and reliable wiring for installation.
