ams OSRAM White LED, SMT Surface, 5.52V, OSCONIQ S 5050 GW Q9LR32.HW-AEAF-M1-1

Free Delivery in India | Lowest Global Shipping Charges

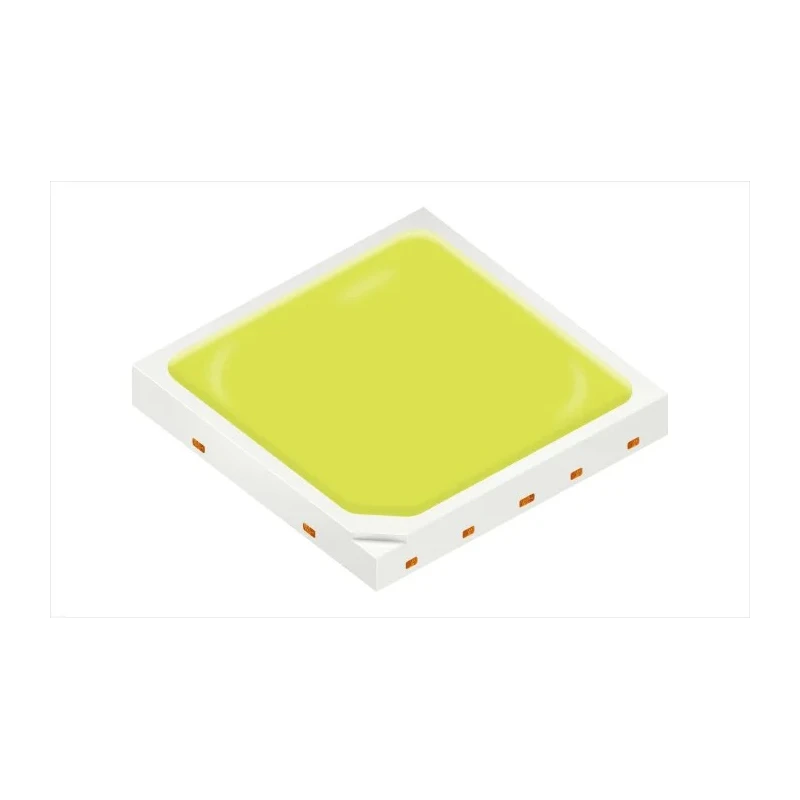

ams OSRAM White LED, SMT Surface, 5.52V, OSCONIQ S 5050 GW Q9LR32.HW-AEAF-M1-1

Name: ams OSRAM White LED, SMT Surface, 5.52V, OSCONIQ S 5050 GW Q9LR32.HW-AEAF-M1-1
Brand: ams OSRAM
SKU: 89988



Category LEDs - Light Emitting Diodes Brand ams OSRAM Condition New

Specifications

Country of Origin	China
Brand	ams OSRAM
Package	white SMT package, coloured diffused silicone resin
Model	GW Q9LR32.HW-AEAF-M1-1
Packaging	Tape & Reel
Mount Type	Surface
Series	OSCONIQ S 5050
Number Of Leds	1
Maximum forward current	1050mA
Viewing angle	120 °
Package Type	SMT
Standards/Approvals	IEC 62471:2006
LED Colour	White
Forward Voltage	5.52V
Lens Shape	Square
Radiant Flux	typ. 630 mW @ M2 bin
LED Luminous Flux	229 to 253 lm
Typ. Radiation	120° (Lambertian emitter)
ESD	8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Standards/ApprovalsIEC 62471	2006
IEC 62471	2006
Photon flux efficacy	typ. 2.86 μmol/J @ M2 bin

Key Features

High forward voltage of 5.52 V ensures optimal brightness performance.
Maximum forward current of 1050 mA allows robust operation in demanding conditions.
Surface mount package enhances assembly efficiency for LED lighting modules.
Delivers a luminous flux between 229 to 253 lm for reliable horticulture or industrial applications.
Wide 120° viewing angle ensures uniform light distribution.
Square lens shape focused for exceptional beam quality.
ESD rating of 8 kV per ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) for superior device protection.
Photon flux efficacy of 2.86 μmol/J, maximizing horticultural system efficacy.

Product Description

ams OSRAM GW Q9LR32.HW-AEAF-M1-1 is a high-performance white LED designed for SMT surface mounting. The OSCONIQ S 5050 series LED operates at a forward voltage of 5.52 V and delivers a luminous flux between 229 and 253 lm, making it ideal for industrial and horticultural lighting applications.

The single LED in this package features a square lens shape that offers a broad 120° viewing angle, ensuring a uniform light output across wide areas. The tape and reel packaging and SMT design make integration into electronic assemblies efficient for manufacturers seeking scalable LED lighting solutions.

High forward voltage and current capability enable powerful lighting with robust stability for system-level photon efficacy performance. Specially designed phosphor solution enhances on-converted red photons, improving horticultural fixture efficacy.

120° Lambertian radiation pattern supports applications requiring wide light distribution, such as grow lights, architectural installations, and industrial illumination. ESD protection rated at 8 kV according to ANSI/ESDA/JEDEC JS-001 standards ensures longevity and reliability against static discharge events.

Photon flux efficacy rated at 2.86 μmol/J is particularly beneficial in horticulture, where maximizing usable light is critical. Compliant with IEC 62471:2006 safety standards, supporting international norms for optical safety.

Package utilizes coloured diffused silicone resin for optimized emission and durability.

Use cases include horticultural lighting systems, industrial lighting modules, and high-performance LED panels. Integration is suited to both commercial grow installations and advanced optoelectronic projects requiring reliable performance under demanding operating conditions.

The OSCONIQ S 5050 series exemplifies precision engineering from ams OSRAM, with proven quality and reliability for professional applications.
