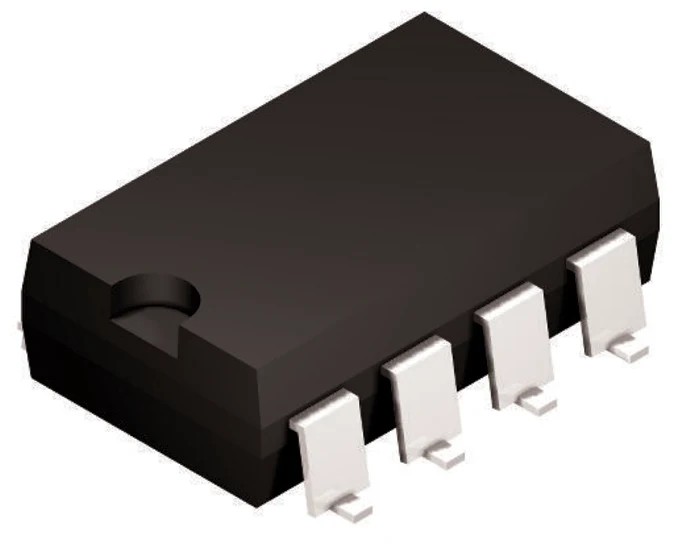

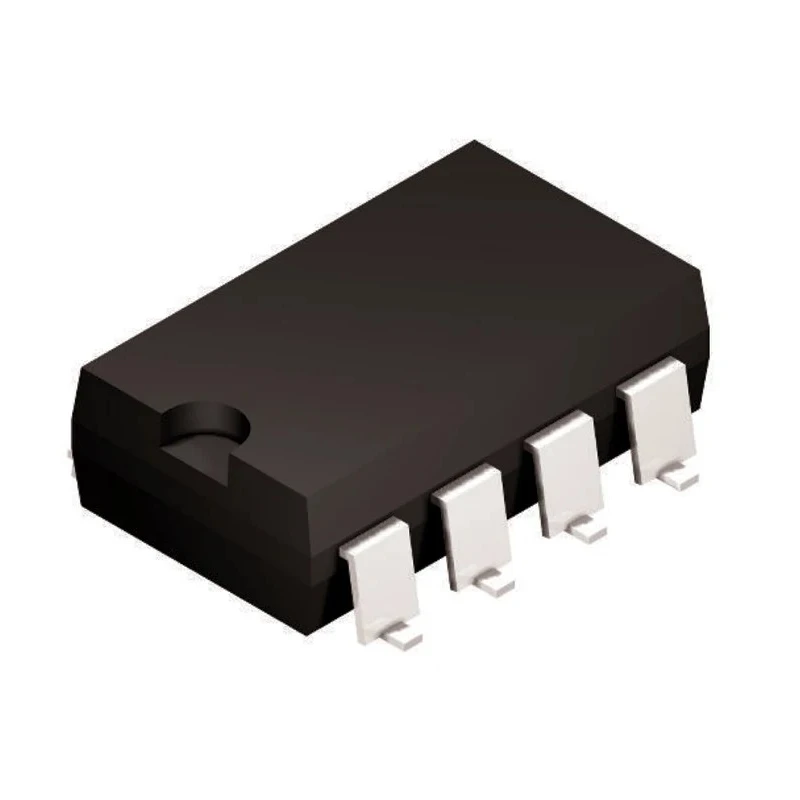

Broadcom DC Input Optocoupler Surface-Mount DIP, Logic Output, 1 Channel, 1.55V, 8-Pin HCPL-2400-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2400-300E |
| Packaging | Tube |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 8mA |
| Number Of Channels | 1 |
| Standards/Approvals | VDE, UL, CSA |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 20ns |
| Typical Fall Time | 10ns |
Key Features
- Provides high isolation voltage of 3.75kVrms for robust signal separation.
- Single channel optocoupler suitable for DC input applications.
- Compact 8-pin DIP package, ideal for integration on PCBs.
- Supports a maximum input current of 8mA for reliable operation.
- Typical rise and fall times of 20ns and 10ns respectively enhance switching speed.
- Approved by VDE, UL, and CSA standards for international compliance.
- Logic output functionality enables easy interfacing with digital circuits.
Product Description
The Broadcom HCPL-2400-300E is a precision DC input optocoupler designed for applications requiring electrical isolation between input and output signals. Featuring a single channel construction in an 8-pin DIP surface-mount form factor, this optocoupler is engineered for high-performance digital signal transmission and industrial PCB integration.
Operating at a maximum forward voltage of 1.55V, the HCPL-2400-300E offers logic output functionality, ideal for use in automation systems, signal interfacing, and microcontroller circuits. The device supports input currents up to 8mA and achieves rapid switching with typical rise and fall times of 20ns and 10ns, respectively.
The product provides an impressive isolation voltage of 3.75kVrms, ensuring safe separation between input and output channels for applications in industrial, laboratory, and commercial electronic systems. With an operating temperature range from -40°C to 85°C, the optocoupler is suitable for harsh environments and critical control applications.
Its surface-mount, 8-pin DIP packaging makes it compatible with automated assembly, supporting efficient production workflows. Compliance with VDE, UL, and CSA international standards ensures dependable operation and quality assurance for customers worldwide.
Typical use cases include industrial automation, signal processing, logic interfacing, equipment monitoring, and safety-critical circuit design. The optocoupler's reliable isolation and digital output capability make it a preferred choice for designers of control systems, power supplies, and communication hardware.
High isolation voltage for safety in industrial PCB layouts. Fast switching speeds for precision applications. Supports DC input and logic level interfacing. Robust performance over a broad temperature range. Approved for use according to VDE, UL, and CSA standards.
Explore more optoelectronic solutions in the Optocoupler category and discover Broadcom's advanced industrial products on EnvMart.
