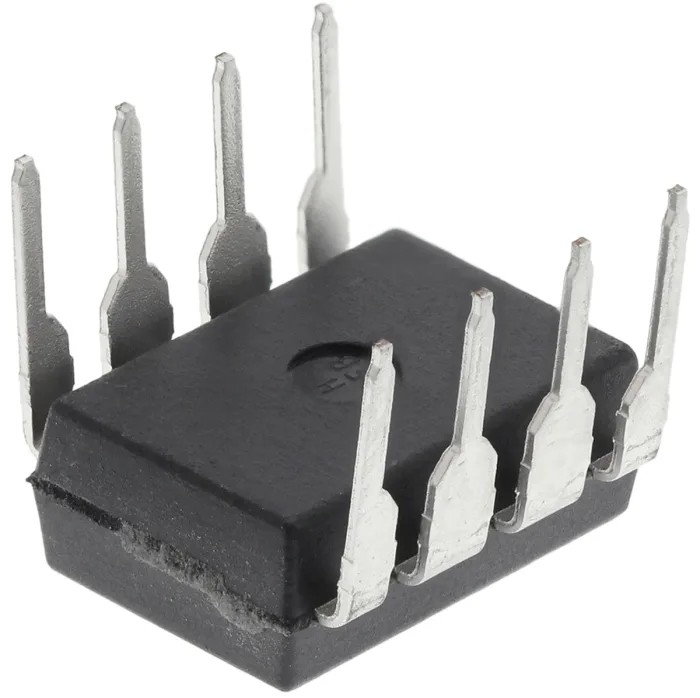

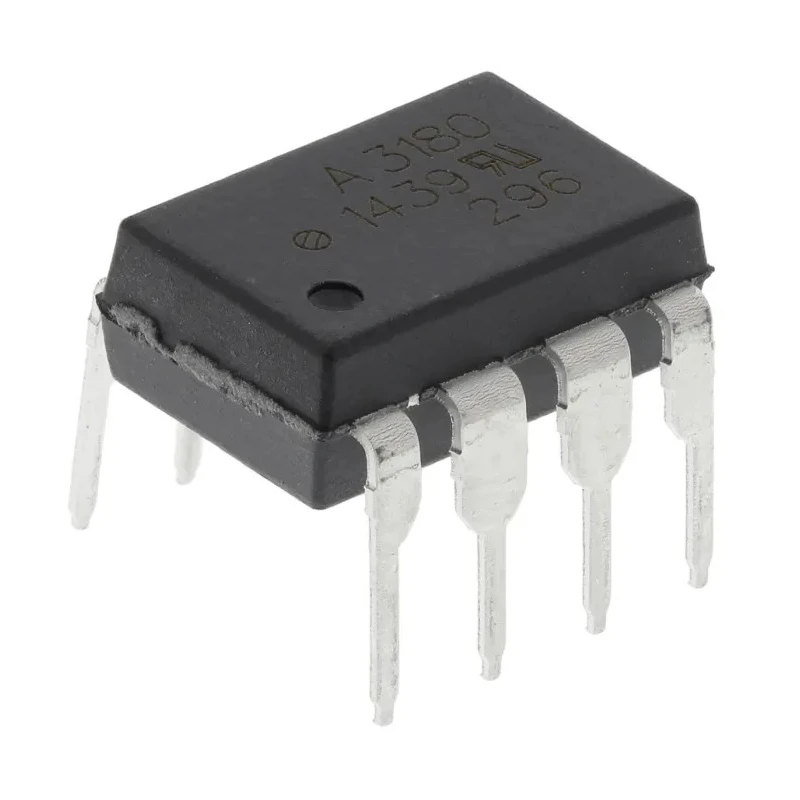

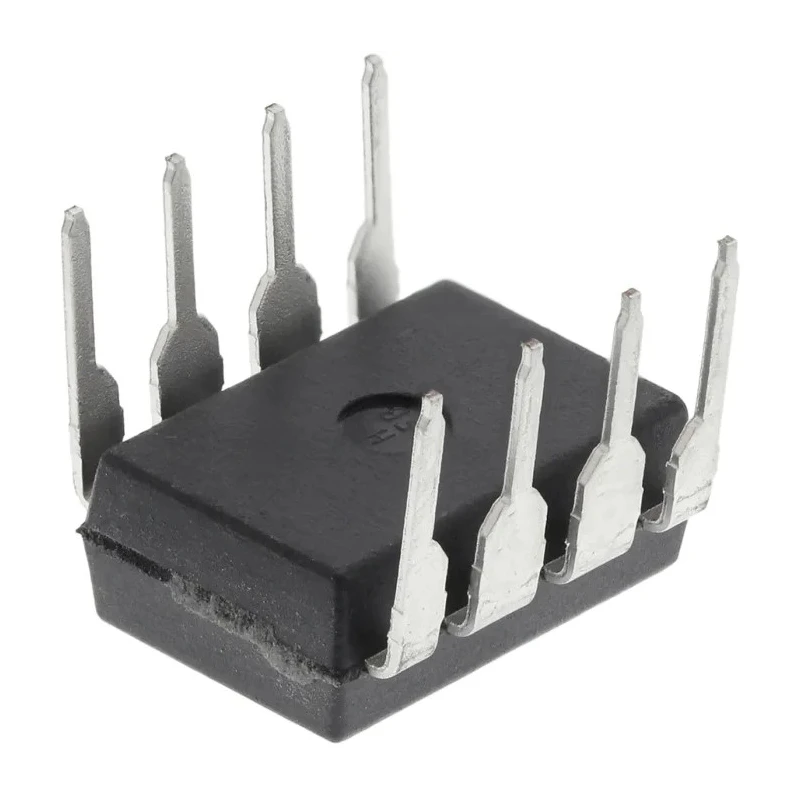

Broadcom DC Input Optocoupler Through Hole 8-Pin DIP HCPL-3180-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-3180-000E |
| Packaging | Tube |
| Mount Type | Through Hole |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 16mA |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2 UL CSA |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 25ns |
| Isolation Voltage | 3750V ac |
Key Features
- This optocoupler provides fast gate switching speed with typical rise and fall times of 25ns each.
- It supports a maximum forward voltage of 1.8V and input current up to 16mA.
- The isolation voltage is rated at 3750V ac for reinforced insulation and reliability.
- It operates reliably within a temperature range of -40°C to 100°C.
- The device includes logic output and meets IEC/EN/DIN EN 60747-5-2 UL CSA standards.
- Designed primarily for motor control and power conversion applications.
- The product is supplied in tube packaging, ready for insertion into machinery.
Product Description
Broadcom HCPL-3180-000E DC Input Optocoupler in a through hole 8-pin DIP package is an industrial-grade isolated gate driver device. It is optimized to drive IGBT and Power MOSFET transistors, ensuring rail-to-rail output and fast gate switching speeds essential for efficient power electronic systems.
This optocoupler offers high Common Mode Rejection (CMR) and reinforced insulation with an isolation voltage of 3750V AC, making it ideal for safety-critical industrial, automotive, and high temperature applications.
Its typical rise and fall times are 25ns, providing swift signal propagation. The device supports a maximum forward voltage of 1.8V and a maximum input current of 16mA, with logic output compatibility.
The HCPL-3180-000E operates effectively over a broad temperature range from -40°C to 100°C, ensuring reliability in harsh environments. This product is compliant with IEC/EN/DIN EN 60747-5-2 and UL CSA standards, assuring quality and safety in electronics manufacturing.
Fast switching speed with 25ns rise and fall times. Reinforced insulation with 3750V AC isolation voltage. Wide operating temperature range from -40°C to 100°C. Optimized for motor control and power conversion circuits. Supplied in tube packaging for easy machinery insertion.
The Broadcom HCPL-3180-000E is specifically suitable for industrial electronics, power modules, motor drives, and other applications requiring electrical isolation between low-voltage control and high-voltage power circuits.
Explore more high-reliability Optocouplers and electronic components in the Broadcom range at EnvMart for your power electronics and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage of this optocoupler is rated at 3750V AC, providing reinforced insulation and reliability for safety-critical applications.
It has typical rise and fall times of 25ns each, allowing for fast gate switching speeds essential in power electronic systems.
This model supports a maximum input current of 16mA, making it suitable for various applications requiring DC input.
The device operates reliably within a temperature range of -40°C to 100°C, ensuring functionality in harsh environments.
It is supplied in tube packaging, which facilitates easy insertion into machinery during installation.
The device meets IEC/EN/DIN EN 60747-5-2 and UL CSA standards, ensuring quality and safety in electronics manufacturing.
The maximum forward voltage supported by this model is 1.8V, which is critical for its operation in various circuits.
This optocoupler features 8 pins, conforming to the standard DIP package type for easy integration into electronic circuits.
It is designed for through hole mounting, which is suitable for various PCB configurations and applications.
This model is primarily designed for motor control and power conversion applications, providing reliable electrical isolation.
The HCPL-3180-000E belongs to the HCPL series, which includes various isolated gate driver devices optimized for power electronics.
It includes logic output compatibility, making it suitable for interfacing with digital control systems in electronic applications.
