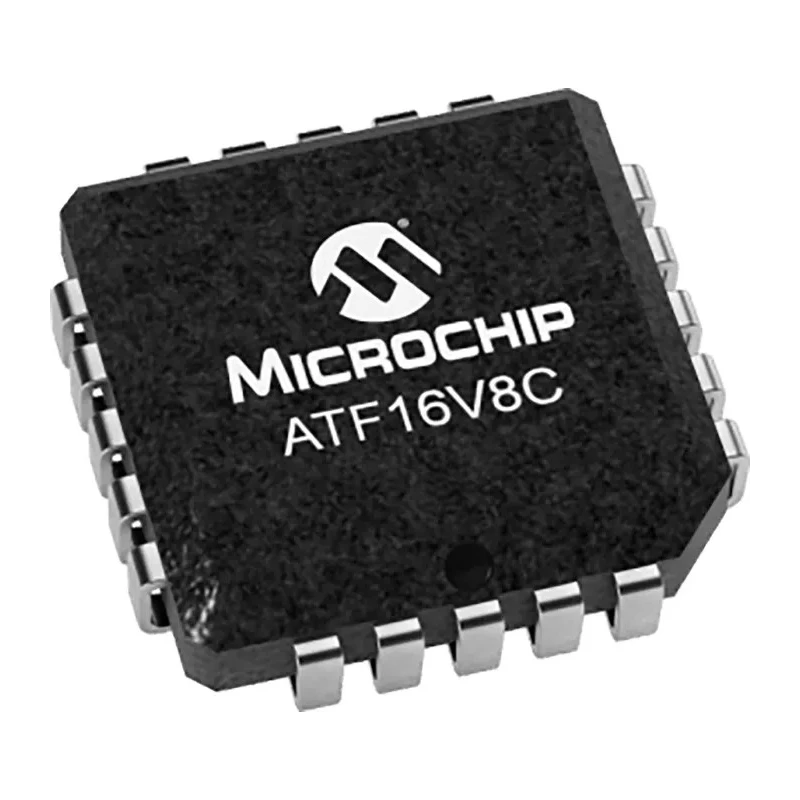

Microchip Simple Programmable Logic Device 8 Macro Cells, 18 I/O, 125 MHz In System Programmability ATF16V8C-7JU

Microchip ATF16V8C-7JU is a high-performance simple programmable logic device (SPLD) built on proven electrically erasable flash memory technology. It consists of 8 macro cells and 18 user input/output pins, delivering a maximum internal frequency of 125 MHz and ensuring high-speed operation with a maximum propagation delay time of 5 nanoseconds.

The device provides in-system programmability and supports reprogrammability, making it highly flexible for iterative design processes in industrial, commercial, and laboratory electronics applications. The SPLD comes in a surface mount PLCC package with 20 pins, offering a compact footprint suitable for modern PCB designs.

Operating voltage ranges from 4.5V to 5.5V, compatible with CMOS and TTL logic levels. It features a low power 100 μA pin controlled power-down mode that helps in designing energy-efficient electronic systems.

Temperatures for use range from -40°C to 85°C, making it suitable for industrial environments. The device adheres to industry standards and can emulate many 20-pin PAL architectures, providing compatibility with legacy designs and facilitating upgrades.

Applications include industrial automation, embedded system development, digital logic design, and other semiconductor-based electronic circuit implementations where customizable logic is required.

High-performance EECMOS programmable logic device. 8 macro cells with 18 user I/Os for versatile logic configurations. 125 MHz maximum internal frequency enabling fast logic switching. In-system programmability with reprogramming capability for design flexibility.

Surface mount PLCC package with 20 pins for space saving. Operating temperature support from -40°C to +85°C for industrial grade use. Low power consumption with 100 μA pin controlled power-down mode. Compatible with both CMOS and TTL inputs and outputs.

Industry standard architecture emulating 20-pin PAL devices.

This product is ideal for engineers and designers working in industrial electronics, electronic component manufacturing, embedded control systems, and related fields. It facilitates fast, flexible logic design and prototyping.
