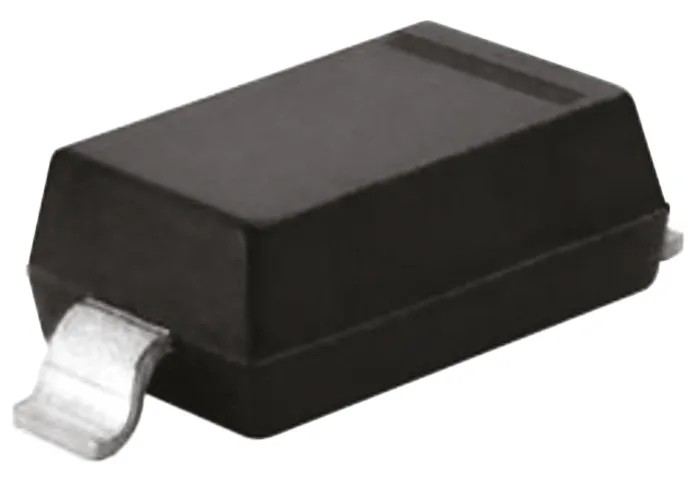

STMicroelectronics Schottky Diode 60 V, 500 mA, 2-Pin SOD-123 Surface Mount STPS0560Z

The STMicroelectronics STPS0560Z is a compact Schottky diode engineered for reliable rectification and efficient performance in modern electronic circuits. Featuring a maximum continuous forward current of 500 mA and a peak reverse repetitive voltage of 60 V, it serves as a versatile component for power management and signal protection in a wide array of applications.

Designed for surface mounting, the SOD-123 package facilitates integration into densely populated PCBs, reducing assembly time and ensuring a robust fit for automated production lines. The diode employs Schottky barrier technology, resulting in a low forward voltage drop of 0.5 V - making it ideal for applications requiring minimal power loss and fast switching speeds.

With a single configuration and two-pin design, the STPS0560Z simplifies layout and enhances mechanical reliability. Its peak non-repetitive forward surge current capability of 5.5 A allows it to withstand brief overload events, while the low peak reverse current (50 μA) and wide operating temperature range (-65°C to +150°C) guarantee stable operation under demanding conditions.

The dimensions are highly compact (2.85 mm × 1.7 mm × 1.35 mm), supporting high density PCB layouts and portable devices. Typical use cases include power supplies, voltage clamping, reverse polarity protection, and signal rectification in industrial, manufacturing, and commercial electronics.

Efficient Schottky diode design reduces power dissipation and improves switching performance. Broad compatibility with industrial, laboratory, and consumer electronics for signal and power rectification. Reliability proven for wide temperature operation, supporting harsh environmental conditions.

Optimal for production volumes with supplied reels for automated insertion. Explore more STMicroelectronics semiconductors and Schottky Diodes at EnvMart for your PCB, manufacturing, and power electronics needs.
