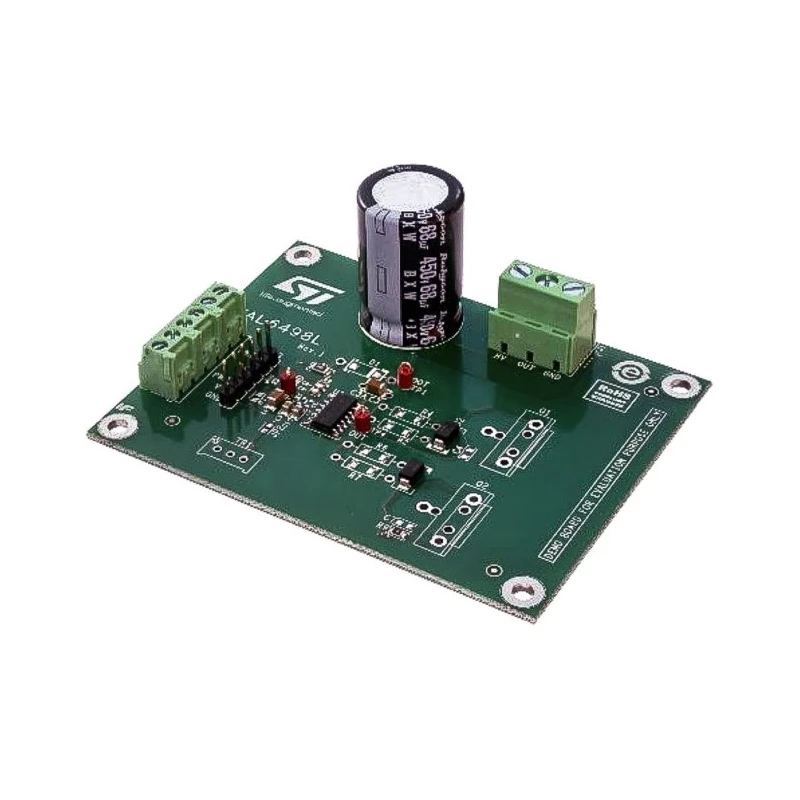

STMicroelectronics MOSFET Gate Driver EVAL6498L, 2.5 A Output Current, 14-Pin SO Package, 5V TTL/CMOS Input

STMicroelectronics EVAL6498L is an advanced MOSFET gate driver designed for industrial, electronics, and power management applications, supporting a maximum output current of 2.5A and operating from 3.3V or 5V TTL/CMOS input signals. The device is manufactured with BCD6 OFF-LINE technology, enabling high-voltage handling in a single-chip, half-bridge configuration. Its 14-pin SO package allows easy mounting onto printed circuit boards in space-constrained environments.

This gate driver incorporates an integrated bootstrap diode and features such as adjustable dead time, making it highly suitable for medium and high-capacity power MOSFET and IGBT circuits. The robust driver current specification - 2A source and 2.5A sink - ensures reliable signal transmission for switching devices, while UVLO protection on both high-side and low-side guarantees safe operation under varying supply conditions.

Noise immunity is enhanced thanks to 3.3V and 5V TTL/CMOS input compatibility with hysteresis, and the device achieves up to 50 V/ns immunity across its full temperature range for stable performance. The EVAL6498L significantly reduces the bill of material and enables simplified PCB layouts for complex systems.

Suitable application domains include clock line drivers, DC/DC converters, motor controls, and switch mode power supplies, making this driver a versatile component for industrial automation, power supply units, electronics manufacturing, HVAC control and automotive electronics.

Compliance with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards ensures safe handling and operation in sensitive environments. The product's compact form factor, flexible design and integrated features contribute to fast development cycles and easier maintenance.

Supports demanding gate drive requirements in industrial and laboratory environments. Integrated design streamlines PCB layout and reduces engineering complexity. Built-in protection and reliability features reduce system downtime risks.

Versatile compatibility for multiple voltage logic interfaces. Utilized in advanced power conversion, motor drive, and switching applications. Explore more high-performance MOSFET Gate Drivers from STMicroelectronics and related categories on EnvMart for optimally integrated power management solutions.
