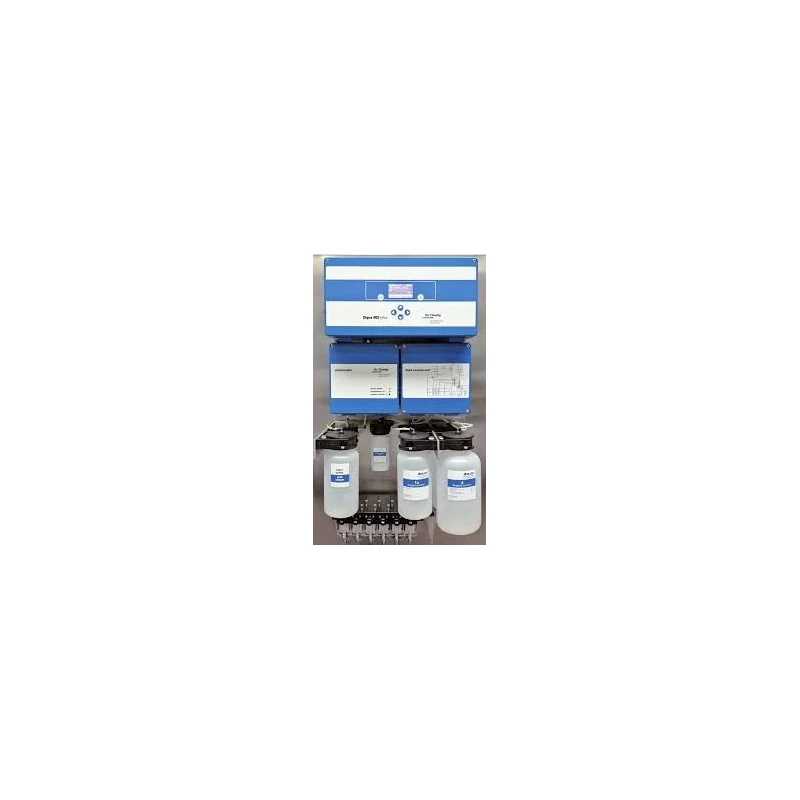

Silica Analyzer Low Range Photometric Type

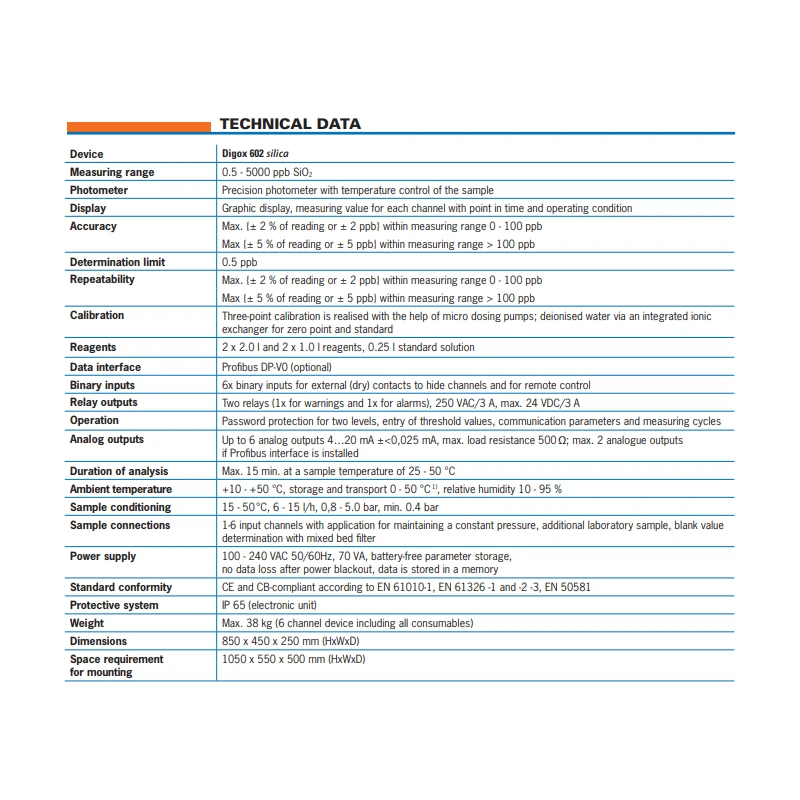

Specifications
| Accuracy | Max. ( 2 % of reading or 2 ppb) within measuring range 0 - 100 ppb Max ( 5 % of reading or 5 ppb) within measuring range Greater Than 100 ppb |
|---|---|
| Measuring range | 0.5 - 5000 ppb SiO2 |
| Calibration | Three-point calibration is realised with the help of micro dosing pumps| deionised water via an integrated ionic exchanger for zero point and standard |
| Photometer | Precision photometer with temperature control of the sample |
| Device Digox | 602 silica |
Key Features
- Very low reagent consumption, one reagent set (approx. 3 liters) lasts for at least 5000 measurings or 8 weeks at the highest measurement frequency
- Individually selectable sequence and measuring frequency for each channel. Time frame can be adjusted from the minimum measurement time up to a measuring interval of 96 hours
Product Description
The determination of dissolved silicic acid (ortho-silicate) in the water steam cycle is of great importance for the operation and plant safety inpower plants. In addition to the determination of ortho-silicate in the livesteam in order to avoid deposits or crystallization inside the turbine, it ispossible to detect an aperture in the anion filter or mixed bed exchanger.The Digox 602 silica is constantly being developed and is in accordancewith the physical-chemical measuring method of the new VGB guidelinesS-006 for the quantitative detection of dissolved silicic acid.A photometric procedure with a detection limit of 0.5 ppb is used whichis ideally suited for the determination of silicic acid in ultra pure powerplant water. Photometric0.5 to 5000 ppb SiO2 Output Signal: 4-20mA 100-240 VAC 50/60 Hz, 70 VAShort measuring sequence <15 minEnclosure IP 65
- Remote control by means of 6 external binary contacts possible (calibration commands, channel selection, channel hide, grab sample)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this model is from 0.5 to 5000 ppb SiO2.
It features a precision photometer with temperature control of the sample to ensure accurate measurements.
Calibration is achieved through a three-point calibration process using micro dosing pumps and deionised water via an integrated ionic exchanger for zero point and standard calibration.
The output signal is 4-20 mA, which is standard for many industrial applications.
It operates on 100-240 VAC at 50/60 Hz with a power consumption of 70 VA.
The measuring sequence is short, taking less than 15 minutes to complete.
The device has an IP 65 enclosure rating, indicating it is protected against dust and water jets.
Yes, it allows for remote control through six external binary contacts for various functions such as calibration commands and channel selection.
It has very low reagent consumption, with one reagent set lasting for at least 5000 measurements or 8 weeks at the highest measurement frequency.
It is specifically designed for the determination of dissolved silicic acid in the water steam cycle, particularly in power plants to avoid deposits or crystallization inside turbines.
The detection limit for this model is 0.5 ppb, making it suitable for measuring silicic acid in ultra-pure power plant water.
