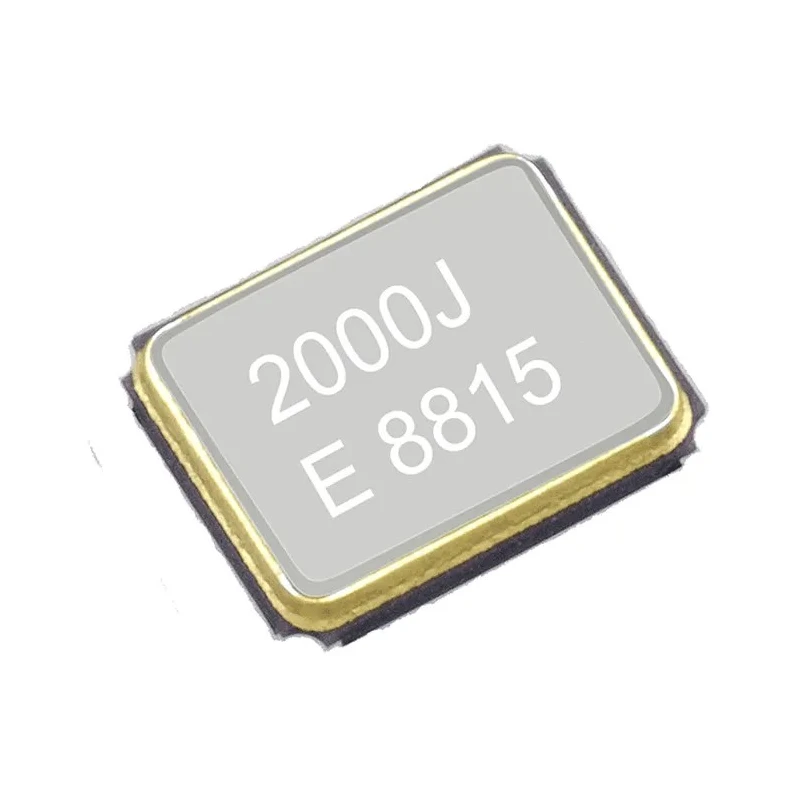

Epson 27.12 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin TSX-3225 3.2x2.5x0.6 mm X1E000021080512

The Epson X1E000021080512 is a high-precision 27.12 MHz crystal unit designed for surface mounting on printed circuit boards. It belongs to the TSX-3225 series which is renowned for its low profile and stable frequency output with a tolerance of ±10 ppm. With a compact ceramic package measuring 3.2 by 2.5 by 0.6 millimeters, this 4-pin crystal unit offers excellent integration capabilities in modern electronic devices.

This crystal unit operates at a fundamental overtone order and features a load capacitance of 9 pF, which helps in providing precise frequency control essential for timing applications. Its series resistance of 40 ohms supports reliable oscillation stability across a wide operating temperature range from -40°C to 85°C, making it suitable for demanding industrial and consumer electronics environments.

Designed for compliance with REACH and RoHS regulations, the Epson crystal unit assures environmentally responsible manufacturing practices. This component is ideal for industrial, communication, and computing applications including mobile phones, Bluetooth modules, wireless LAN ISM band radios, and microprocessor unit clock references. Its surface mount form factor optimizes PCB space usage and enables automated assembly for improved production efficiency.

The compact size and robust specifications of the X1E000021080512 crystal unit make it an excellent choice for engineers seeking a reliable frequency source with tight tolerance and environmental compliance.

The crystal unit operates at a standard frequency of 27.12 MHz with a tolerance of ±10 ppm. It has a compact surface mount design with dimensions of 3.2 mm length, 2.5 mm width, and 0.6 mm height. The load capacitance is rated at 9 pF, suitable for precise frequency control applications.

The unit supports operation in temperature ranges from -40°C to a maximum of 85°C. Series resistance is 40 ohms, ensuring stable oscillation performance. The overtone order is fundamental, indicating it operates at the base resonance frequency.

It is compliant with REACH and RoHS environmental standards ensuring eco-friendly manufacturing. Typical applications include mobile phones, Bluetooth devices, WLAN ISM band radios, and MPU clock sources. Discover a wide range of Crystal Units and other electronic components on EnvMart to support your industrial and commercial electronics projects.
