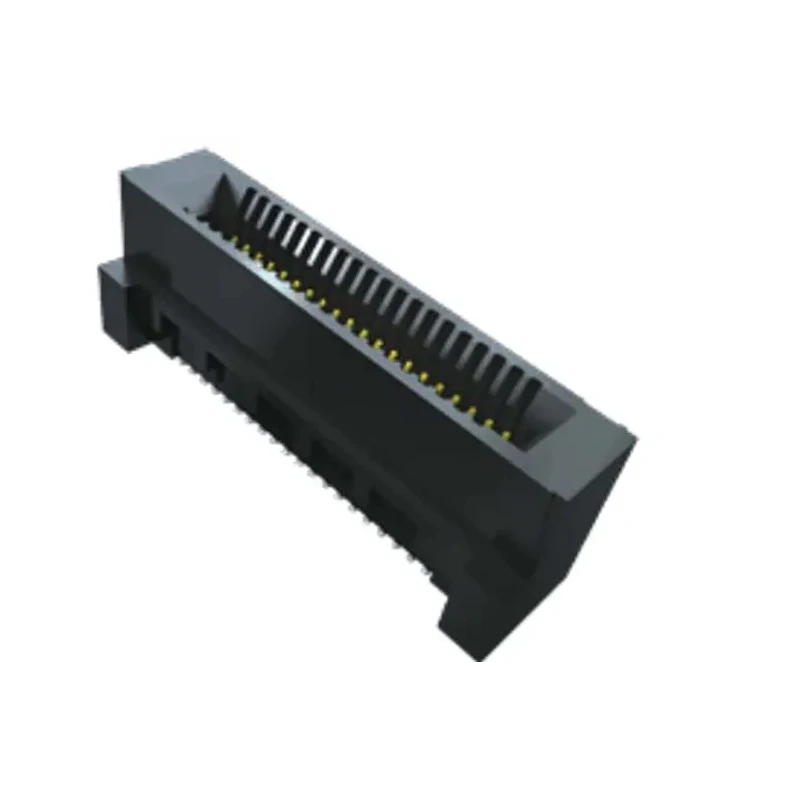

Samtec HSEC8 Series Vertical Edge Connector Female, Surface Mount, 10 Contacts, 0.8 mm Pitch, 1 Row, Solder Termination
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- Vertical orientation for PCB edge connection.
- Constructed with Beryllium Copper alloy contacts plated in gold for reliable conductivity.
- Supports a current rating of 2.8A per contact.
- Designed for a card thickness of 1.6 mm and PCIe card type compatibility.
- Operates reliably within temperature range from -55°C to 125°C.
- Housing made from durable Liquid Crystal Polymer materials.
- Terminated via solder method for secure mounting.
- Ideal for high-speed edge card connections in industrial and commercial electronics.
Product Description
Samtec HSEC8 HSEC8-125-01-L-DV-A series vertical edge connector female is a high-quality connector designed for surface mount applications requiring reliable electrical and mechanical performance. It features 10 gold-plated Beryllium Copper alloy contacts arranged in a single row with a 0.8 mm pitch, ensuring precise and secure connections suitable for PCIe cards and similar edge applications. The connector supports a continuous current of 2.8A per contact and withstands operating temperatures between -55°C and 125°C.
The housing of this edge connector is made from black Liquid Crystal Polymer, providing excellent insulation and mechanical stability. Its design caters to cards with a thickness of 1.6 mm and is terminated by soldering for robust attachment to printed circuit boards. Operating voltage is rated at 240V which makes it suitable for diverse electronic and industrial environments.
This connector series is lead-free and RoHS compliant, offering environmentally responsible manufacturing standards. The HSEC8 series is well-suited for high-speed data transmission in industrial electronics, telecommunications, computing, and automation equipment. Its vertical orientation and surface mount construction facilitate compact PCB layouts and ease of assembly.
Vertical orientation edge connector for PCB integration. Gold plated contacts ensure excellent conductivity and corrosion resistance. Rated for 2.8A current per contact for reliable operation. Made with durable Liquid Crystal Polymer housing.
Operates across a wide temperature range suitable for harsh environments. Supports 1.6 mm thick PCIe type cards. Surface mount termination for secure and stable assembly. RoHS compliant and lead free for regulatory compliance.
Ideal for industrial, commercial, and electronic applications.
This Samtec HSEC8 Edge Connector offers dependable electrical connections for critical electronic systems. Explore a wide range of connectors and related products in EnvMart’s Electronics Components category to find compatible parts and accessories to enhance your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current rating of 2.8A per contact.
The operating voltage is rated at 240V, making it suitable for various electronic applications.
The contacts are arranged with a pitch of 0.8 mm.
It features gold-plated Beryllium Copper alloy contacts and a housing made from Liquid Crystal Polymer.
It operates reliably within a temperature range from -55°C to 125°C.
This model has a total of 10 contacts.
It uses a solder termination method for secure mounting.
It is designed to support a card thickness of 1.6 mm, suitable for PCIe cards.
The connector features a vertical orientation for PCB integration.
Yes, it is lead-free and RoHS compliant, adhering to environmentally responsible manufacturing standards.
It is well-suited for high-speed data transmission in industrial electronics, telecommunications, computing, and automation equipment.
This edge connector supports surface mount installation, facilitating compact PCB layouts.
