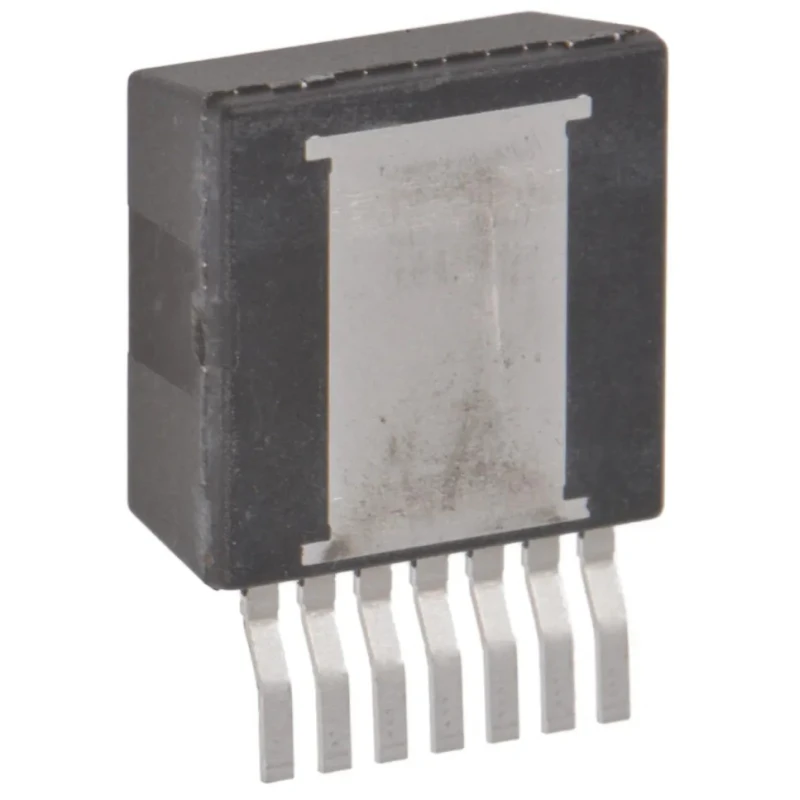

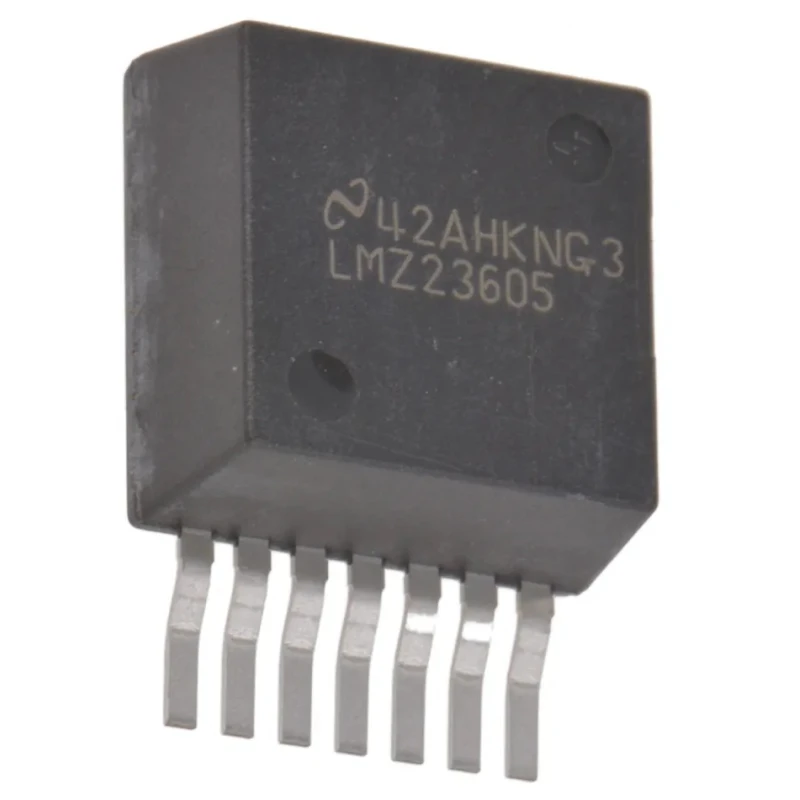

Texas Instruments Surface Mount DC/DC Converter 6V Output Voltage 5A Output Current 30W Power LMZ23605TZ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments DC/DC Converter, Surface, 6V |
| Brand | Texas Instruments |
| Power | 30W |
| Efficiency | 92% |
| Length | 10.16mm |
| Model | LMZ23605TZ/NOPB |
| Depth | 4.57mm |
| Width | 9.85mm |
| Mount Type | Surface |
| Series | LMZ23605 |
| Output Current | 5A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-PMOD |
| Load Regulation | 1 mV/A |
| Number of outputs | 1 |
| Ripple and Noise | 9mV Pk-Pk |
| Maximum Input Voltage | 36V |
| Line Regulation | ±0.02 % |
| Standards/Approvals | JEDEC, ESDA, RoHS, REACH, ANSI |
| Minimum Input Voltage | 6V |
| Number of Pins | 7 |
| Output Voltage 1 | 6V |
Key Features
- Provides high efficiency of 92 percent for reliable power conversion.
- Features a single output with low ripple and noise of 9mV peak to peak.
- Supports a maximum input voltage of 36V and minimum input voltage of 6V.
- Includes a 7-pin TO-PMOD package for compact PCB integration and surface mount.
- Operating temperature range up to 125°C ensures durability in demanding environments.
- Conforms to JEDEC, ESDA, RoHS, REACH, and ANSI standards for quality and safety.
- Physical dimensions of 10.16mm length, 9.85mm width, and 4.57mm depth allow space-efficient installation.
- Line regulation of ±0.02% and load regulation of 1 mV/A ensure stable voltage performance.
Product Description
Texas Instruments LMZ23605TZ/NOPB is a surface mount DC/DC converter designed to provide a stable 6V output voltage with a maximum output current of 5A and power rating of 30W. This device is engineered for efficient energy conversion with an efficiency rating of 92%, minimizing power losses and heat generation.
The converter supports a wide input voltage range from 6V to 36V, suitable for various power supply configurations and load demands. Featuring low ripple and noise levels at 9mV peak-to-peak, it ensures clean power output for sensitive electronics.
Incorporating a 7-pin TO-PMOD package, the LMZ23605TZ/NOPB is optimized for surface mounting on printed circuit boards, enabling space-conscious designs. Its robust operating temperature range up to 125°C makes it ideal for industrial, commercial, laboratory, and electronic manufacturing applications.
This component meets multiple industry standards including JEDEC, ESDA, RoHS, REACH, and ANSI, guaranteeing high quality, safety, and environmental compliance. The precise line and load regulation (±0.02% and 1 mV/A respectively) ensure consistent voltage performance under variable loads.
High energy efficiency at 92% reduces operating costs and thermal output. Compact and lightweight with dimensions 10.16 x 9.85 x 4.57 mm allows flexible integration. Wide input voltage range supports diverse power sources and battery voltages.
Low ripple and noise suitable for sensitive analog and digital circuits. Reliable performance in environments up to 125°C suitable for industrial settings. Certified to key standards ensuring product reliability and regulatory compliance.
This DC/DC converter is widely used in industrial automation, power management systems, instrumentation, telecommunications equipment, and embedded electronics requiring efficient voltage regulation in compact form factors.
Explore a broad range of DC/DC Converters and related electronic components through EnvMart for advanced power solutions from leading manufacturers such as Texas Instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMZ23605TZ/NOPB provides a stable output voltage of 6V with a maximum output current of 5A.
This converter supports a maximum input voltage of 36V and a minimum input voltage of 6V.
It has an efficiency rating of 92%, which helps minimize power losses and heat generation during operation.
The physical dimensions of this model are 10.16mm in length, 9.85mm in width, and 4.57mm in depth.
The output ripple and noise level is 9mV peak-to-peak, ensuring clean power output for sensitive electronics.
This model operates effectively in temperatures up to 125°C, making it suitable for demanding environments.
It comes in a 7-pin TO-PMOD package, optimized for surface mounting on printed circuit boards.
The line regulation is ±0.02%, and the load regulation is 1 mV/A, ensuring stable voltage performance under variable loads.
It conforms to multiple standards including JEDEC, ESDA, RoHS, REACH, and ANSI, ensuring quality and safety compliance.
This model is widely used in industrial automation, power management systems, telecommunications equipment, and embedded electronics.
With an efficiency of 92%, it reduces operating costs by minimizing power losses and thermal output during operation.
The LMZ23605TZ/NOPB has a power rating of 30W, making it suitable for various power supply configurations.
